Speed

32 KM/H
20 MP/H

Rated Power

500 W

Max Torque

80 Nm

Weight

20 kg
42 lbs

Max Range

Light weight commuter

ENVO Stax

Premium, Sleek, Affordable

The ENVO Stax is an electric bicycle that offers premium features and specifications, yet is priced affordably, making it accessible to a wider range of riders. Despite its affordable price point, the ENVO Stax boasts a high-quality build, advanced components, and exceptional performance. It provides riders with a comfortable, efficient, and enjoyable riding experience that rivals that of much more expensive e-bikes.

ENVO Stax is designed to stylish and streamlined, all the welds are smoothened, headlight is directly integrated in the bike frame, and all the cables are hidden and routed internally.

The ENVO Stax electric bike is capable of generating a whopping 500W of power, which is twice the output of an Olympic cyclist. This allows the rider to accelerate faster, tackle steeper hills, and travel longer distances with less effort.

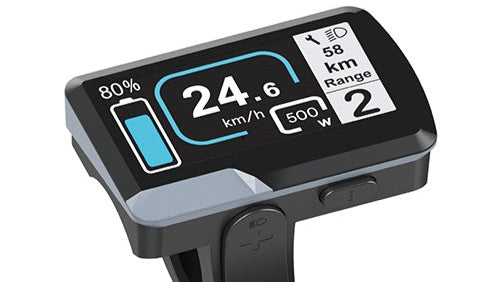

Intelligent Display & Smart Diagnostics

The ENVO Stax features a Smart Display with Bluetooth for easy ENVO app connectivity. Real-time Battery Cell Data and Smart Charging Communication enhance safety and battery life.

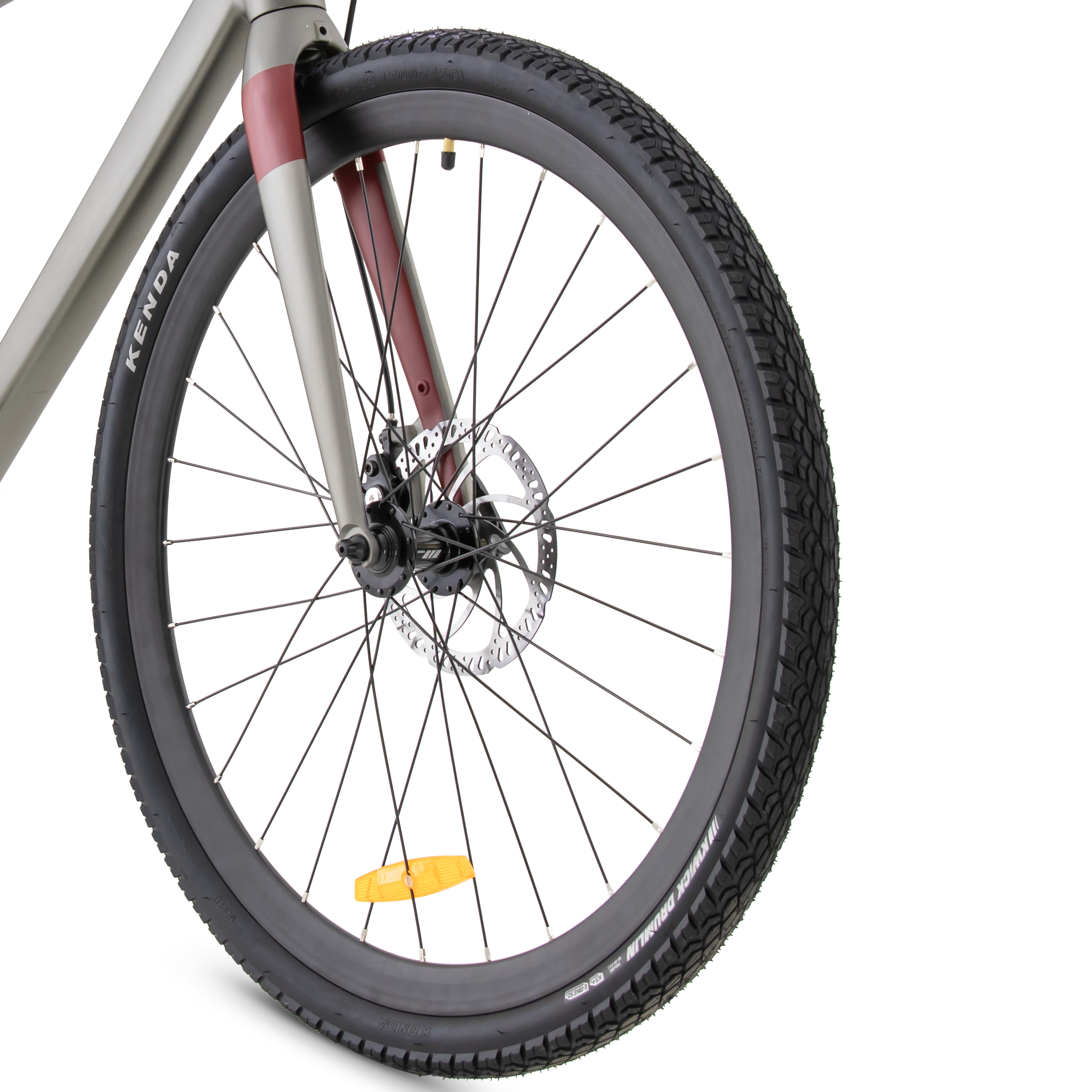

700C tires

Stax features 700C tires that have a width of 40mm, this helps to reduce rolling resistance and allows riders to achieve high speeds with ease providing unmatched performance and efficiency. This means you can cover longer distances in a shorter amount of time without sacrificing comfort.

ENVO STAX Features

CANBUS

Introducing the new ENVO Stax with advanced CANBUS for smarter, safer riding. Monitor battery health and diagnostics on your display. Battery communicates with charger for safer charging.

BATTERY PACK

Battery is removable, range up to 100 km / 62 miles per charge, can be charged on or off bike frame with CC-CV smart Li-Ion charger. ENVO Battery has BMS for safety, increases life. Cells optimized for freezing temps.

SAFETY FIRST - UL2849

Stax is certified for UL2849 which makes it one of the most safe bikes on the market. We use premium components, including LG/Panasonic Li-ion cells. Our bikes are subject to rigorous Quality Assurance and Quality Control processes ensure a defect-free product.

TORQUE SENSOR

Enjoy next-level ride performance with advanced Torque Sensor technology, providing natural, intuitive power delivery.

HEADLIGHT

The ENVO Stax is fitted with high efficiency and bright integrated LED 40 LUX headlight powered by the main battery and controlled by a keypad on the handlebar.

FRAME

ENVO Stax features a solid, super lightweight, and stylish frame. This frame is made of 6061Aluminum Alloy which is treated with T6 heat treatment. ENVO uses a technique called hydro-forming to get the beautiful curve and ergonomic geometry.

HYDRAULIC DISK BRAKE

Top of the line hydraulic disk brakes equipped with electric cut-off sensors provide more safety to the bike as well as the rider.

ENVO Stax Sizing Chart

Measurements

AEffective Seat Tube Length18.1"46.0cm
BEffective Top Tube Length23.0"58.3cm
CTire Diameter27.5"69.9cm
DMinimum Seat Height34.2"87.0cm
EMaximum Seat Height40.1"102.0cm
FStepover Height27.1"69.0cm

Sizing Chart

1.Height5'5"–6'5"1.65–1.95m
2.Inseam30"–37"76–93.8cm

Seen & Loved By

ENVO STAX Pro

ENVO STAX Release The Best Road E-bike

Stax pro review

Almost-perfect ebike that looks like a regular bike

ENVO Stax Review

Have you seen a battery like this?

Downloads and Support

Download Manuals Support

Product details

Full Specs
  • Frame: 700C Stax, hydro-formed 6061-T6 aluminum alloy, smooth welds, painted, internal cable routing
  • Fork: Rigid, thru-axle, painted
  • Headset: NZX-2 | Φ28.6xΦ56xΦ39.8, internal cable routing
  • Handlebar: MTB-AL-345BT, W=680mm x φ31.8mm, 9° back sweep
  • Stem: TDS-D299N-8, Φ28.6 x Φ31.8, 105mm
  • Grips: G324 TPR, all black
  • Brake set: HD-E3110 hydraulic flat-mount calipers, 160mm rotors, with power cutoff
  • Shifter: LTWOO SL-A0916-9W
  • Rear derailleur: LTWOO RD-GR5009, 9-speed
  • Freewheel: LTWOO 9-speed, 11-42T
  • Chain: CT-9, 1/2″ x 3/128″ x 116L
  • Chainwheel: 42T, 170mm crank, torque-sensor fit
  • Bottom bracket: LDS torque sensor, 73mm
  • Sensor: Torque sensor (pedal-assist only, no throttle)
  • Pedals: Wellgo B087DU alloy, 9/16″, with reflectors
  • Motor: XF08C brushless 36V rear hub
  • Controller: MINI6T controller, 36V, 17±1A, torque-sensor version
  • Battery: 36V 12.8Ah LG cells (461 Wh), UL-certified
  • Charger: 36V/2A, US DC2.1, UL certificate
  • Display: KD386 Key-Disp LCD, 36V, Bluetooth
  • Front hub: KT-MSCF ID12x100, thru-axle, 28H
  • Rim: J16F 700C x 1.95, front 28H / rear 36H
  • Tire: OBOR 700C x 40C, w3134 pattern, Presta valve 60mm, brown sidewall
  • Saddle: Vivo Ergo 1217HRN, 269 x 145mm
  • Seat clamp: Locking, included
  • Lighting: LED headlight integrated into the frame; AA-battery tail light
  • Kickstand: KW-108, included
  • Bell: SX99B-2BK, included
  • Included: HDP-7 derailleur protector, chainstay protector
Stax Pro Vs Stax

Both the Stax and Stax Pro are electric road bikes that are designed to look and feel like traditional road bikes. Both use a lightweight hydro-formed aluminum frame and a rear hub motor, but they are built on different frame geometries. They also both come with a 460Wh battery that provides up to 100 km of range.

Differences

The main differences between the Stax and Stax Pro are:

Suspension: The Stax Pro comes with a suspension mono-shock fork, which can help to absorb bumps and vibrations from the road. The Stax does not have a suspension fork.

Seatpost Clamp: Both the Stax and the Stax Pro come with a locking seatpost clamp as standard.

Adjustable Handlebar: Stax Pro comes with adjustable handlebar allowing you to finetune the reach and stack.

Tire Size: Stax Pro comes with 27.5'' hydbrid tires compared to 700C road tires for Stax.

Battery: The Stax Pro allows you to use a dual battery option, which can extend the range of the bike to up to 200 km. The Stax does not have this option.

Accessories: The Stax Pro comes with all the accessories assembled, including a rear rack, fenders, and kickstand. The Stax includes a kickstand and bell; a rear rack and fenders are available separately.
