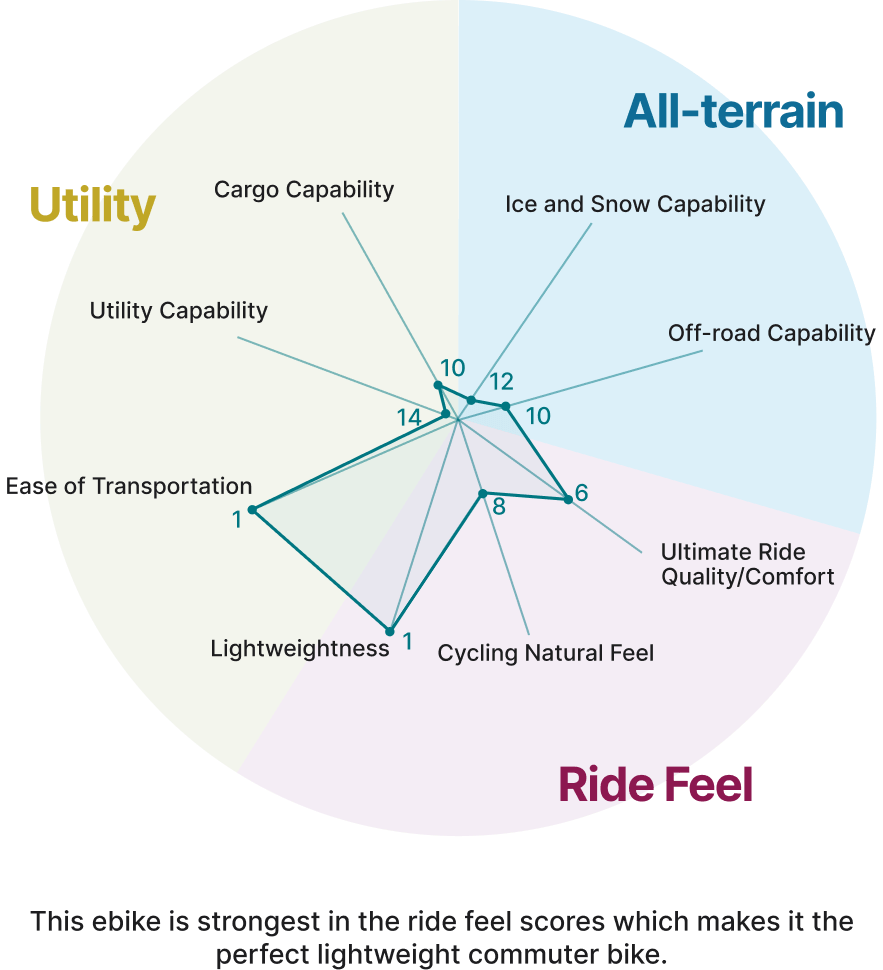

Specs RatingSee how the Lynx 16" ranks in our lineup
GEARED HUB MOTOR
Small sized motor with a very simple structure for light weight and a long-lasting life. Motor provides a very high efficiency and a stress-free ride with a high power. Motor gives out a maximum 350W power providing 40 newton-meter max toque making hills flat.
E-ASSIST SYSTEM
This electric bicycle features a pedal assist sensor which has optimized torque emulation software. The e-assist system eliminates the road grade by selecting the assist level from 0 to 5 through the keypad on handlebar. There is also a power on demand throttle which lets you ride on electric motor only without pedalling. The LCD interface gives access to all monitoring and setting features such as ODO, speed, battery charge level, as well as diagnostics in case of a failure through which you can fix issues yourself using the manuals or with the help of our technical customer service.
BATTERY PACK
The stylish, removable, A-grade Li-Ion battery pack is the key feature of ENVO Lynx-16 where although the battery is hidden in an structural part (seat post) making a clean and minimal design, it is simply accessible for replacement, transport and repairs. It provides average 20km / 12miles round trip range on level 4-5 of assist or more than 40km / 25 miles on level 1-2.
FRAME
The ENVO Lynx is built with a solid, super lightweight, stylish and unisex aluminium alloy frame. The frame is suitable for people in all form of heights. It is capable for a rider up to 300lbs and offering an ergonomic shape, which makes it easy for the rider to get on and off. The frame is specially designed to minimize all the vibrations and noise from the drive-system, the wheelbase optimized for most compact foldable size while providing a smooth and stable high speed, pleasurable ride on paved and unpaved roads.
HANDLEBAR STEM

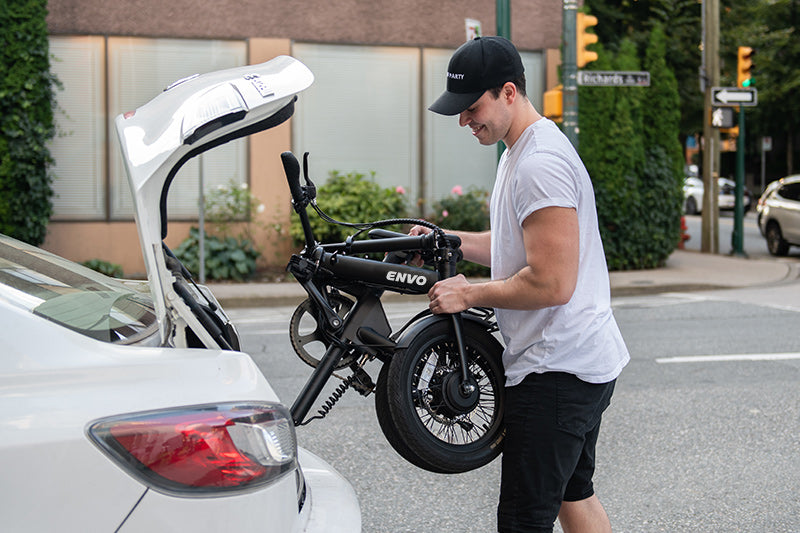

Telescopic adjustable height and QR detachable handle bar brings the most compactness when folded without compromising the ergonomic riding posture.
DISK BRAKE
Making it lighter did not compromise the top of the line disk brakes, equipped with electric cut-off sensors for more safety.
REAR RACK
Attach a full size pannier for errands and commutes.
Weight
14.5 Kg (31.9lbs)
Battery
36V 6.4Ah LG/Panasonic
Motor
Geared hub motor, 250W rated, 40Nm torque
Frame
Custom Drawn T6-Aluminum Foldable e-bike
Cassette/Freewheel
1-Speed Freewheel
Tires
City 16″ x2″
-
SIZING CHART
The top tube of the bicycle and the ground plane: 19″ (48.26 cm)
Note: This is a non-traditional bike so minimum leg length does not necessarily guide the bike sizing. We suggest minimum height of the rider to be 5 feet and maximum height to be 6 feet.

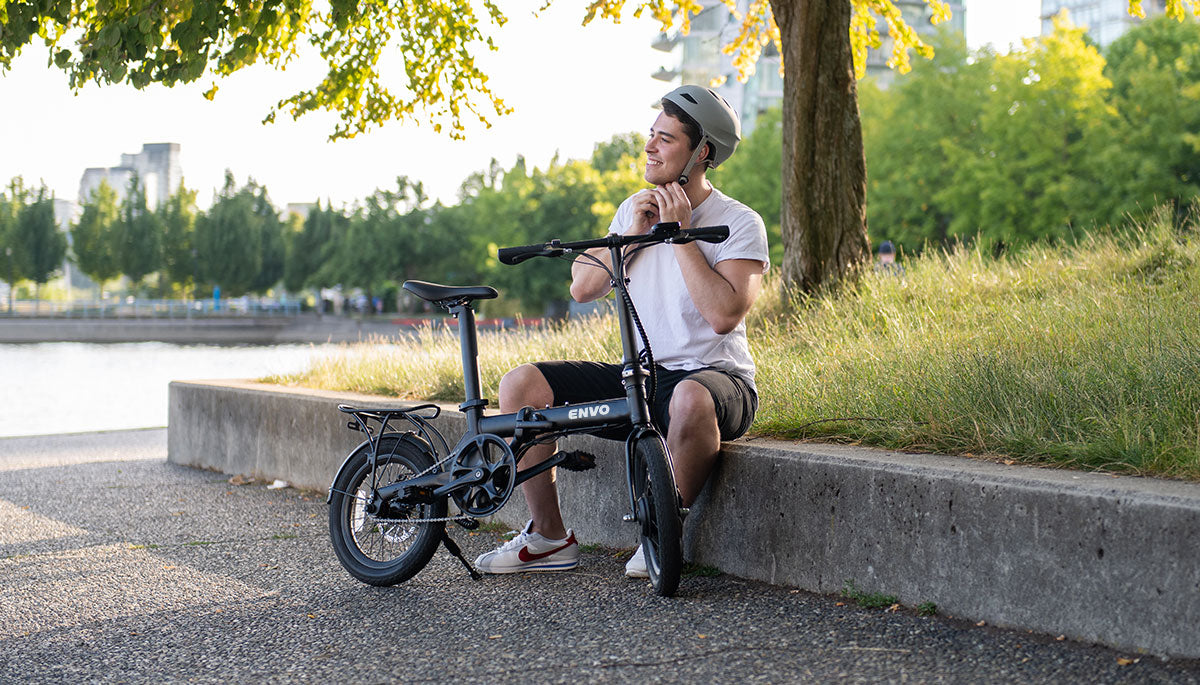

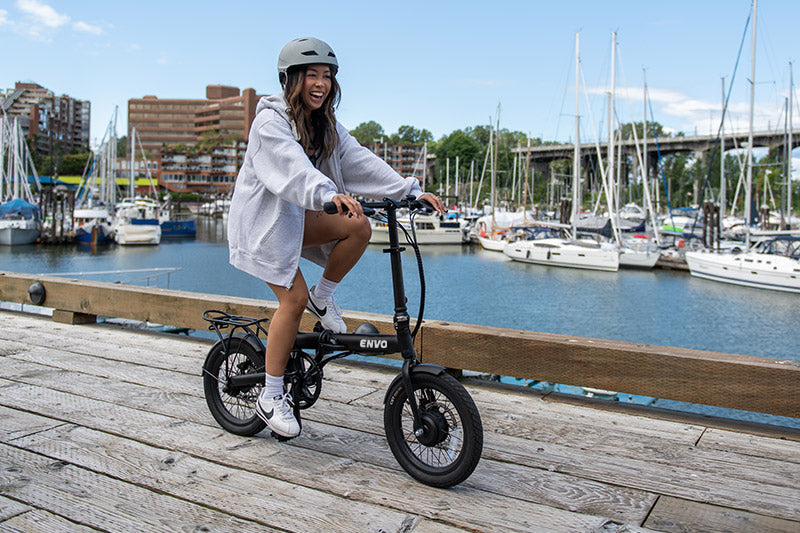

Lynx 16" Foldable eBike
