32Km/h
Max Speed
500W
Max Power
60Nm
Max Torque
100Km
Range
22.8Kg
Total Weight

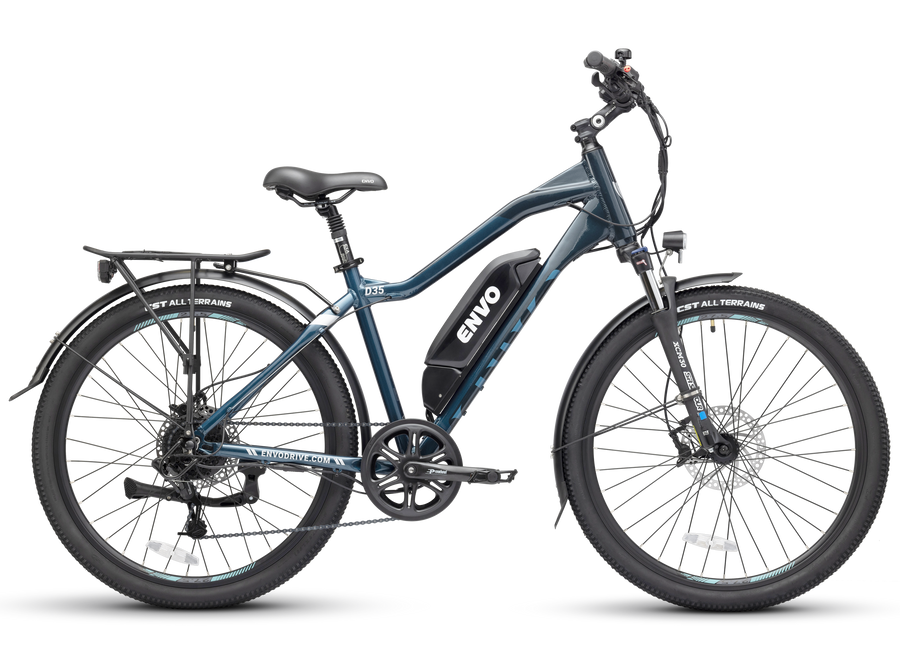

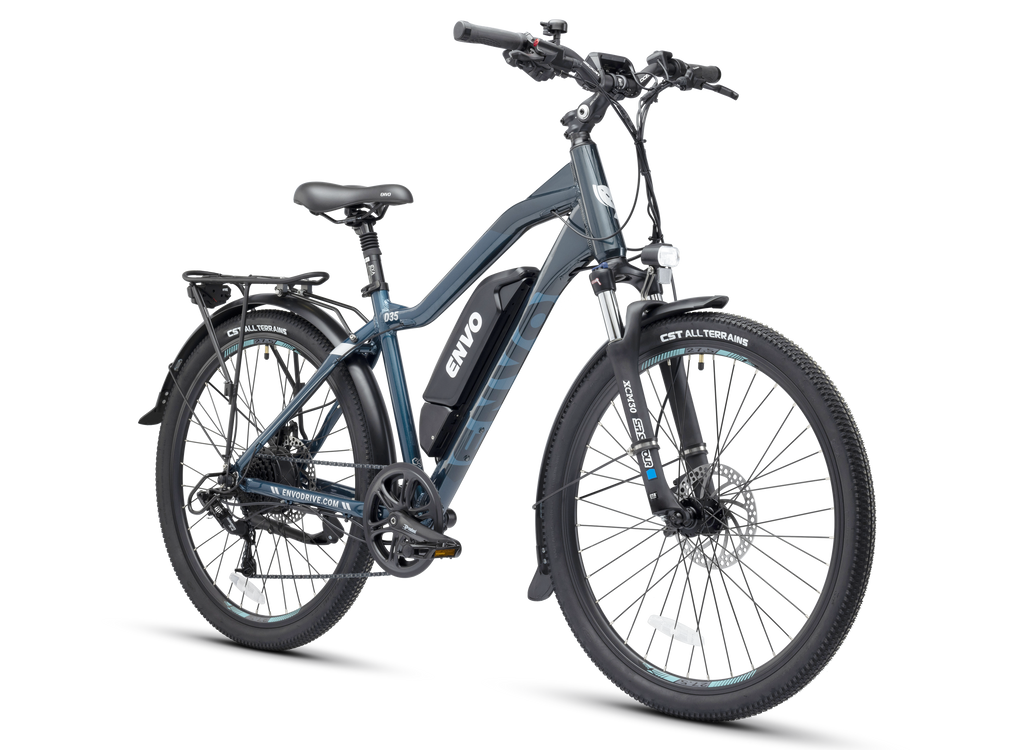

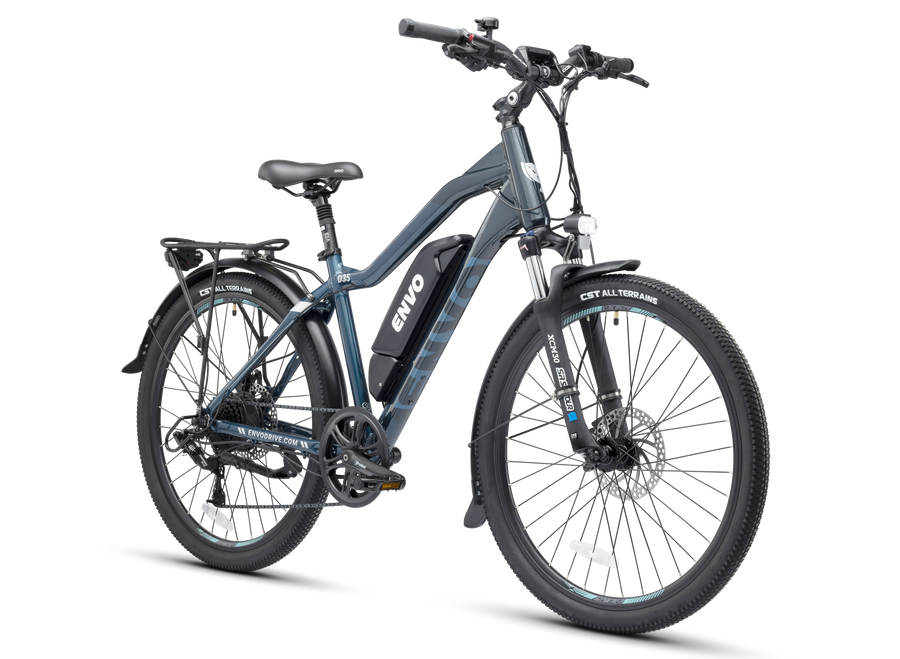

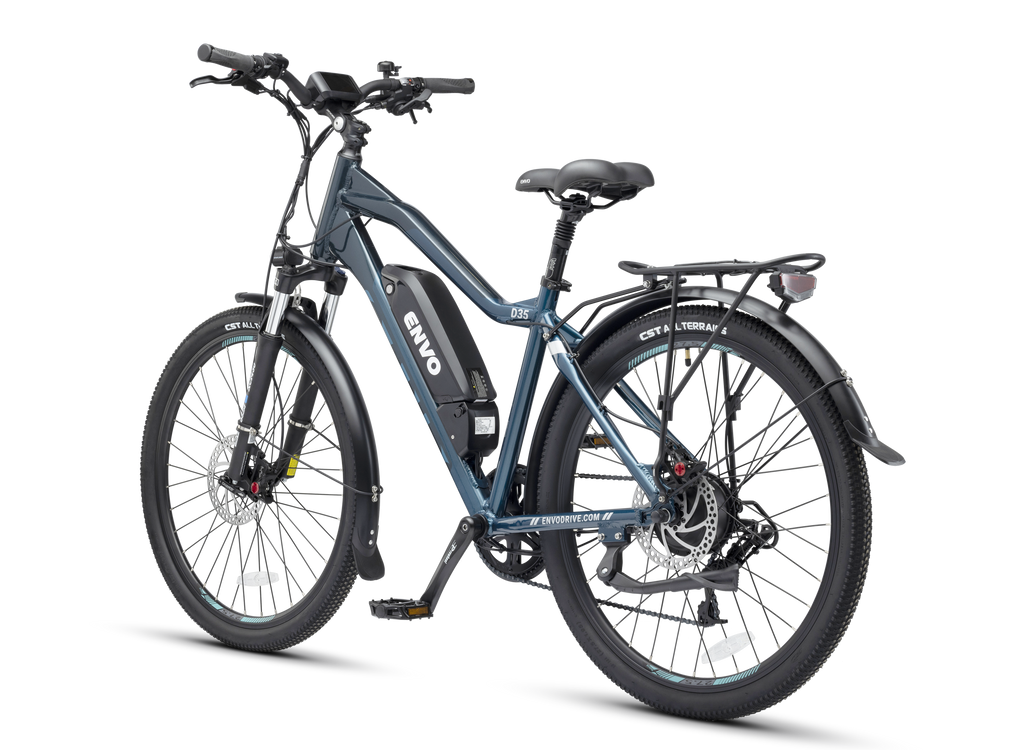

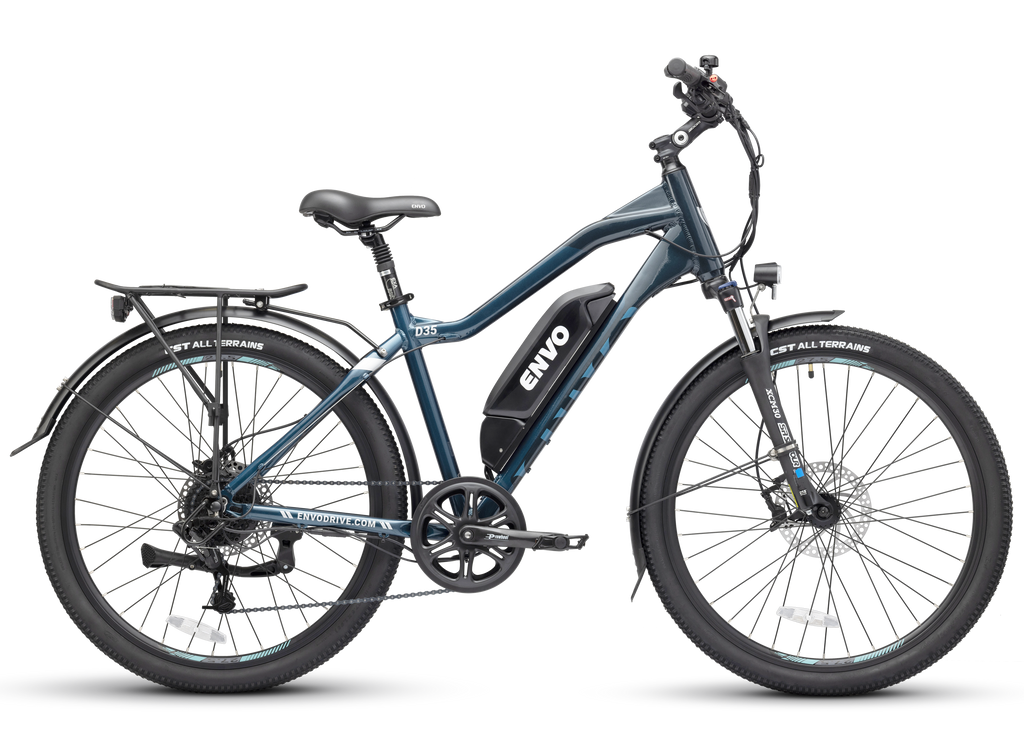

D35
$2,679.00
Engineered in Canada, the ENVO D35 is the lightest and most sustainable electric bike available today. The proprietary rear hub delivers the maximum 500W of street-legal power and a range of up to 100K km.
The lightest and most sustainable electric bike available today
The D35 is designed to be a full-featured, no compromise bicycle first, with the added benefit of power assist when you need it. Switch the power off and experience the unparalleled ride quality of this hybrid bicycle.
Perfect for commutes and pleasure ride mostly pave road
Suitable for pople below 130kg weight, up to 190cm (6’4”ft) tall
Light-weight frame to carry on boat, car, plane, transit, etc.
Continuous up-hills with 10-15% road grade

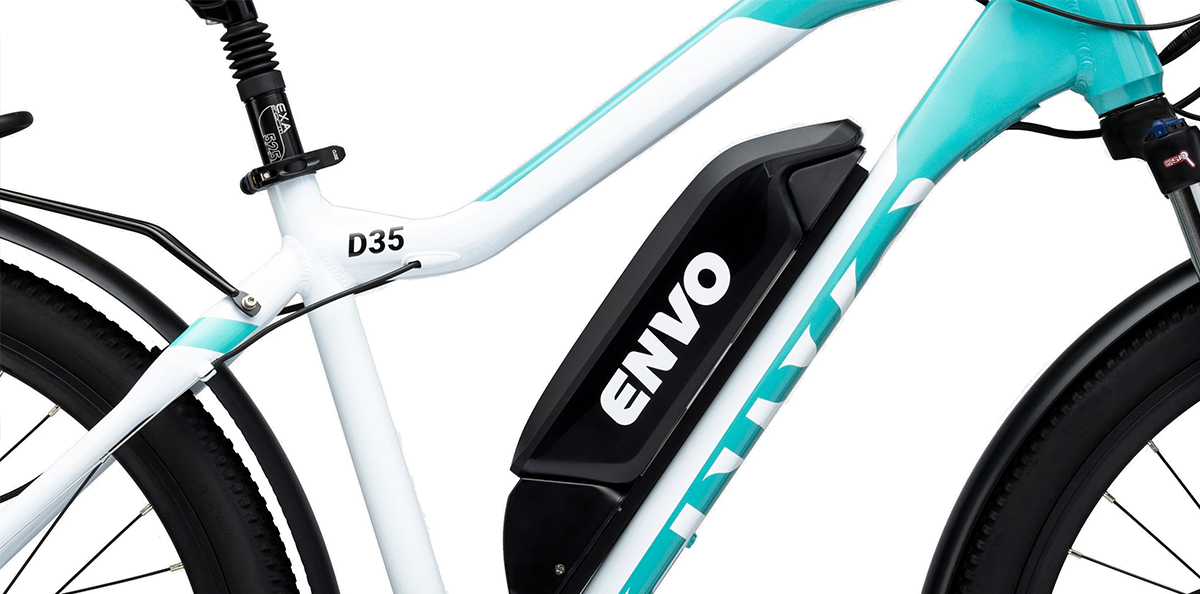

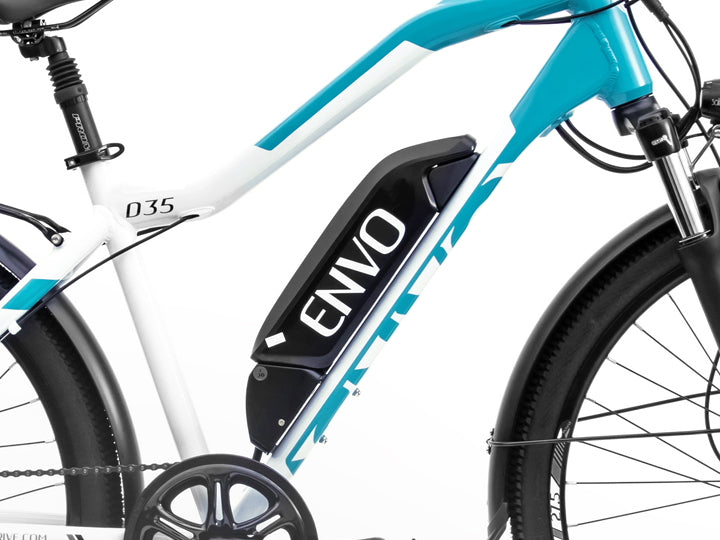

Frames
The D35 is built with a solid, super lightweight, stylish and unisex hydro-formed aluminum alloy frame is a small, medium and large frame size suitable for people from 5’ all the way to 6’6” rider. It is capable of a rider up to 300lbs and offering an ergonomic shape, which makes it easy for the rider to get on and off.The frame is specially designed to minimize all the vibrations and noise from the drive-system, the right wheelbase for a high speed and a pleasurable ride on both paved and unpaved roads.

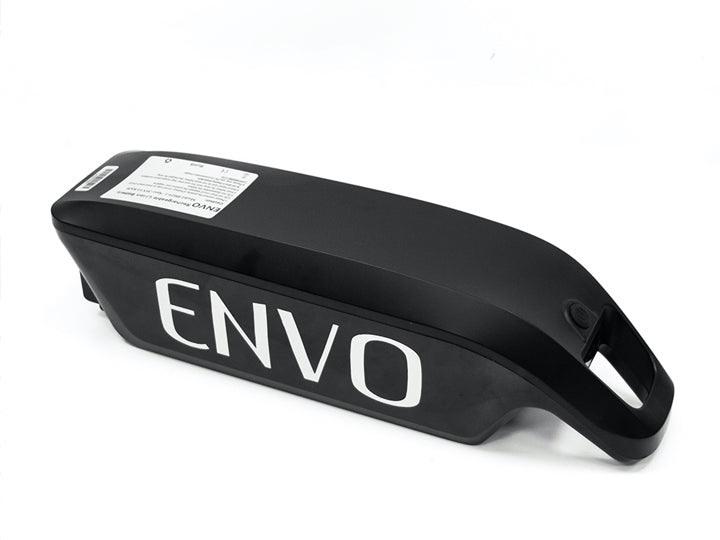

BATTERY PACK
The ENVO Battery powering the D35 is a lizard styled, super lightweight, down tube mounting Li-Ion pack in a stylish thin ABS case with auto-connect socket, with a charge indicator, security lock and accessories. The battery is removable and can reach a range of up to 100 km per charge on pedal assist level 1. The battery can be charged on or off the bike frame using the little portable CC-CV smart Li-Ion battery charger. The ENVO Battery is an A-grade branded Li-Ion battery, comprising of Samsung, LG or Panasonic Li-Ion cells and a BMS that avoids battery from overcharging, overloading and other hazardous activities, thereby increasing both cyclic and calendar life of the battery. Battery cells have been selected for best operating in freezing temperatures.

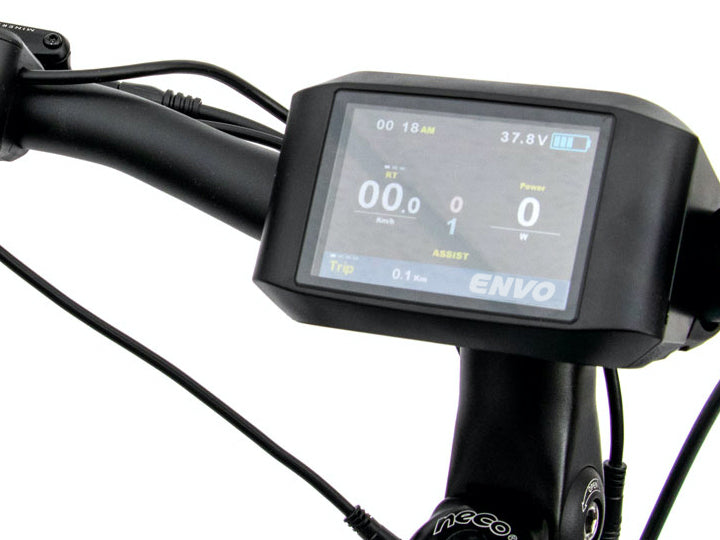

E-ASSIST SYSTEM
The D35 is equipped with an advanced pedal assist sensor with optimized torque emulation software. The advanced torque emulating Pedal Assist Sensor (PAS) signals the controller to run the motor between 5 levels of pedal assist, providing a boost to your pedaling depending on the level of assistance you select while riding. The D35 is equipped with an on-demand thumb throttle that gives you an extra boost which activates the motor proportionally to the twist regardless of pedalling to give you a fully electric ride in case you cannot pedal or need an instant acceleration or uphill push.

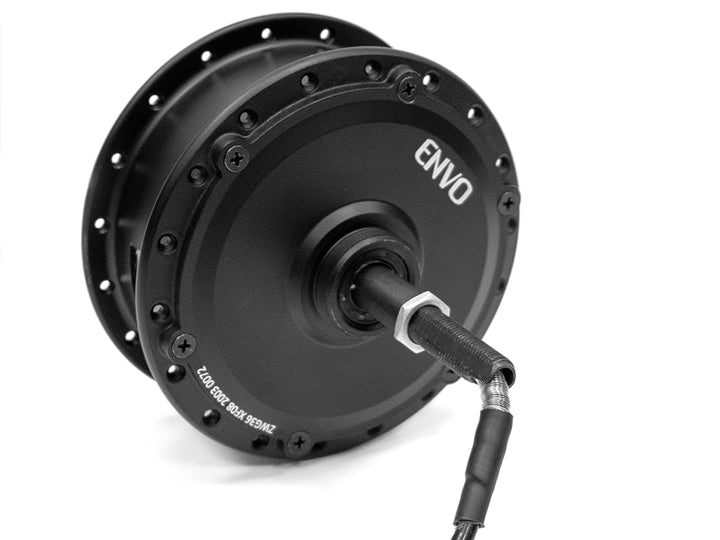

GEARED HUB MOTOR
ENVO D35 is equipped with a sealed, powerful, geared hub motor that offers 500W power and 60Nm torque. The bike is a street-legal bike with legalized speed, torque and power all over Canada and most parts of the US. Our motors are 50% lighter than all the rest powered geared hub motors in Canada, yet they deliver 50% more torque and 25% more battery efficiency. These ENVO motors are developed for over 20,00Km maintenance-free ride.

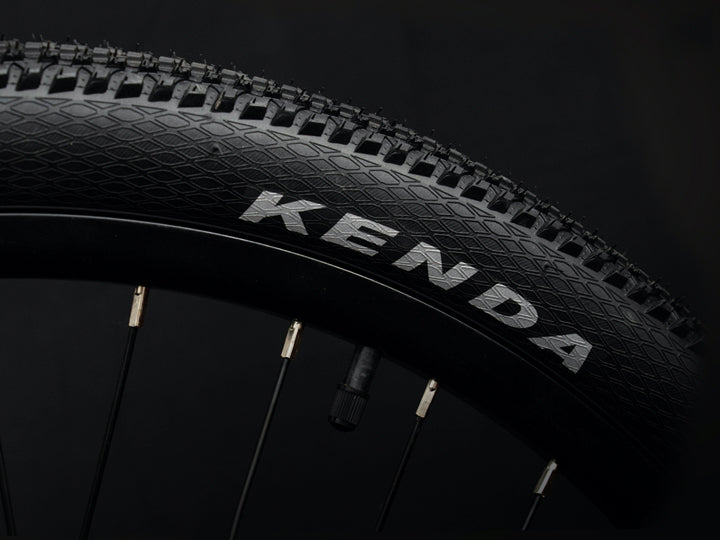

TIRES
27.5″x1.95 tires, the best proven outer diameter for a commuter bike (i.e. 700C) but more cushion which improves ride comfort, dynamic maneuverability, and handling in different terrains.Tires are fat and knobby enough for the best grip on wet cement, asphalt paved, dirt or gravel trails which creates minimum noise and drag for normal urban paved rides.

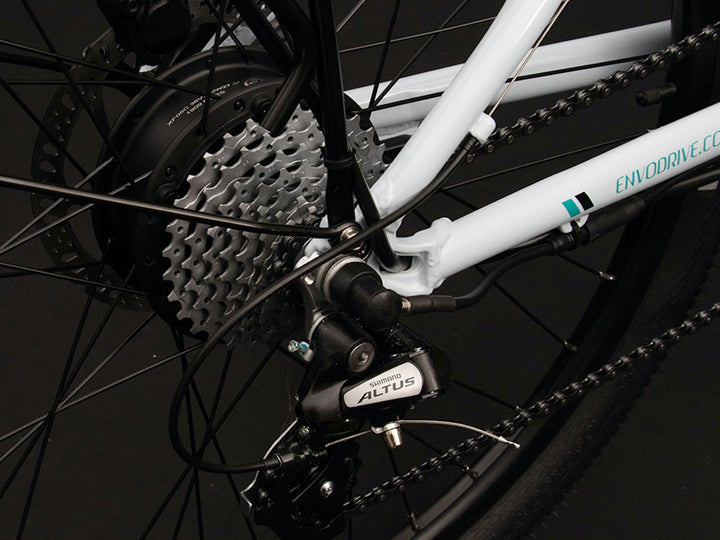

TRANSMISSION SYSTEM
Well-engineered 8 speed 48T chain ring and 11-32 cassette transmission help you overcome up to 25% grade when climbing a hill on gear 1 or 40km/h speed on gear 8 with gentle peddling.
Frame
27.5 X1.95, Hydro-formed Alloy 6061 TIG welded

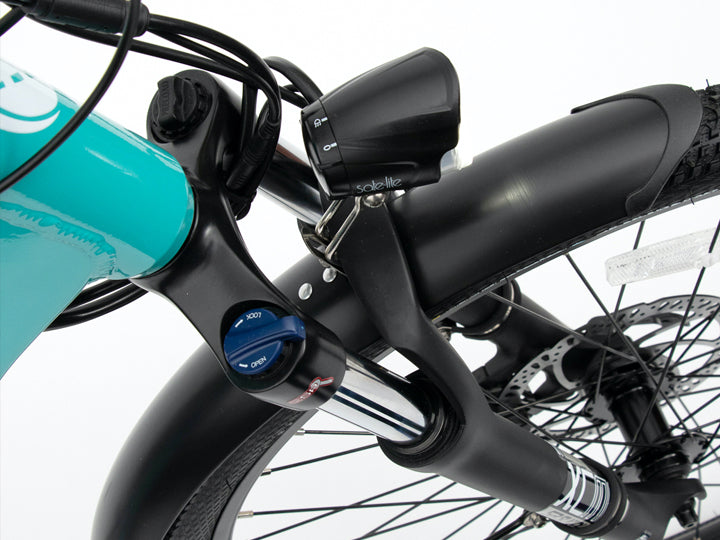

Fork
Zoom 595S AMS /SR Suntour, 27.5 X1.95 Suspension fork, with load adjustment and lock,Travel 80mm
Headsets
thread less headsets, φ25.4×44×30mm, 22mm,NECO
Handlebar
alloy handlebar, 31.8mm TP22.2x680mm, 45mm,15 degree, alloy thread-less stem
Brake Set
F/R alloy hydraulic disc brakes, black ,with alloy electric brake lever
, Rotor 180,Zoom HB 875-E/Tektro HD-E350
Grip
TPR Grip VELO
-
