32Km/h
Max Speed
500W
Max Power
Up to 200Km
Range
400 lb
Payload Capacity
Foldable

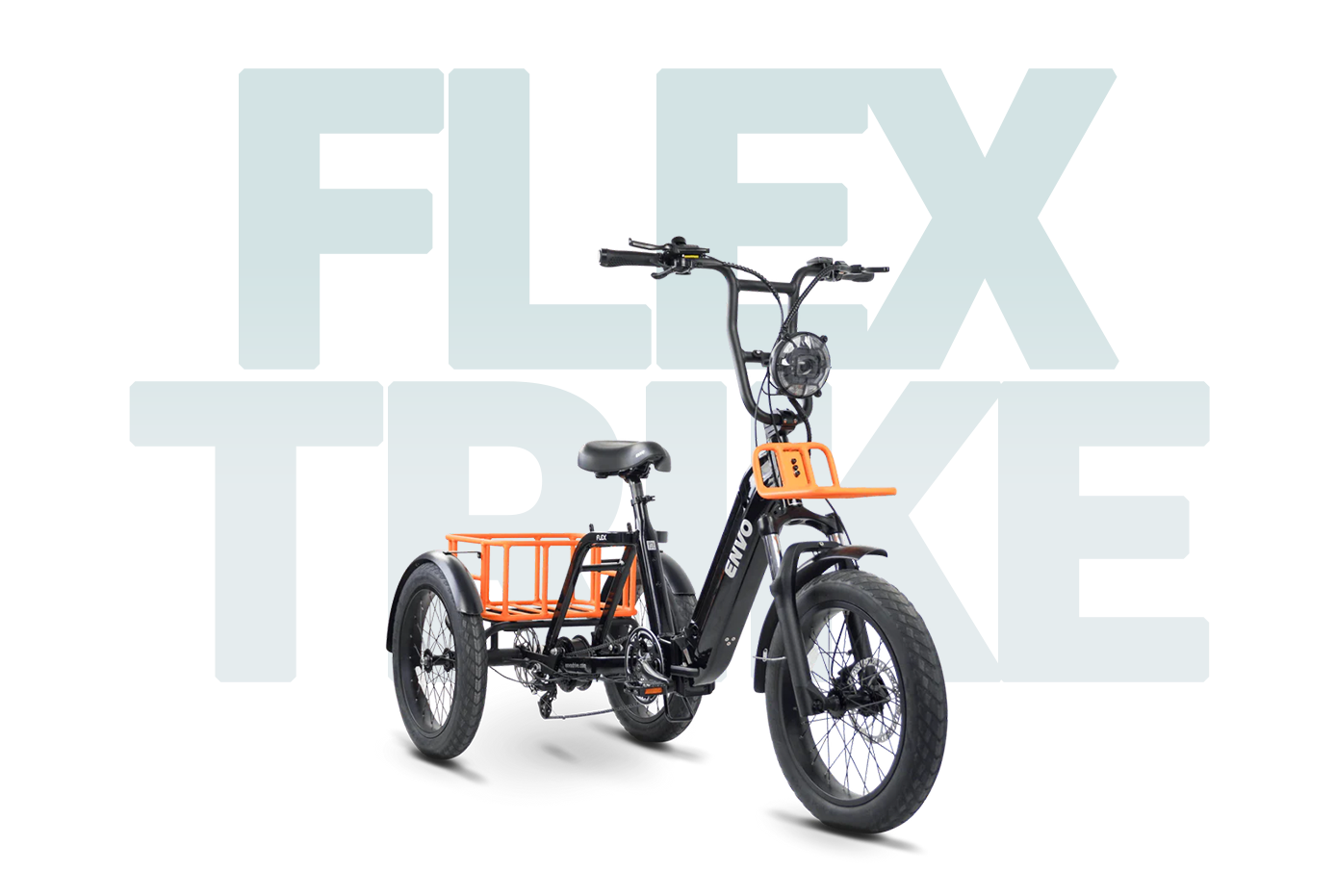

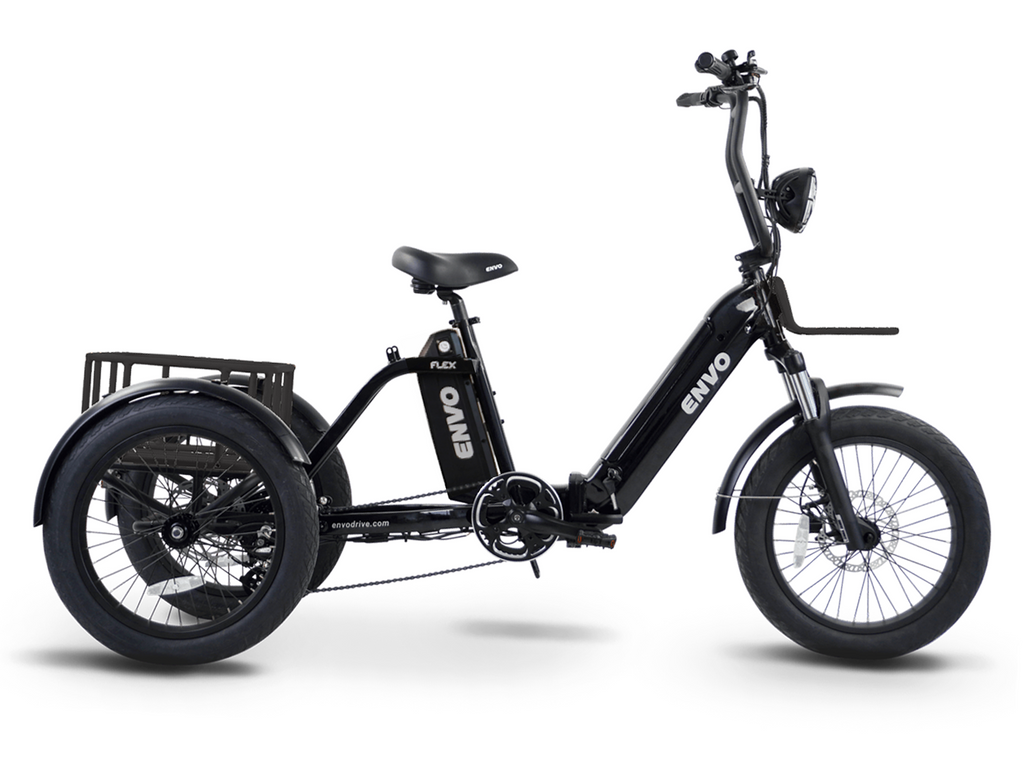

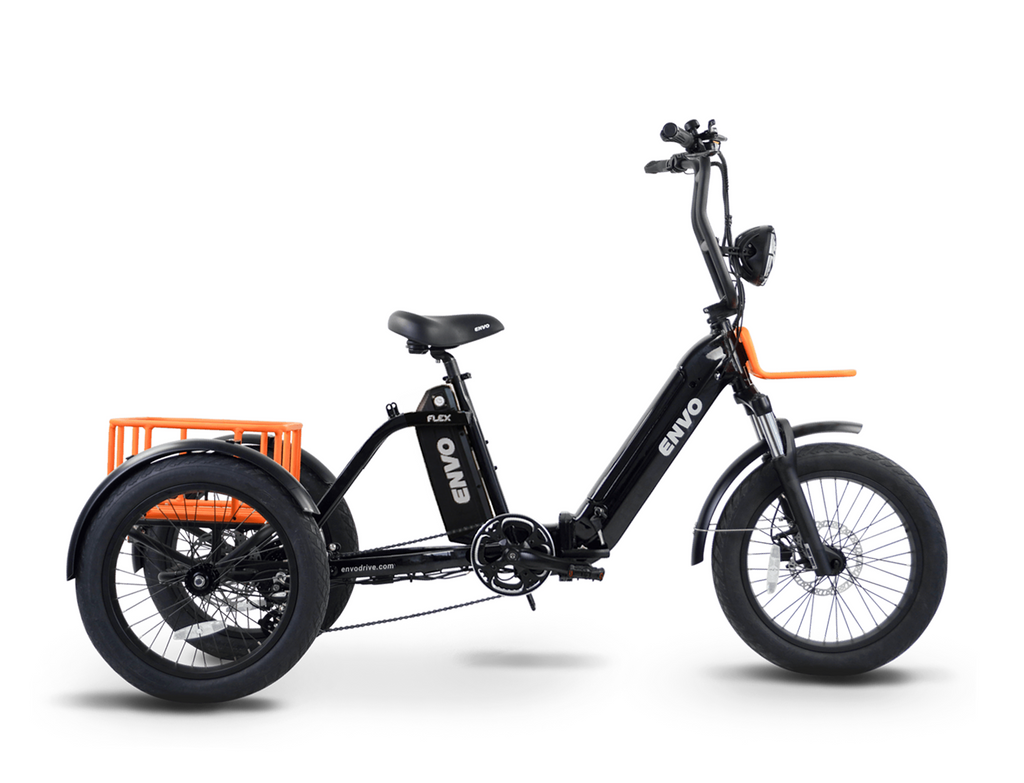

ENVO Flex Electric Trike
$3,129.00
Engineered in Canada, the Flex Trike is a stylish light, and compact 20 inch fat tire electric adult trike with foldable aluminum unisex and unisize step-thru frame. The proprietary front hub delivers a maximum of 500W of street-legal power and a range of up to 200 km with a dual battery option. ALL PICTURES SHOWN ARE FOR ILLUSTRATION PURPOSE ONLY. ACTUAL PRODUCT MAY VARY DUE TO PRODUCT ENHANCEMENT.
32 Km/h
Maximum Speed
50-100 Km
Range with single battery and up to 200km with dual batteries
400 lb
Rated for 180Kg payload capacity
Foldable Step Thru Frame
The Only Folding Cargo Bike in Market
Lightest & Most Compact eTrike
Lowest Q-factor
of Any Fat Trike in Market
Engineered in Canada, the Flex Trike is a stylish light, and compact 20 inch fat tire electric adult trike with foldable aluminum unisex and unisize step-thru frame
Engineered to be a full-featured, no compromise bicycle first, with the added benefit of power assist when you need it. Switch the power off and experience the unparalleled ride quality of this hybrid bicycle.
ESE – ENVO Sustainable Engineering
Full cargo capacity, with front rack and rear basket
Torque emulating smooth PAS, providing incomparable riding experience.
20in off road style fat tires – perfect for low noise and low drag yet provides adequate grip and load capacity

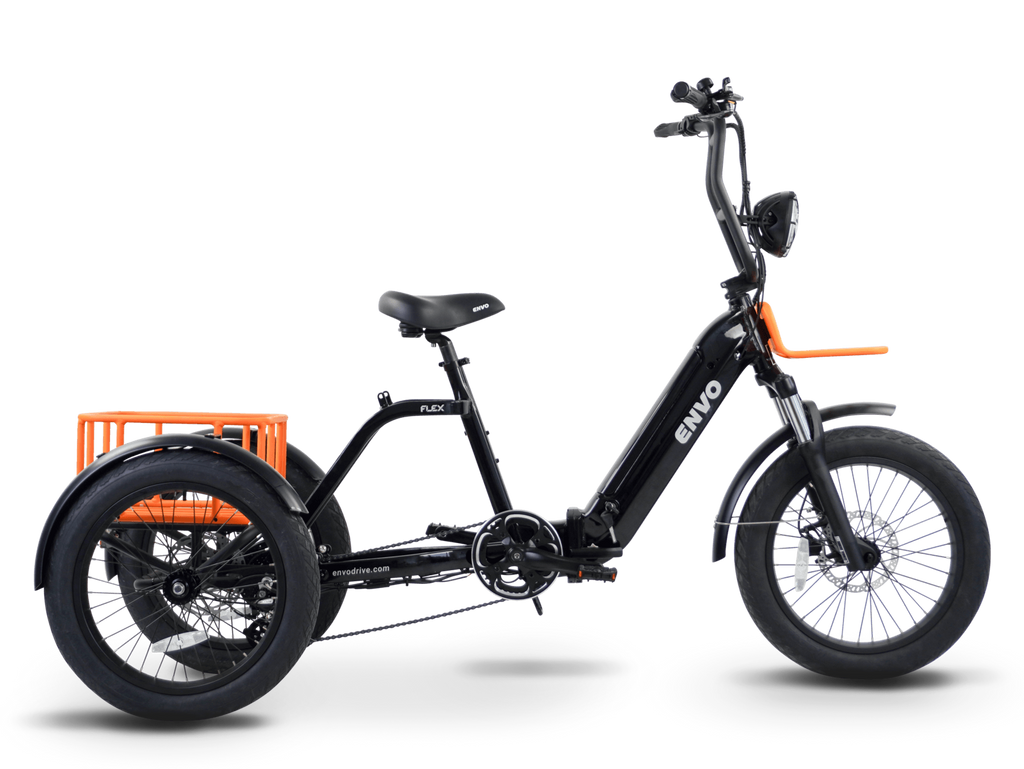

FRAME

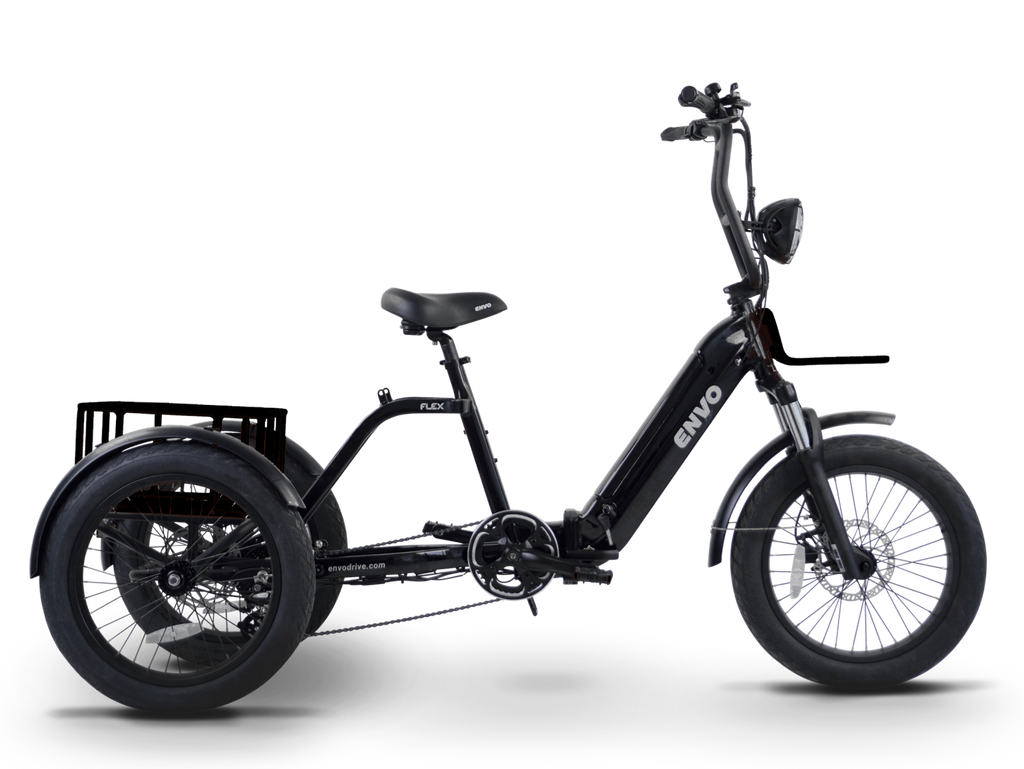

The Flex is built with a solid, lightweight, foldable and unisex hydro-formed aluminum alloy frame suitable for people from 4’11’’ all the way to 6’5” rider. It is capable of supporting up to 400lbs of payload and offers a step thru design, which makes it easy for the rider to get on and off. The frame is specially designed to minimize all the vibrations and noise from the drive- system, the right wheelbase for a high speed and a pleasurable ride on both paved and unpaved roads.
BATTERY PACK
The ENVO Battery powering the Flex Trike is super lightweight, down tube mounting Li-Ion pack in a stylish thin ABS case with an auto-connect socket, a charge indicator, security lock. The battery is removable and can reach a range of up to 100 km per charge on pedal assist level 1. The battery can be charged on or off the bike frame using the little portable CC-CV smart Li-Ion battery charger. The ENVO Battery is an A-grade branded Li-Ion battery, comprising of LG or Panasonic Li-Ion cells and a BMS that avoids battery from overcharging, overloading, and other hazardous activities, thereby increasing both cyclic and calendar life of the battery. Battery cells have been selected for best operating in freezing temperatures. Flex comes with a dual battery option, allowing you to go twice as far in your travels. Dual batteries on Flex Trike gives you 920Wh of battery capacity, allowing you to travel up to 200km on a single charge.
E-ASSIST SYSTEM

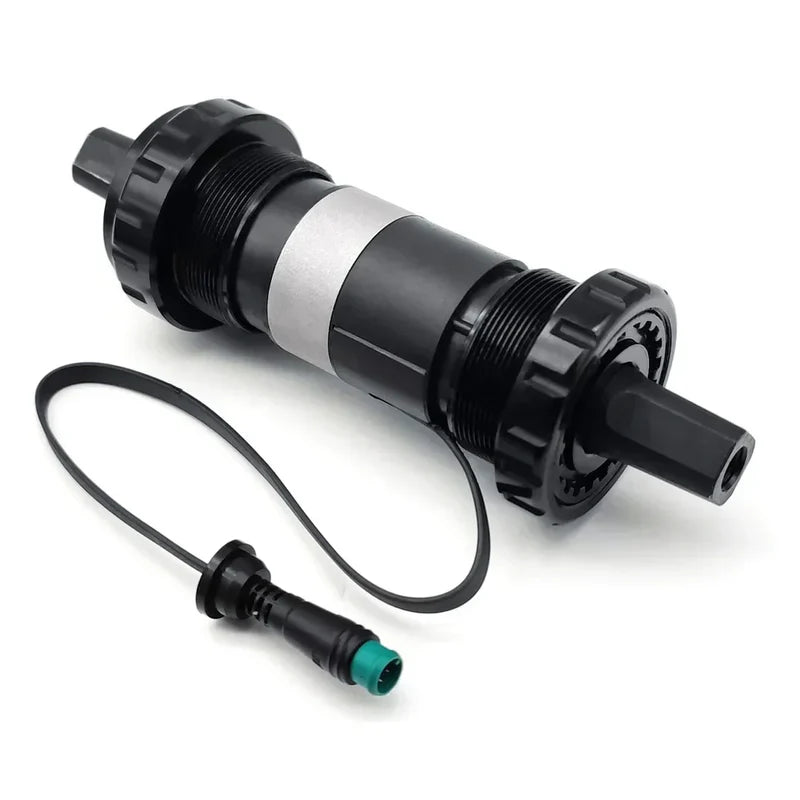

The ENVO Flex is equipped with an advanced pedal-assist sensor with an optimized torque emulation software. The advanced torque emulating Pedal Assist Sensor (PAS) signals the controller to run the motor between 5 levels of pedal assist, providing a boost to your pedalling depending on the level of assistance you select while riding. The ENVO Flex is equipped with an on-demand thumb throttle that gives you an extra boost which activates the motor proportionally to the twist, does not matter if you are pedaling, to give you a fully electric ride in case you cannot pedal or need an instant acceleration or uphill push.
GEARED MOTOR HUB
ENVO FLEX Flex is equipped with a sealed, powerful, upkeep free, geared hub motor that offers 500W power and 60Nm torque. Our motors are designed efficiently and hence are lighter than most powered geared hub motors in Canada, yet they deliver high torque and efficiency. These ENVO motors are developed for over 20,000 Km maintenance-free ride.
ADJUSTABLE STEM
The FLEX Trike comes with an adjustable telescopic handlebar, this lets the rider do the ergonomic fine tuning allowing them to choose efficient pedaling position.
TIRES
Flex Trike comes with 20inch urban style fat tires. These fat tires are cushion enough to improve ride comfort, dynamic maneuverability, and handling in different terrains. Tires are fat and knobby enough for the best grip on wet cement, asphalt paved, dirt or gravel trails which creates minimum noise and drag for normal urban paved rides.
DISK BRAKE

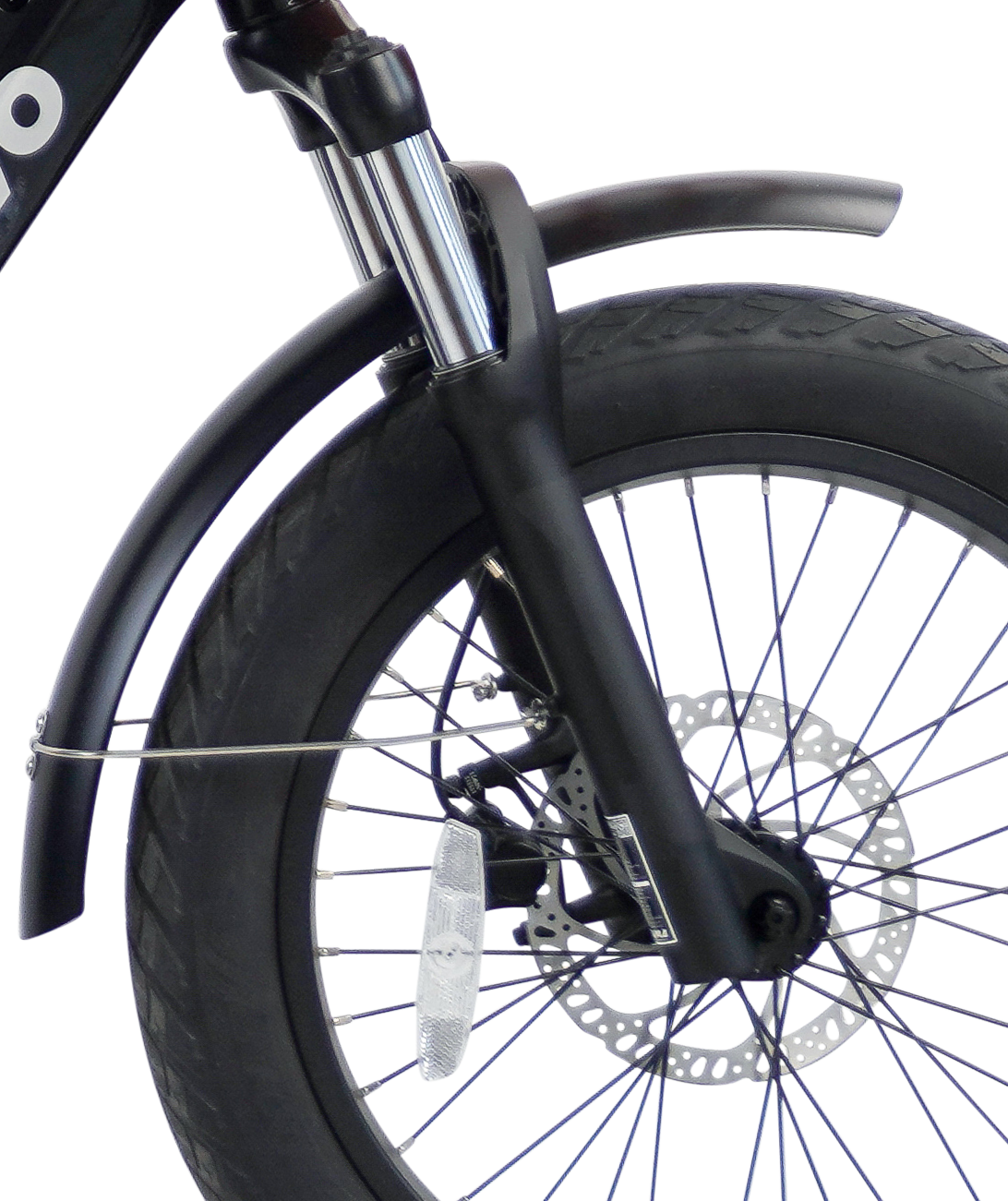

Top of the line mechanical disk brakes equipped with electric cut-off sensors provide more safety to the bike as well as the rider. Flex Trike comes with brakes on all of the wheels, allowing for better handling and safer ride.

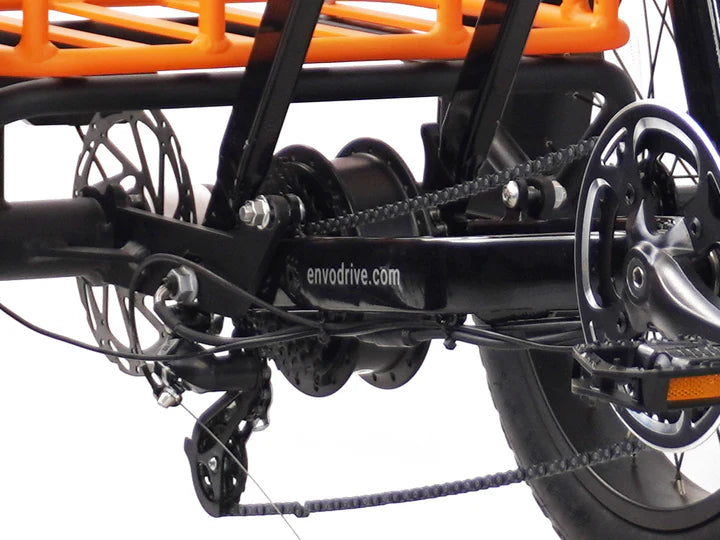

TRANSMISSION SYSTEM
Well-engineered 52T chain ring and 7 speed 11-32 teeth cassette transmission help youovercome up to 25% grade when climbing a hill on gear 1 or 40km/h speed on gear 6 withgentle peddling.

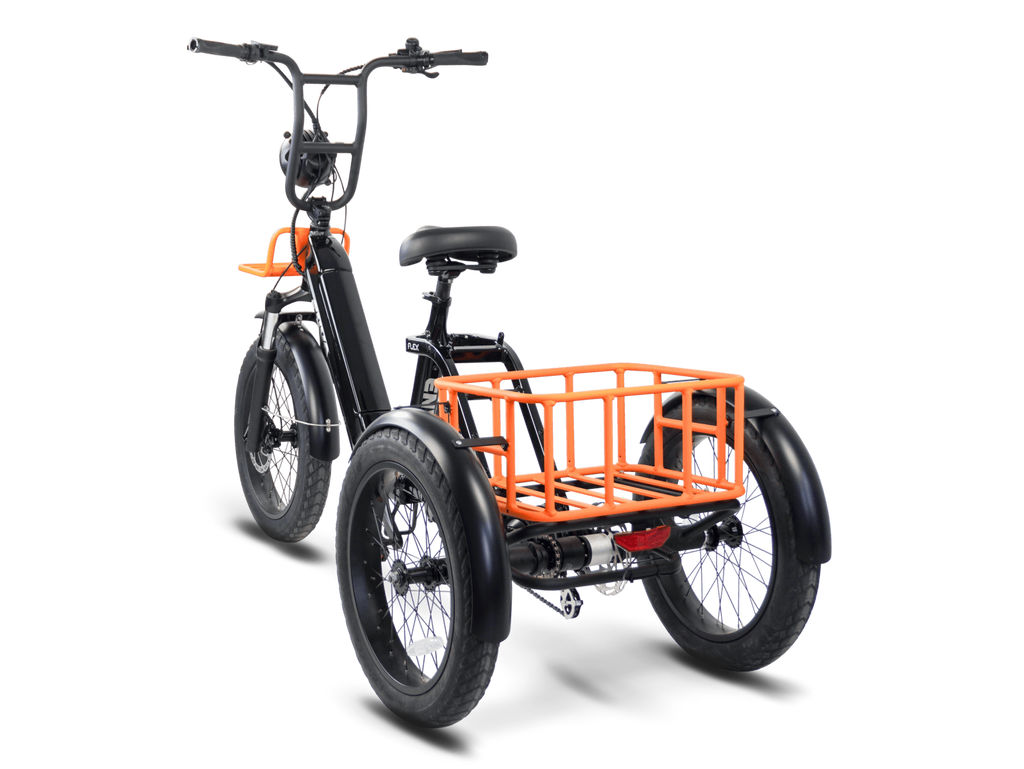

REAR RACK
Flex Trike comes with a specially designed cargo rear basket with rating of 150lbs weight. The basket dimensions are 50cm x 30cm making it practical to carry anything from grocery, food delivery bags, to cargo boxes.
ENVO FLEX TRANSFORMATION
As a bonus the Flex Overland allows you the ability to adapt two products using the same platform. Using modular design components, the Overland can easily be transformed into the Flex SnowBike giving the outdoors man a winter option that is light weight and easily transportable.
Button
Electronics
Trike
Battery
36V, 12.8Ah
Controller
36V, 500W
Display
LCD Display with speedometer, odometer, pedal-assist indicator, etc
Hub Motor
500W
Lights

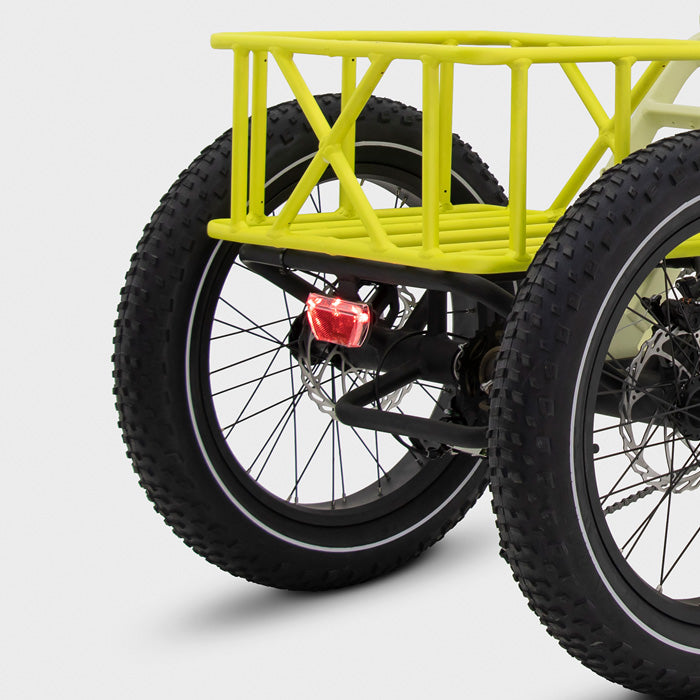

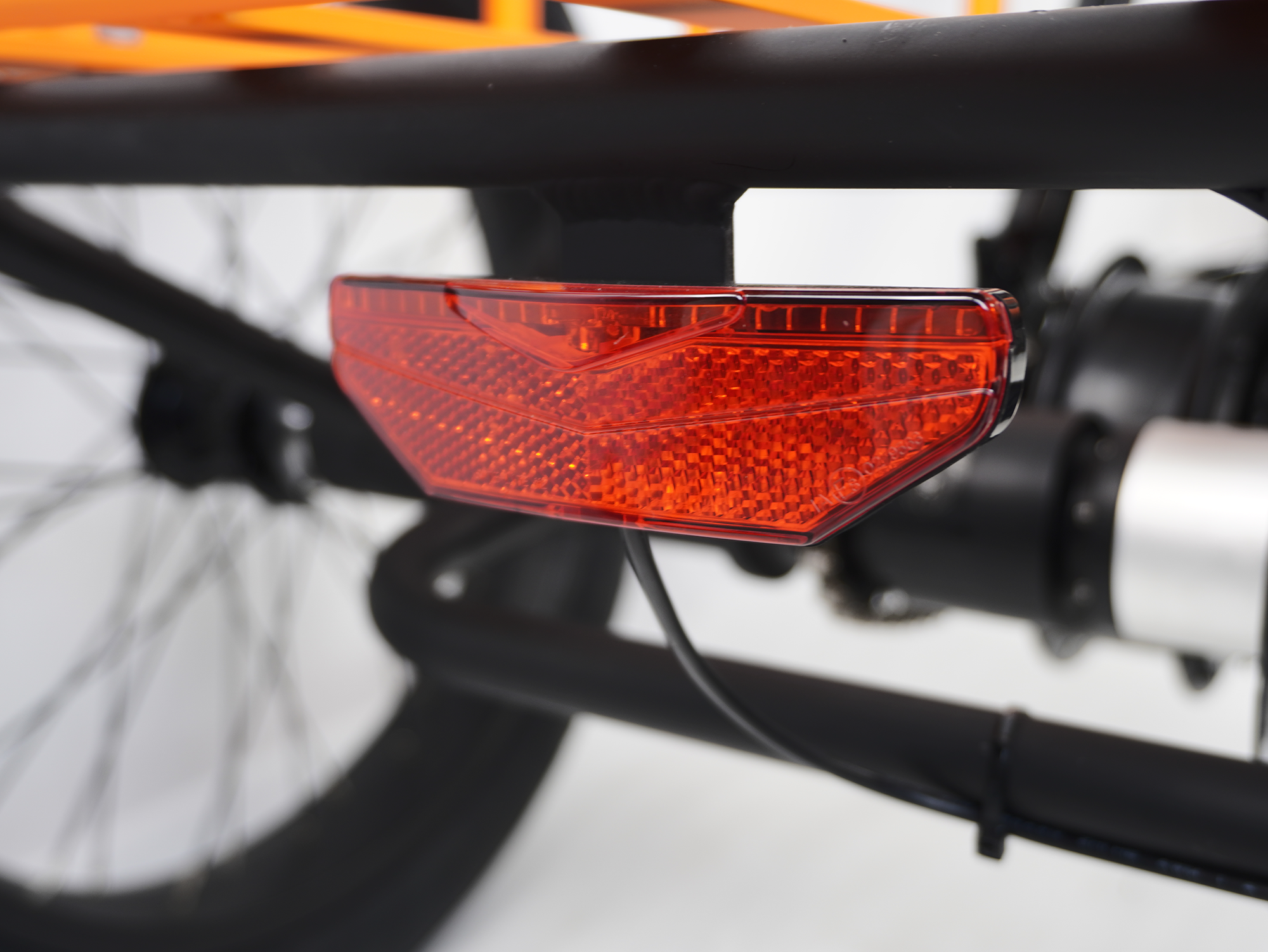

Brake triggered Backlight
Pedal Assist
5 Level Pedal assist
Wiring
Water Resistant Wiring
Mechanical Components
-
Flex Trike Size Chart
ENVO Flex Trike
UNBOXING & ASSEMBLY INSTRUCTIONS
