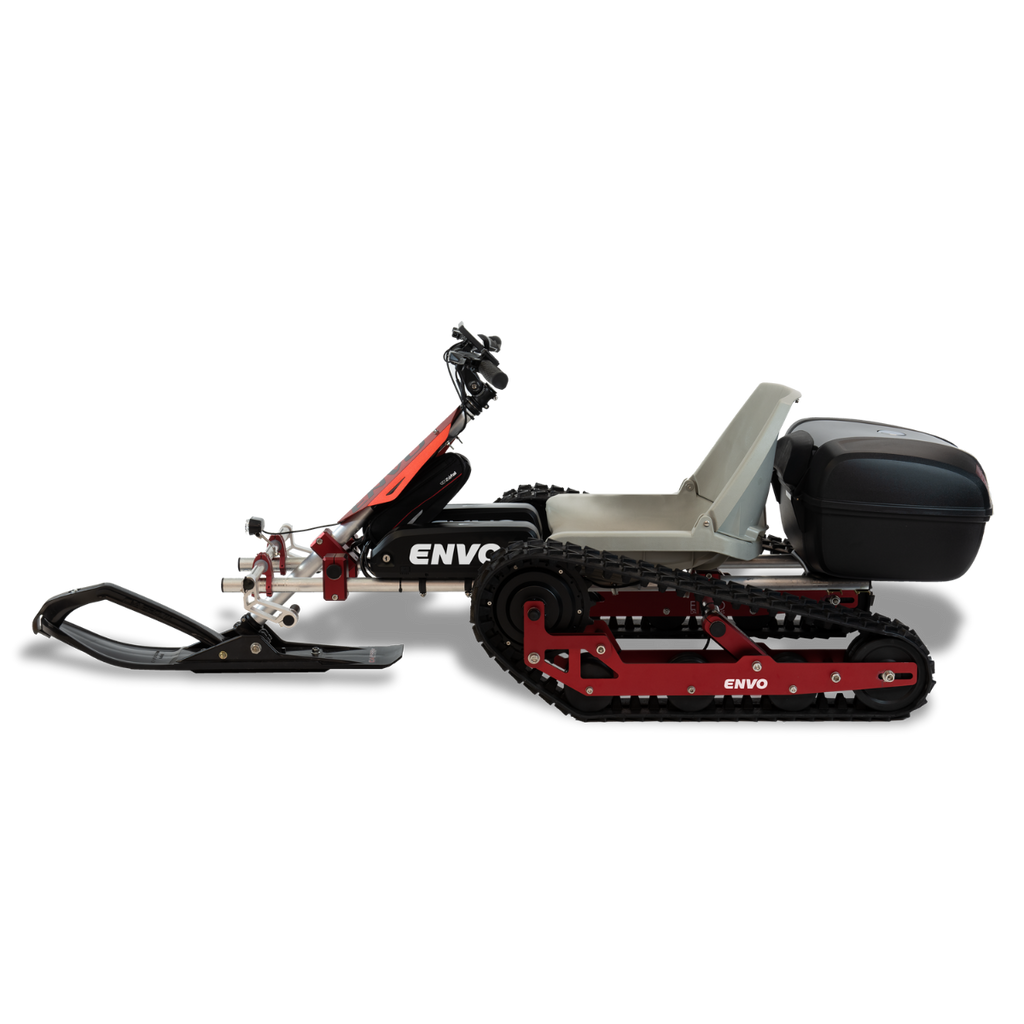

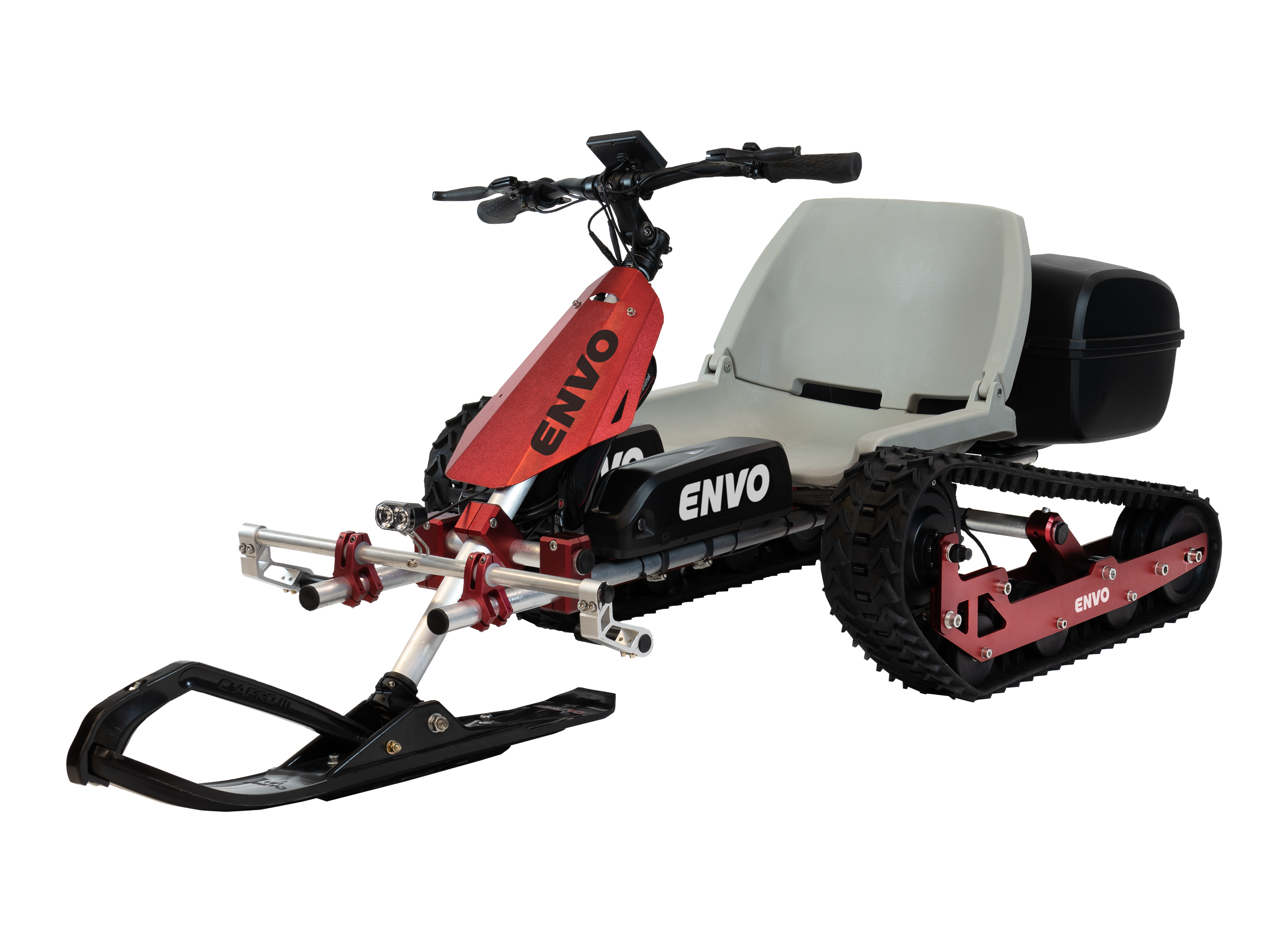

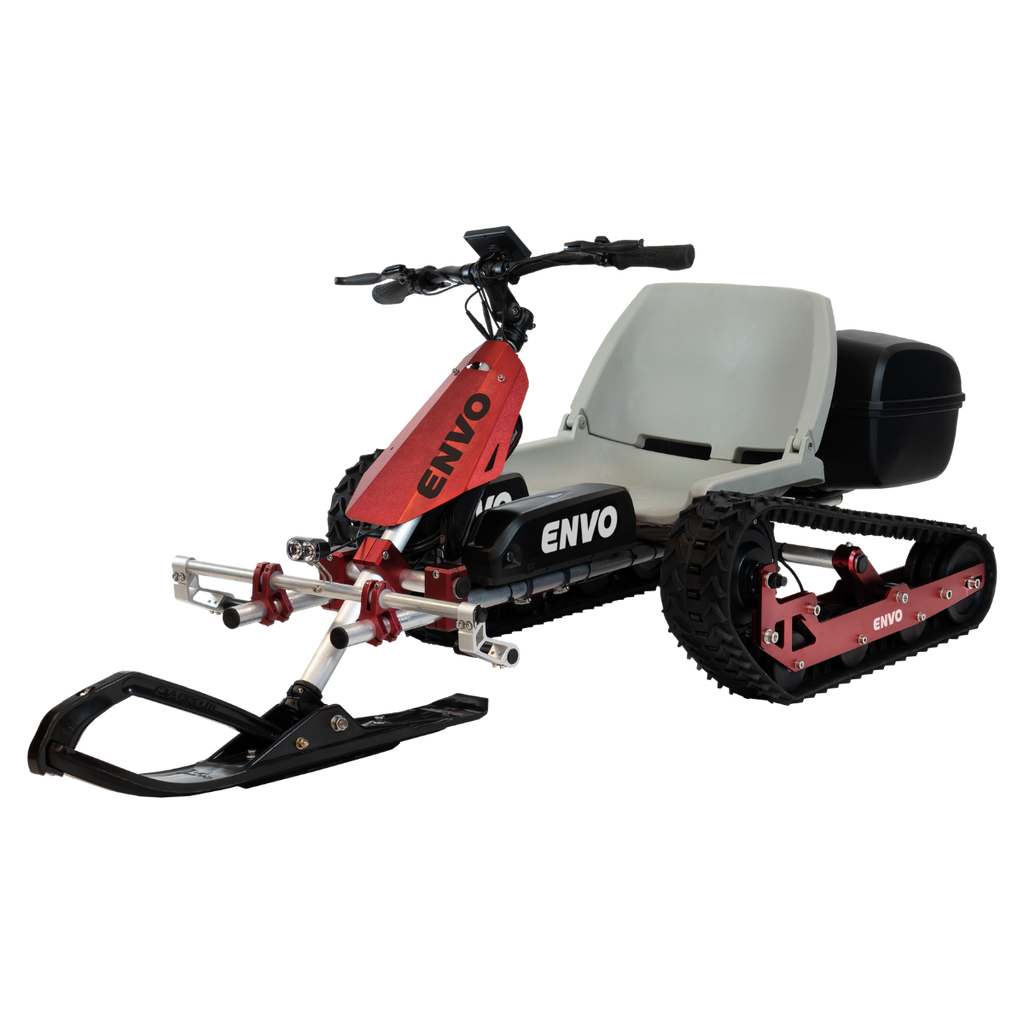

Electric SnowKart
Snow Products
Add to cart and select preferred Envo dealer for pick up or delivery during checkout.
2000 W
Max Power
20 Km/h
Max Speed
120 Nm
Max Torque
100 lbs
Total Weight
2 Hour
Range per Charge
400 lbs
Towing Capacity
Capable in All Winter Terrain

Powder

Hardpack

Slush

Ice

ELECTRIC SNOW MOBILITY
Equipped with 2 electric snow tracks and a ski at the front your SnowKart provides the best stability, performance and a comfortable ride in the snow, giving a joy that has never been experienced before. Safe and easy to ride for everyone including those with disabilities or adaptive requirements. You have it all without an environmental impact nor noise.

DESIGN
Compact design with easy DIY assembly practices for easy transportation or customize the build.

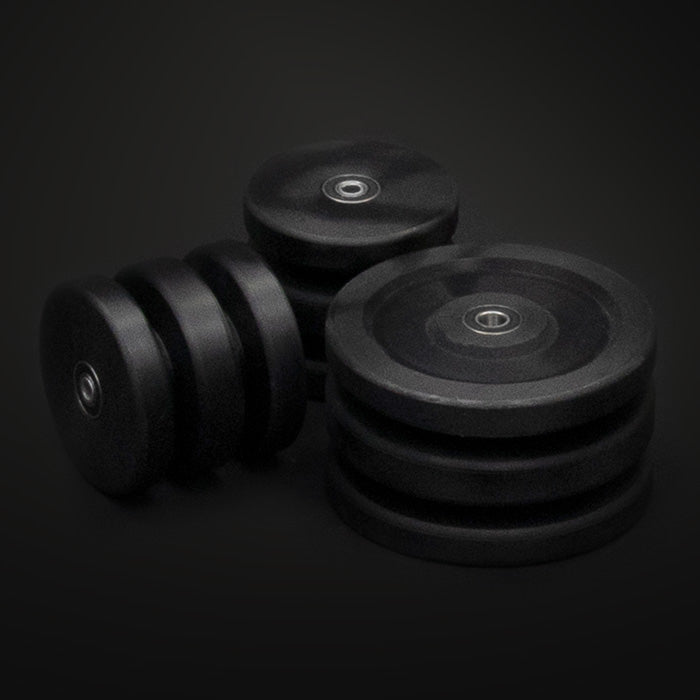

BOGIE
Made from multiple aluminum CNC machined parts, customizable and maintenance-friendly snow track assembly makes it possible to build any electric snow machine to ride or even electric snowplow.

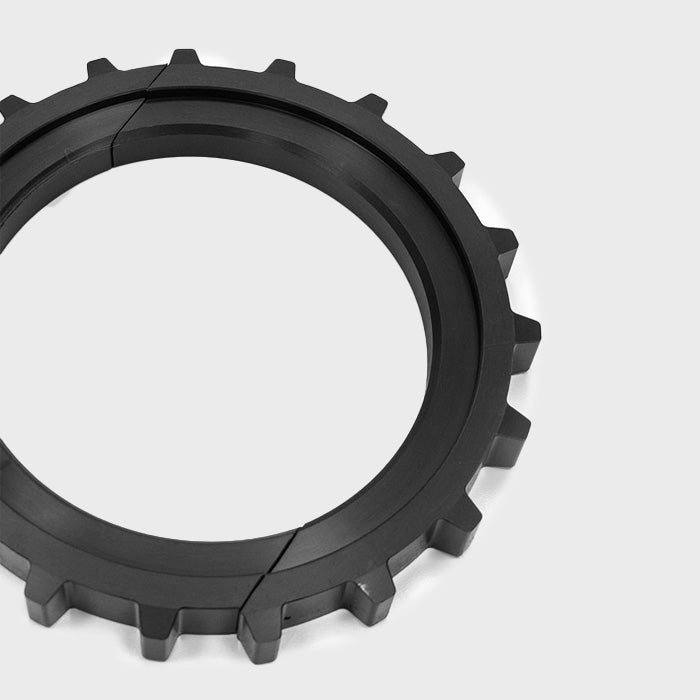

SNOW TRACKS
The V shape knob rubber track creates great traction with almost any type of snow terrain, proven up to a 20% slope. It has a well-thought geometry, secure in track with minimized resistance and energy loss which can generate up to 100KGF (220lbs) of traction. Made from rubber and Kevlar reinforcement, It is relatively light, safe and easy to handle when it comes to adjustment or replacement.

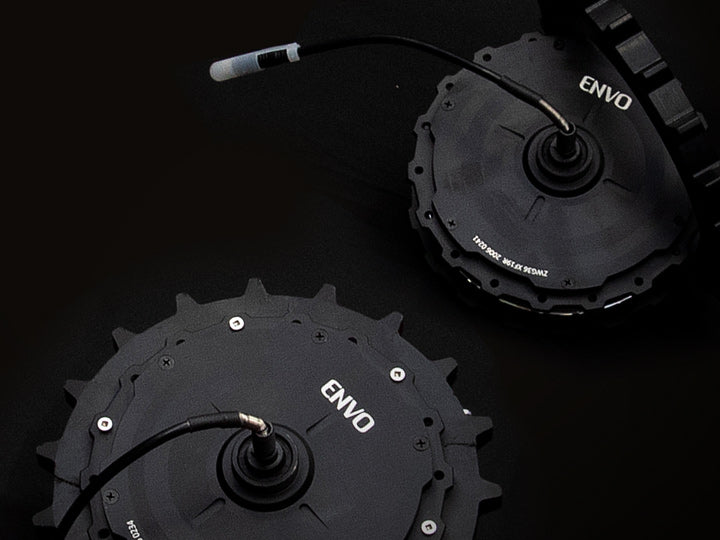

MOTOR
Powerful Integrated BLDC geared hub motor provides up to 1200W of power and 120Nm of torque in a compact, sealed and maintenance-free construction. The motor acts as e-brake when braking via brake lever cut off switch signal.

BATTERY
Lizard style 48V/17.5Ah Li-ion battery pack featured with Panasonic/LG cells with a working temperature range of -20 Celsius, provides up to 2000W of output power and 840Wh of energy with the option to double by using 2 packs is enough for up to 2 hours full throttle continuous ride on pedal assist.

CONTROL SYSTEM
LCD3 meter provides you with a variety of functions such as vehicle controls and vehicle status digitized displays to meet the trip demands.

SKI
Skis and the fully customizable/ adjustable stem assembly attached to the front of the snowkart ensures easy gliding and accurate and sharp turns on snow and ice. It has great floatation on the uneven snow surface. It can be used on snow, as well as off-road on ice.

IMPORTANT NOTE TO BUYERS
This is a DIY product preliminary launch for early adopters. This concept has gone through all major engineering, prototyping, limited production, testing, revisions, and approval to be released for marketing. However, there might be multiple unknown failure scenarios in the actual use of this product as mobility means in various terrains which are assumed the risk by the users. That means the buyer, assembler and users must be mechanically inclined and fully understand the product details and instructions as well as all probable risks of using. DIY installation on a wide range of bicycles requires a creative and a technical mind. Failure to a proper installation may cause serious damage to the bike and or hazard of severe injuries. The buyer assumes the liability for the safe installation and use of this product by signing the Liability Waiver. Before ordering, if you have any questions or need further details, do not hesitate to contact us.
-
SPECIFICATIONS
Motor:
750W Rated (1200W Max.) Geared Motor
1200W using 48V 25A controller, hub motor, small size with simple structure, lightweight and long life, superpower, high efficiency, beautiful, high-speed motor with gear, the drive is very free and fluent, the best choice for Li-ion battery on an e-bike for the rough road, higher weights and higher grade-ability.
Motor Type: DC Brushless Geared Hub Motor
Motor Power: 750W /1200W
Motor Voltage: 48V
Motor Max Torque: 120Nm @25A
Motor Efficiency: ≥80%
Sun-planetary reduction gears with regenerative braking option
36 Spokes, Flange for disc brake, Waterproof connector
Axle=135 mm, Diameter=177 mm
Weight= 4 kg
The phase angle of 120 degreeMotor Manufacturer: MXUS Waterproof and protection grade: IP54 Noise level 55 dB CE, EN15194 certifications
Motor Controller: Brushless Motor Controller
Display Computer: LCD3 meter provides you with a variety of functions such as vehicle controls and vehicle status digitized displays to meet the trip demands. Trip time display (with displays of a single trip time (TM) and total trip time (TTM)); Trip speed display (with displays of real-time speed (Km/H or MPH) and a single maximum speed (MXS) and a single average speed (AVS)); Trip distance display (with displays of a single trip distance (DST) and total trip distance (ODO)); Display of turned on the handlebar; Display of power-assist startup; 6Km/H power assistant push function; Cruise function (CRUISE); Battery capacity indicator; Real-time battery voltage (VOL) display; Motor power and temperature (MOTOR) display; Brake display; Turn on backlighting and lights; Environment temperature display; Data clearing; Fault code display; User parameter setting 5′ large screen Rubber clamp spacer is provided for 3 handlebars bore sizes: 22.5mm, 25.4mm, 31.5mm Easy key button, easy control, Waterproof housing with good appearance
Battery:
The Lizard battery is a battery you can mount on a frame tube using special clamp nuts. The battery can be locked to its support or un-lock and slide out to remove.
Li-Ion 48V 17.5Ah
Battery energy: 840Wh
Battery max power: 1700W
Standard recharge time 8 hours
Battery Pack Specification:
PVC covered 18650Cells and BMS pack
SANYO GA 3500
Charging Model CC/CV
Charge Temperature 0-45 °C
Discharge Temperature -20-55 °C
Battery Charger Voltage:
54.6V
4.5 kg
Battery dimensions:
370 x 110 x 90 mmMaterial:Wheel A356 Aluminum, Magnet 38SH, Wire(winding) QZ-3/155, Iron core DW470, Bearing C&UBlack glove box not included
Motor Voltage: 48V Min Voltage: 42+-0.5V Max Current: 25+-1A Speed Set: 1-4.2V Angle: 120 Brake Input: Low-Level
Brake cut-off magnetic switches:Just stick the magnet sensors, no need to disassemble the brake levers. It cuts-off the motor when you brake. Electric regenerative braking

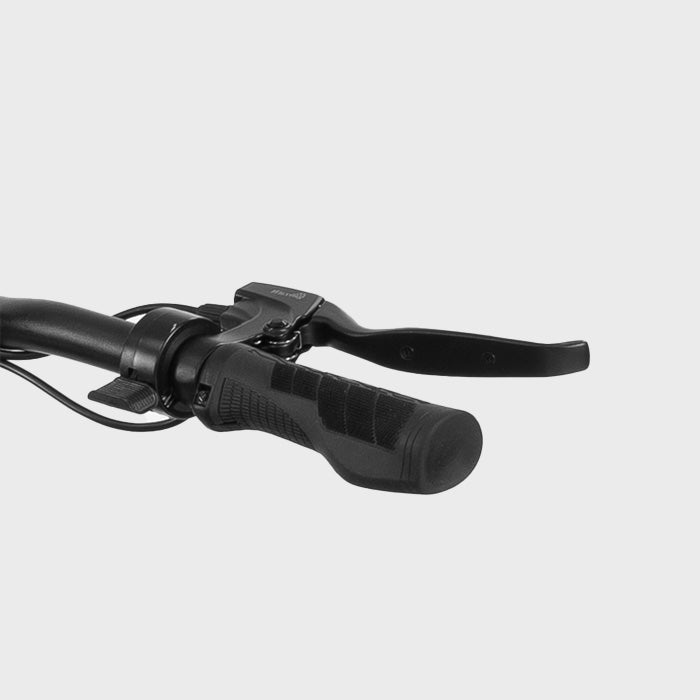

Thumb Throttle: Haul effect sensor, Analogue linear increasing torque

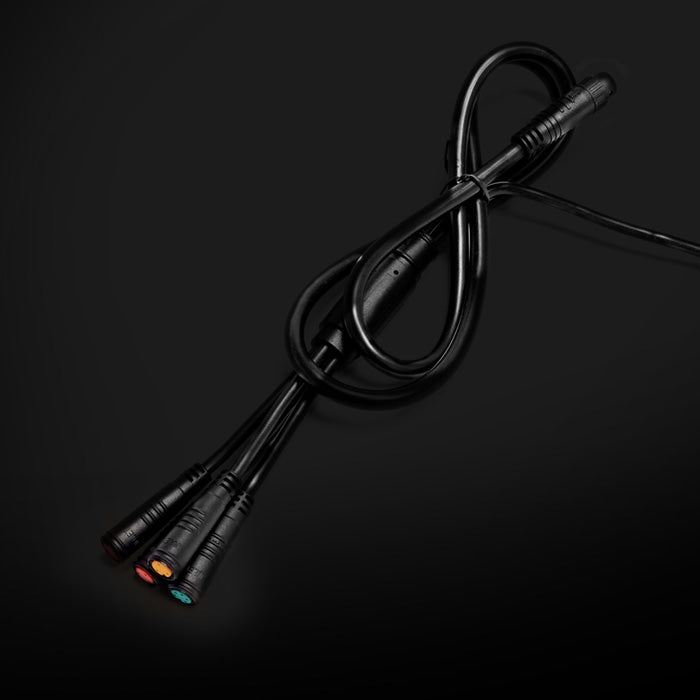

Other: Rainproof Controller and tools bag
-
DIMENSIONS AND WEIGHT
LxWxH = 200cm x 85cm x 80cm
Weight = 45kg
-
