Front Hub Motor
The stock shown is the physical count in our warehouse as of today. It is an inventory position, not a guarantee of what is available to order, because it can include:
- floor and display units that are not for sale
- damaged units that we do not offer to dealers
- units already allocated to open orders, which we fulfil first in, first out
If a figure is below 10, contact your dealer rep to confirm actual availability before placing your order.
350W Nominal, 550W Max Power, 32km/h, front hub motor
350W Nominal, 550W Max Power, 32km/h, front hub motor, Small size with simple structure, light weight and long life, super power, high efficiency, beautiful, high speed motor with gear, drive is very free and fluent, best choice for Li-ion battery on e-bike.

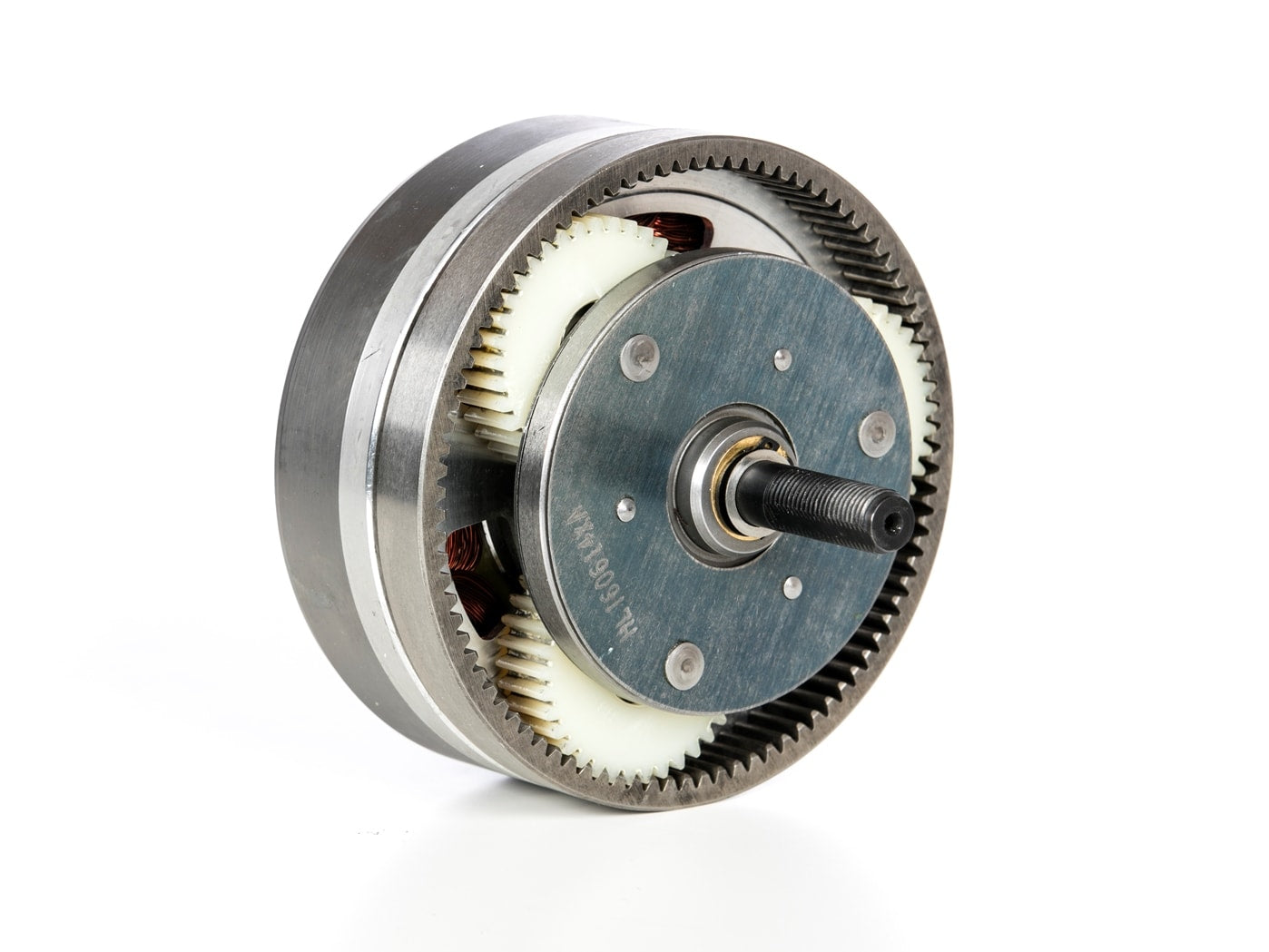

- Motor Type: DC Brushless Geared Hub Motor
- Motor Power: 550/350W Max/Nominal
- Voltage: 36V
- Max Torque: 60Nm @17A
- Efficiency ≥80%
- 36 Spokes
- Flange for disc brake
- Waterproof connector

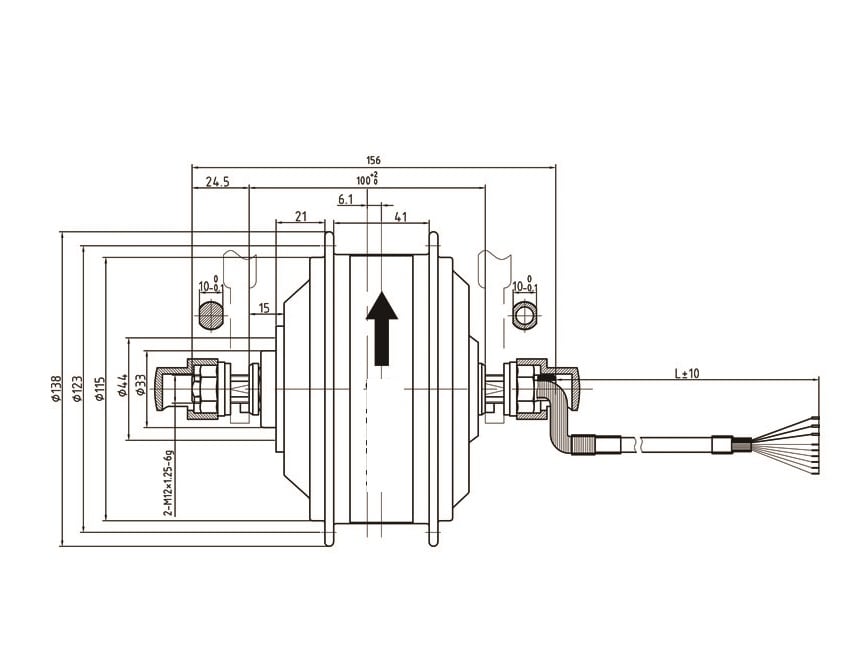

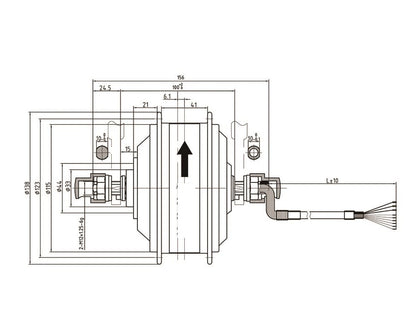

- Axle=100mm, Diameter=128mm.
- Weight=2.7kg
- Phase angle 120 degree
- Manufacturer: MXUS
- CE, EN15194 certifications
Front Hub Motor Material:
- Wheel, A356 Aluminum
- Magnet, 38SH
- Wire(winding), QZ-3/155
- Iron core, DW470
- Bearing, C&U
Currently out of stock. Order now for fulfillment starting in October.
