500W

Rated Power

32Km/h

Max Speed

200Km

Range

180Kg

Payload Capacity

32Kg

Total Weight
Flex Overland
Flex Overland
Flex Overland

Flex Overland

$3,429.00

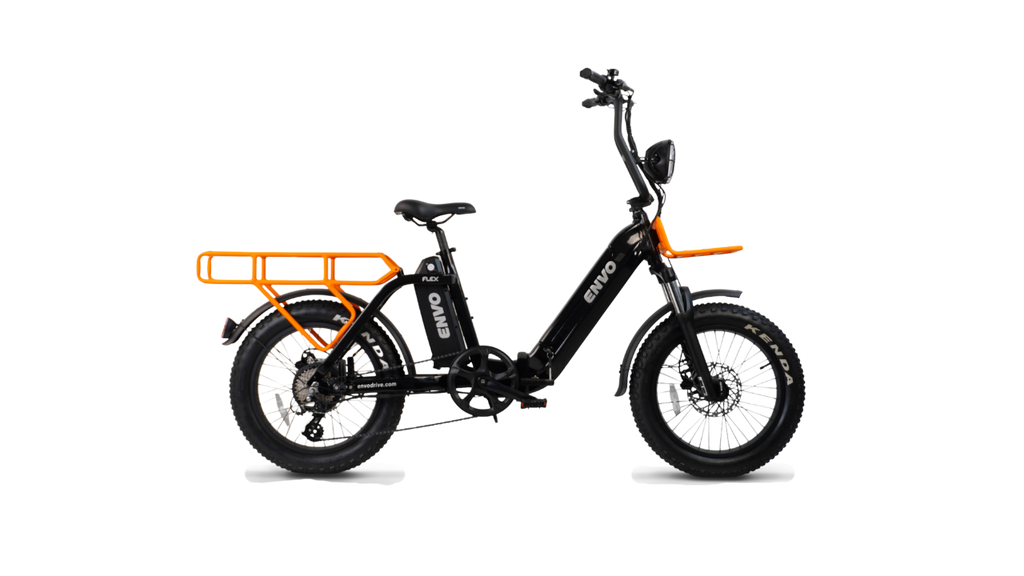

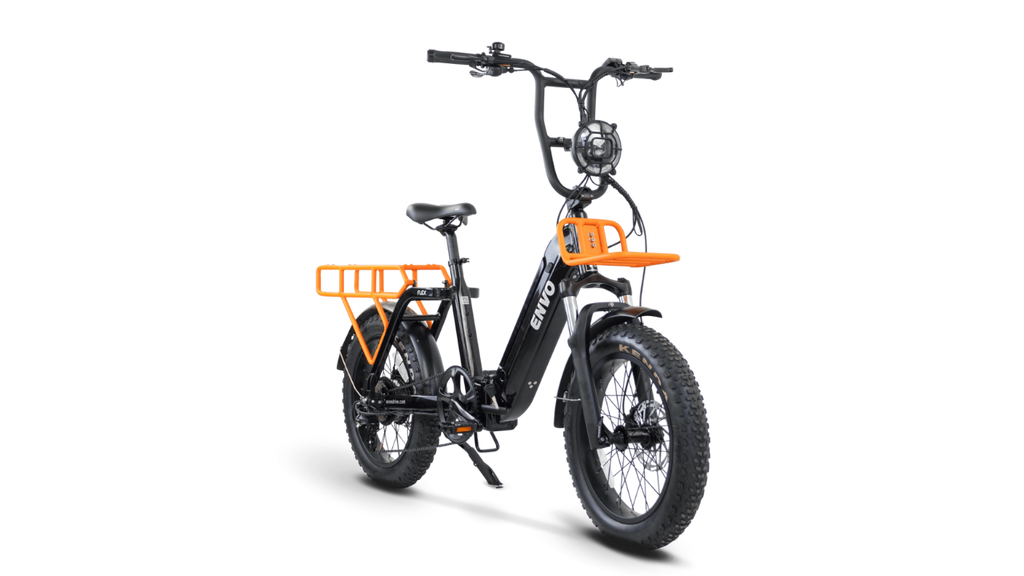

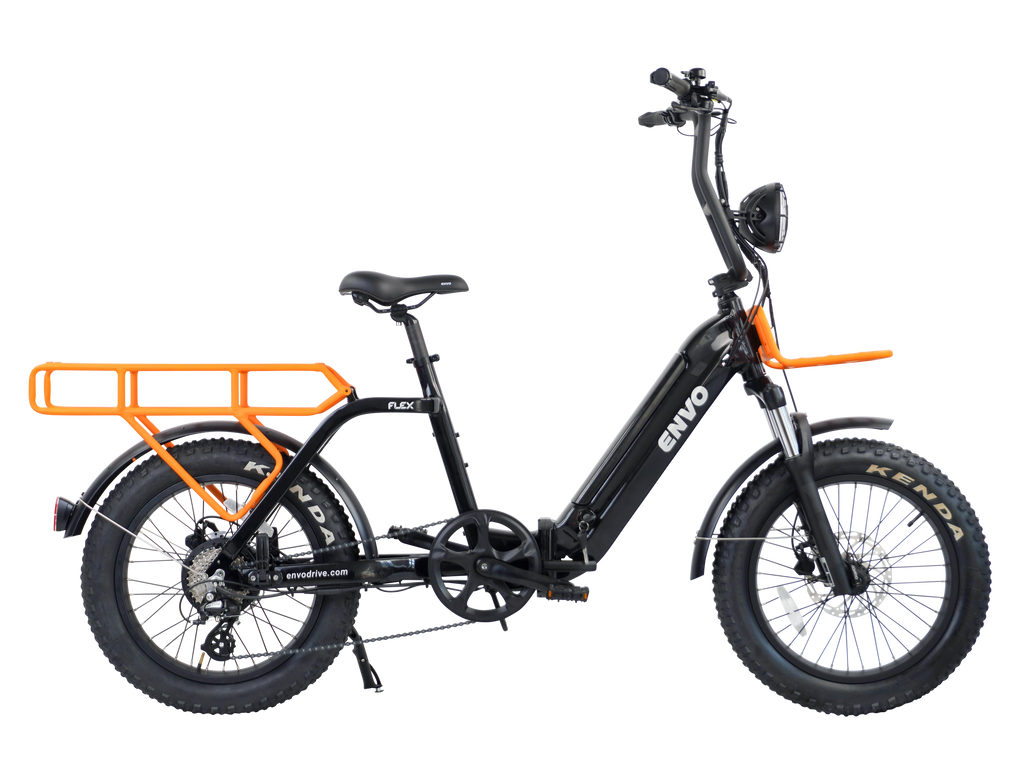

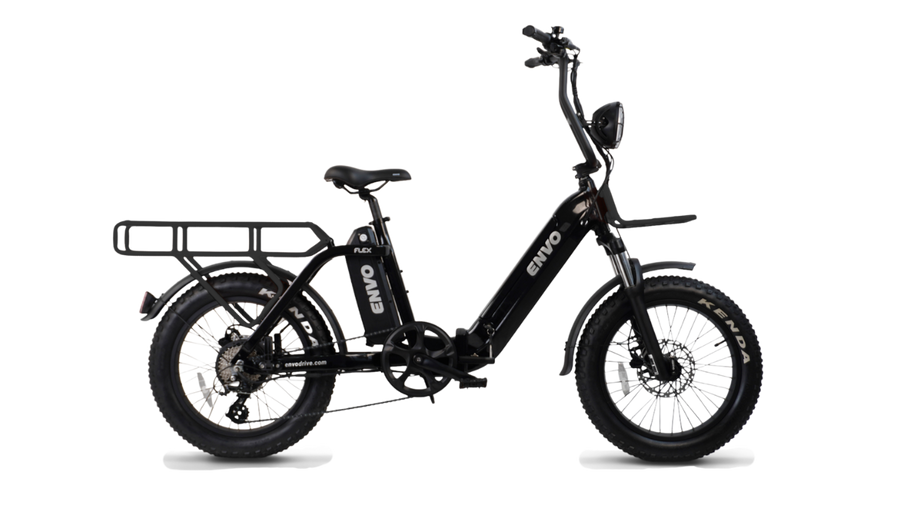

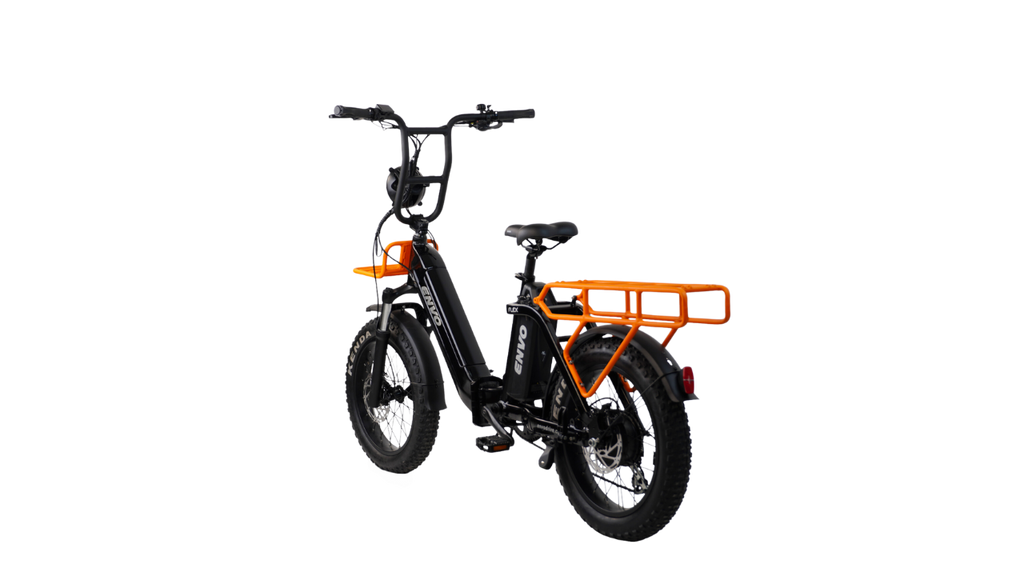

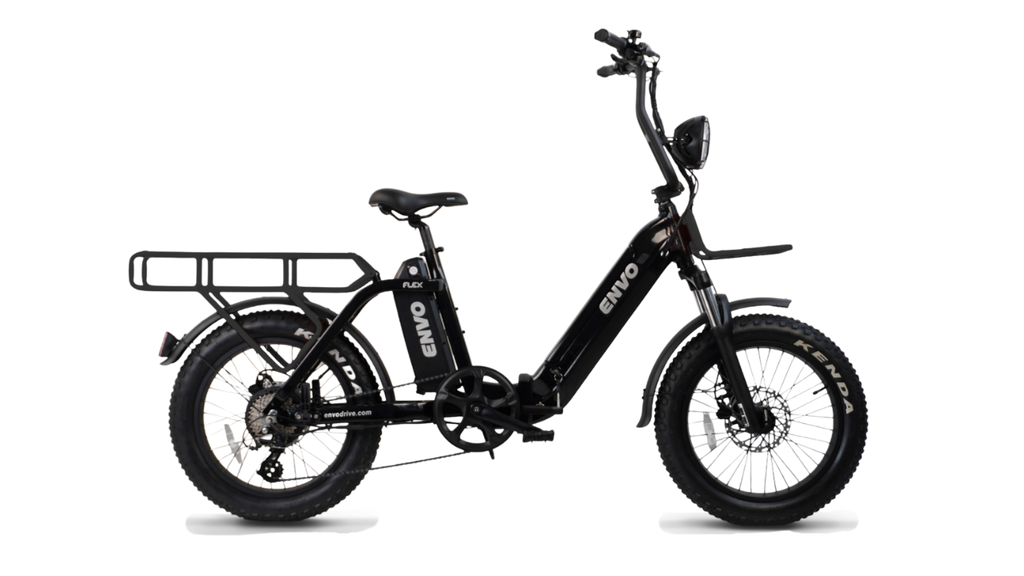

Engineered in Canada, the Flex Overland is a sturdy off-roading and cargo fat tire eBike with foldable aluminum unisex and unisize step-thru design and dual battery option. The proprietary rear hub delivers the up to 500W power, allowing you to climb the sharpest of hills and carry your cargo effortlessly. Flex Overland is designed for 1000W and up to 50 Km/hr. speed, the current release is set to 500W rated and 32 Km/hr. speed to keep it street-legal.

Carrier/Rack Size:Long
Carrier/Rack Color:Black
Battery:Single
32 Km/h Max Speed
Limited for regulatory reasons
200-300 Km
With Single or Dual Battery
400 lb
Rated for 180Kg payload capacity

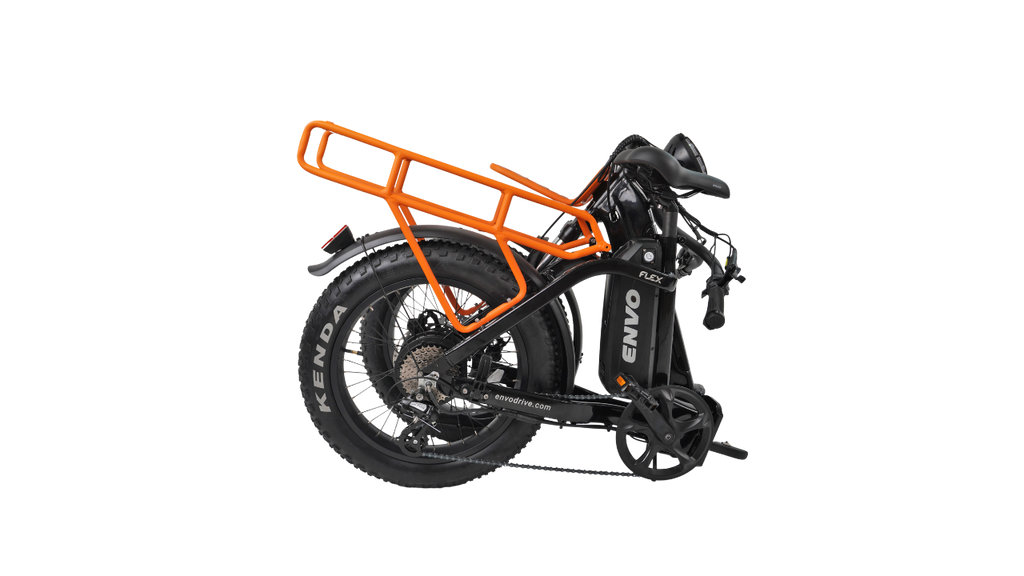

Foldable Step Thru Frame
The Only Folding Cargo Bike in Market
Lightest & Most Compact eTrike
in Cargo Category
Lowest Q-factor
of Any Fat Trike in Market

Using ENVO Flex You Can Indulge in Adventures Throughout The Year on Trails and Snow.

ENVO Flex allows you the FLEXibility to upgrade and change your eBike as your requirements change over time. The Flex Overland can be easily converted into the Flex SnowBike with the help of modular design components, allowing you the utility of two products on one platform.

ESE – ENVO Sustainable Engineering

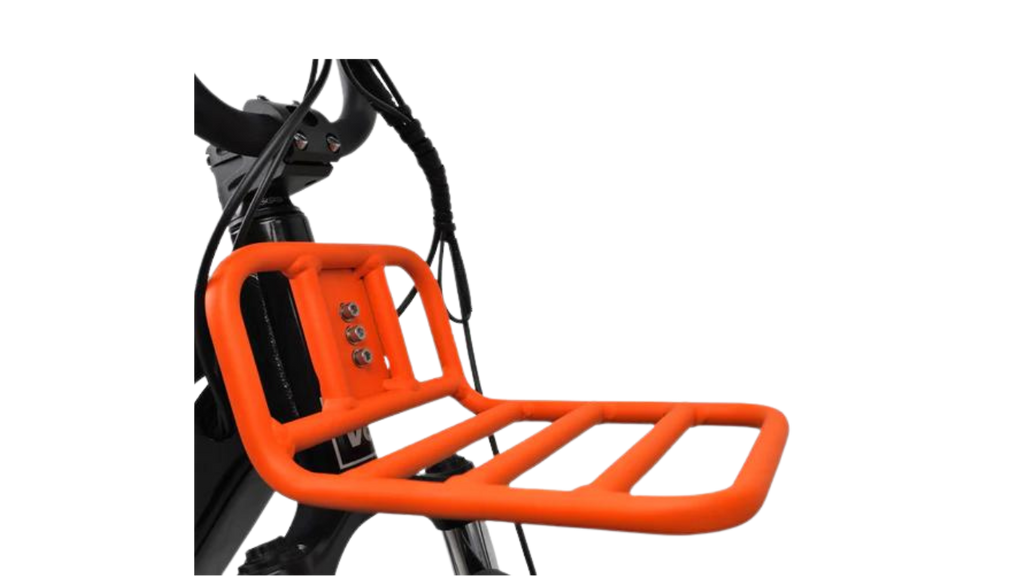

Full cargo capacity, with front and rear racks and
in conjunction with add-ons.

Torque emulating smooth PAS, providing incomparable riding experience.

20 x 3.5 in. fat off-road tires – perfect for low noise and low dragyet provides adequate grip and load capacity

Standard bike add- ons compatible
such as surfboard holder, golf bag holder, etc.

48V17Ah battery pack
additional 48V17Ah dual battery option available)

FRAME

The Flex is built with a solid, lightweight, foldable and unisex hydro- formed aluminum alloy frame suitable for people from 4’11’’all the way to 6 5” rider. It is capable of supporting up to 400lbs of payload and offers astep-thru design, which makes it easy for the rider to get on and off. The frame is specially designed to minimize all the vibrations and noise from the drive-system, the right wheelbase for a high speed and a pleasurable ride on both paved and unpaved roads.

BATTERY PACK

The ENVO Battery powering the Flex Overland is a lizard styled, super lightweight, down tube mounting Li-Ion pack in a stylish thin ABS case with an auto-connect socket, a charge indicator, security lock. The battery is removable and can reach a range of up to 200 km per charge on pedal assist level 1. The battery can be charged on or off the bike frame using the little portable CC-CV smart Li-Ion battery charger. The ENVO Battery is an A-grade branded Li-Ion battery, comprising of LG or Panasonic Li-Ion cells and a BMS that avoids battery from overcharging, overloading, and other hazardous activities, thereby increasing both cyclic and calendar life of the battery. Battery cells have been selected for best operating in freezing temperatures.

E-ASSIST SYSTEM

The ENVO Flex is equipped with an advanced pedal-assist sensor with an optimized torque emulation software. The advanced torque emulating Pedal Assist Sensor (PAS) signals the controller to run the motor between 5 levels of pedal assist, providing a boost to your pedaling depending on the level of assistance you select while riding. The ENVO Flex is equipped with an on-demand thumb throttle that gives you an extra boost which activates the motor proportionally to the twist, does not matter if you are pedaling, to give you a fully electric ride in case you cannot pedal or need an instant acceleration or uphill push.

GEARED MOTOR HUB

ENVO FLEX Overland is equipped with a sealed, powerful, upkeep free, geared hub motor that offers 500W power and 80Nm torque. Our motors are designed efficiently and hence are lighter than most powered geared hub motors in Canada, yet they deliver high torque and efficiency. These ENVO motors are developed for over 20,00Km maintenance-free ride.

ADJUSTABLE STEM

The FLEX Overland comes with an adjustable high rise handlebar, this lets the rider do the ergonomic fine tuning allowing them to choose efficient pedaling position.

TIRES

Flex Overland comes with 20inch off-road style fat tires. These fat tires are cushion enough to improve ride comfort, dynamic maneuverability, and handling in different terrains. Tires are fat and knobby enough for the best grip on wet cement, asphalt paved, dirt or gravel trails which creates minimum noise and drag for normal urban paved rides.

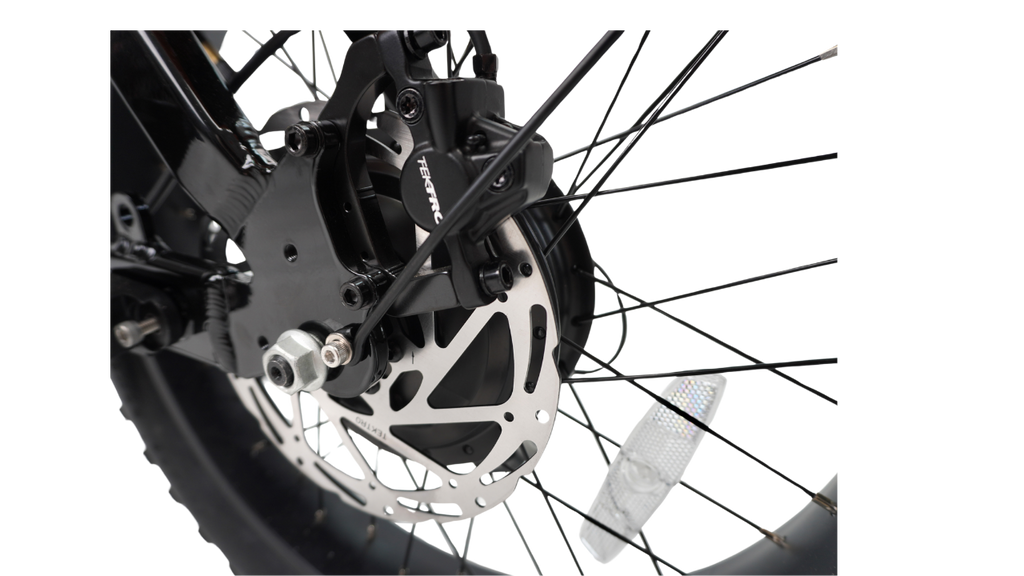

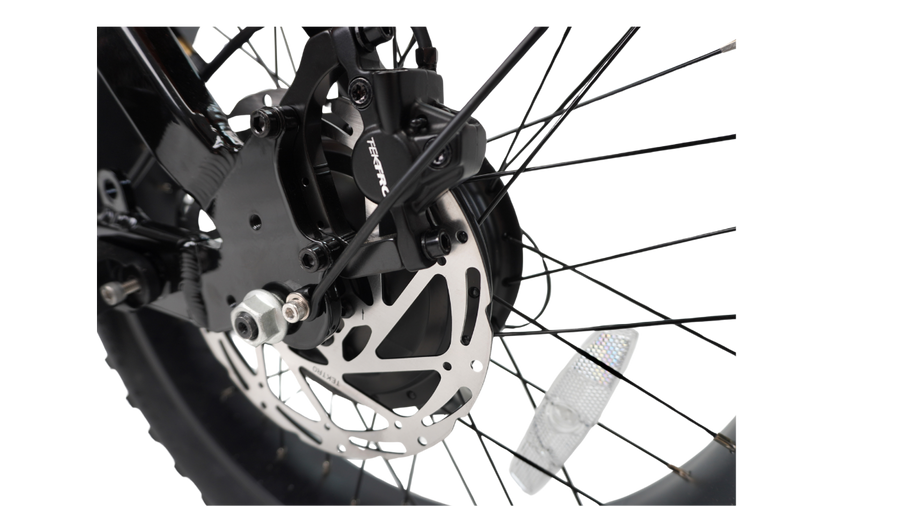

HYDRAULIC DISK BRAKE

Top of the line hydraulic disk brakes equipped with electric cut-off sensors provide more safety to the bike as well as the rider.

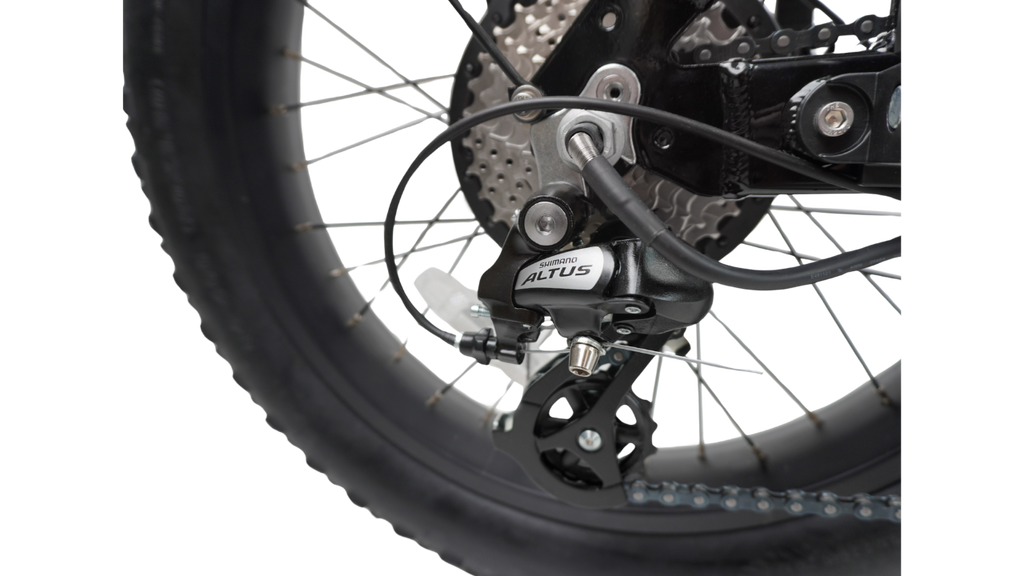

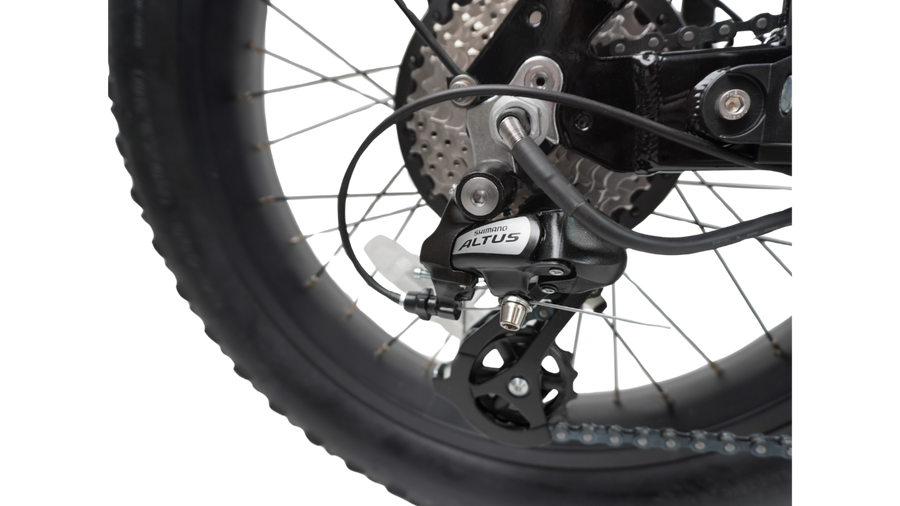

TRANSMISSION SYSTEM

Well-engineered 52T chain ring and 6 speed 11-32 teeth cassette transmission help you overcome up to 25% grade when climbing a hill on gear 1 or 40km/h speed on gear 6 with gentle peddling.

FORK

Adjustable pre-load, lockable suspension fork with 80mm of travel adds to high-speed stability and handling on trails and asphalt. It reduces the shocks to the frame and battery system and provides ultimate comfort.

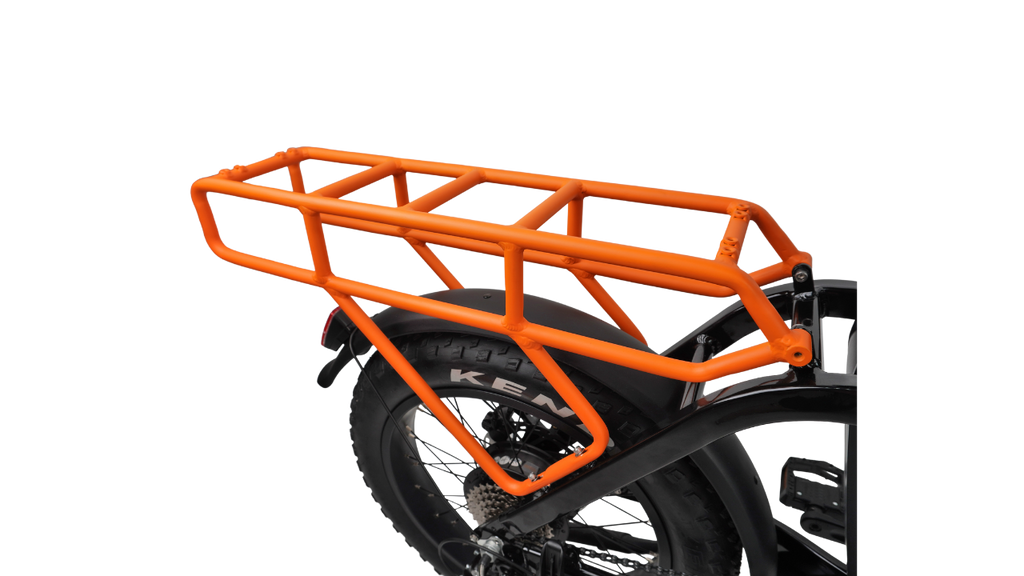

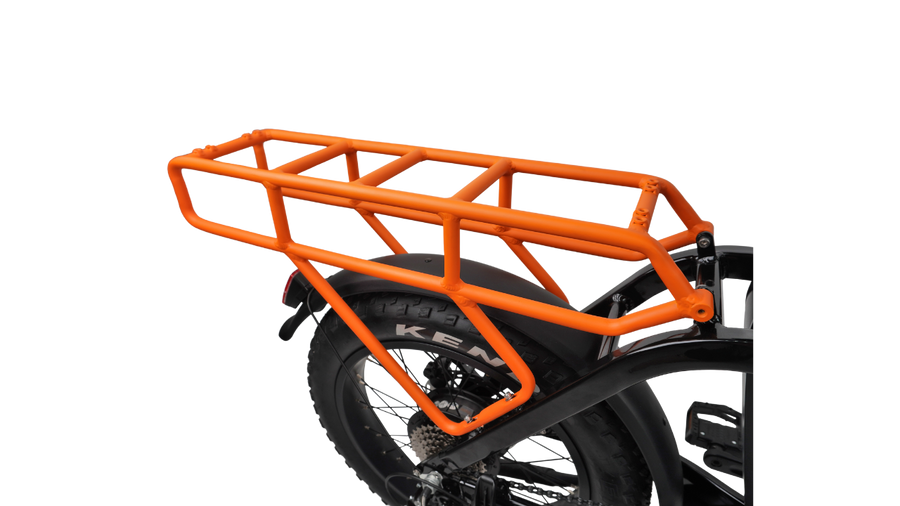

REAR RACK

ENVO Flex comes with a specially designed cargo rear rack with rating of 150 lbs weight and capable of fitting two child seats. The rear rack comes with a cushion allowing a second adult to ride on the e-bike.

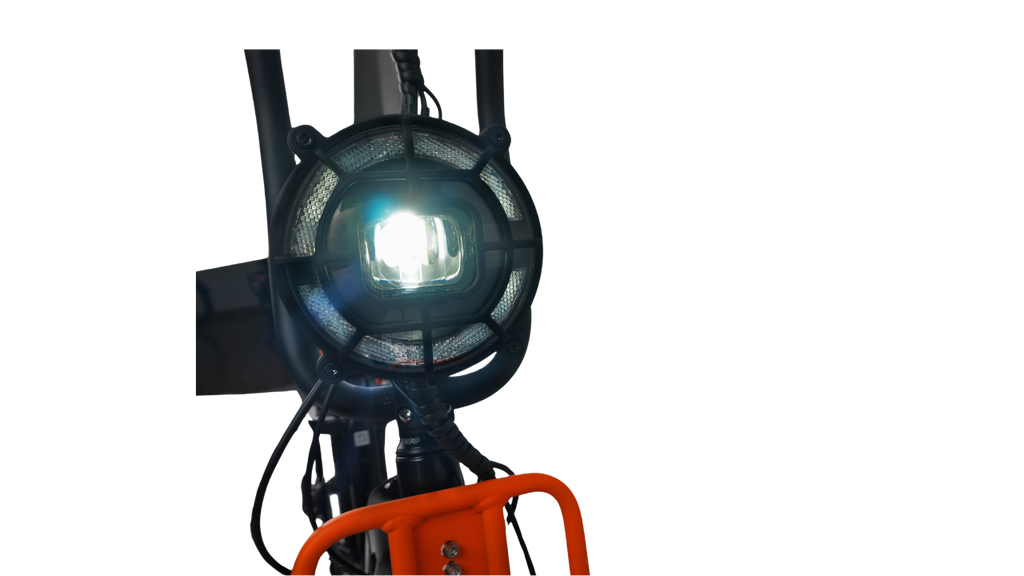

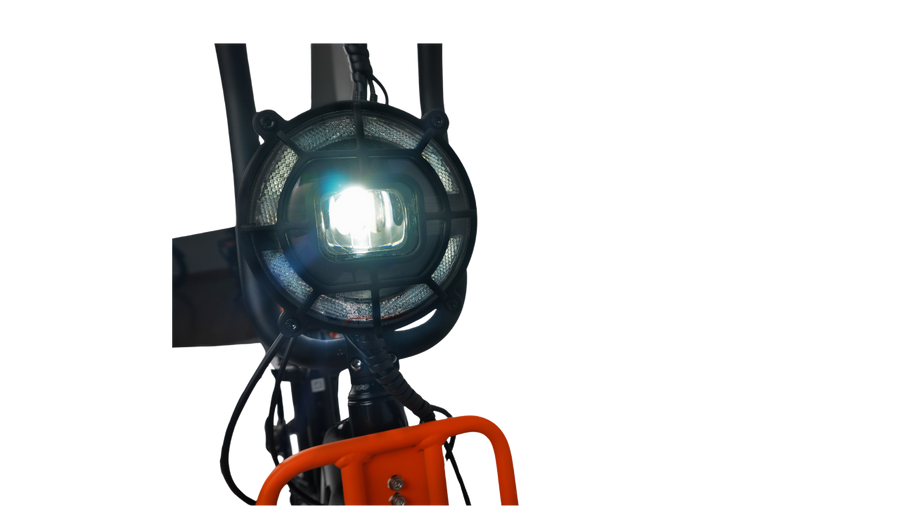

HEADLIGHT

TheFLEX Overland is fitted with high efficiency and bright LED headlight powered by the main battery and controlled by a keypad on the handlebar.

ENVO Flex Urban is Accessory Ready

Flex is designed to support third-party accessories such as golf carrier, surfboard carrier, ski carrier, dog carrier, and pannier bags making it the favorite Companion for the off-road adventures.

Golf Carrier

Surfboard Carrier

Dog Carrier

Toddler Carrier

Ski Carrier

Pannier Bags

Flex Overland Transformation

As a bonus the Flex Overland allows you the ability to adapt two products using the same platform. Using modular design components, the Overland can easily be transformed into the Flex SnowBike giving the outdoors man a winter option that is light weight and easily transportable.

Electronics

Rear Hub

Battery

48V, 17.5Ah

Controller

48V, 500W

Display

LCD Display with speedometer, odometer, pedal-assist indicator, etc

Hub Motor

500W

Lights

Brake triggered Backlight

Pedal Assist

5 Level Pedal assist

Wiring

Water Resistant Wiring

Mechanical Components

  • Flex Overland Size Chart



    Flex Overland Sizing Chart


Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
R
Ryan
Life changer

Juts about the size of a small ebike, FLEX is compact enough to store it in my garage unfolded, yet offers me or my wife to ride with both kids.
Good torque and power. I have no problem with hills around North Vancouver Lynn Valley area.
