32 Km/h
Max Speed
500W
Max Power
60 Nm
Max Torque
100 Km
Range
22.8 Kg
Total Weight
ENVO ST Electric Bike
$2,679.00
The ENVO ST offers the ultimate accessible mobility. Featuring a low-step design for easy mount and dismount, the ST offers a maximum of 500W of street-legal power and a range of up to 100 km.
ESE – ENVO Sustainable Engineering
Proprietary Rear Hub Motor
Pedal-assist and Throttle
Hydraulic Disk Brakes
Front Suspension
Up to 100Km Range
ENVO ST electric bike offers the ultimate accessible mobility
Engineered to be a full-featured, no compromise bicycle first, with the added benefit of power assist when you need it. Switch the power off and experience the unparalleled ride quality of this hybrid bicycle.
Perfect for commutes and pleasure ride mostly pave road
Suitable for pople below 130kg weight, up to 190cm (6’4”ft) tall
Light-weight frame to carry on boat, car, plane, transit, etc.
Continuous up-hills with 10-15% road grade

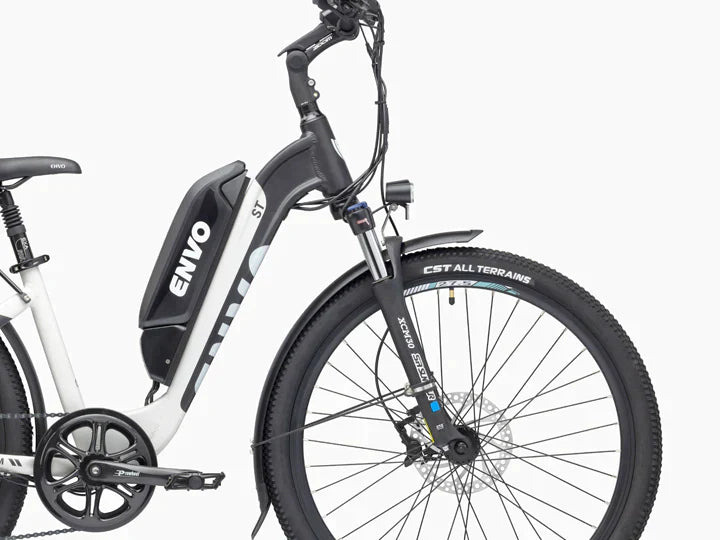

FRAME
The ENVO ST is built with a solid, super lightweight, stylish and unisex hydro-formed aluminum alloy frame is a small and large frame size suitable for people from 5’ all the way to 6’6” rider. It is capable of a rider up to 300lbs and offering an ergonomic shape, which makes it easy for the rider to get on and off. The frame is specially designed to minimize all the vibrations and noise from the drive-system, the right wheelbase for a high speed and a pleasurable ride on both paved and unpaved roads.

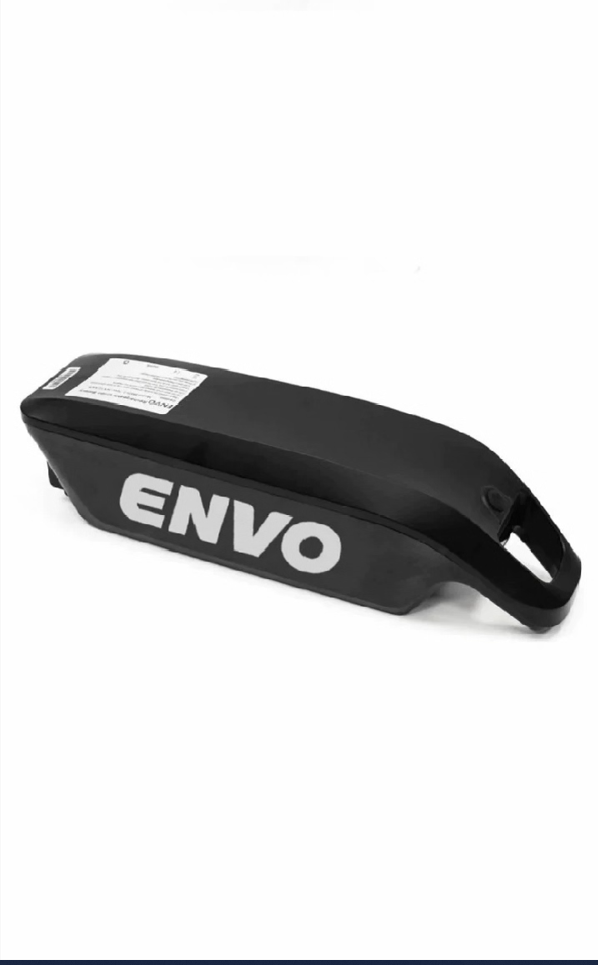

BATTERY PACK
The ENVO Battery powering the ST is a lizard styled, super lightweight, down tube mounting Li-Ion pack in a stylish thin ABS case with an auto-connect socket, a charge indicator, security lock and accessories. The battery is removable and can reach a range of up to 100 km per charge on pedal assist level 1. The battery can be charged on or off the bike frame using the little portable CC-CV smart Li-Ion battery charger. The ENVO Battery is an A-grade branded Li-Ion battery, comprising of LG or Panasonic Li-Ion cells and a BMS that avoids battery from overcharging, overloading and other hazardous activities, thereby increasing both cyclic and calendar life of the battery. Battery cells have been selected for best operating in freezing temperatures.

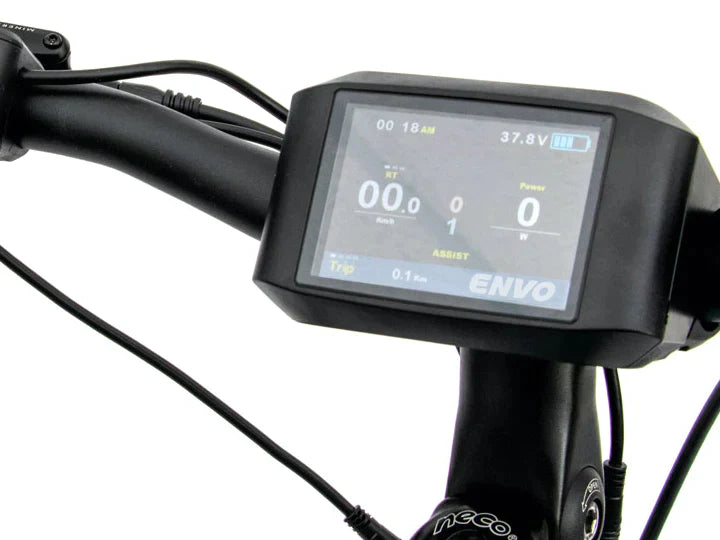

E-ASSIST SYSTEM
The ST is equipped with an advanced pedal-assist sensor with an optimized torque emulation software. The advanced torque emulating Pedal Assist Sensor (PAS) signals the controller to run the motor between 5 levels of pedal assist, providing a boost to your pedalling depending on the level of assistance you select while riding. The ST is equipped with an on-demand thumb throttle that gives you an extra boost which activates the motor proportionally to the twist no matter you pedal or not to give you a fully electric ride in case you cannot pedal or need an instant acceleration or uphill push.

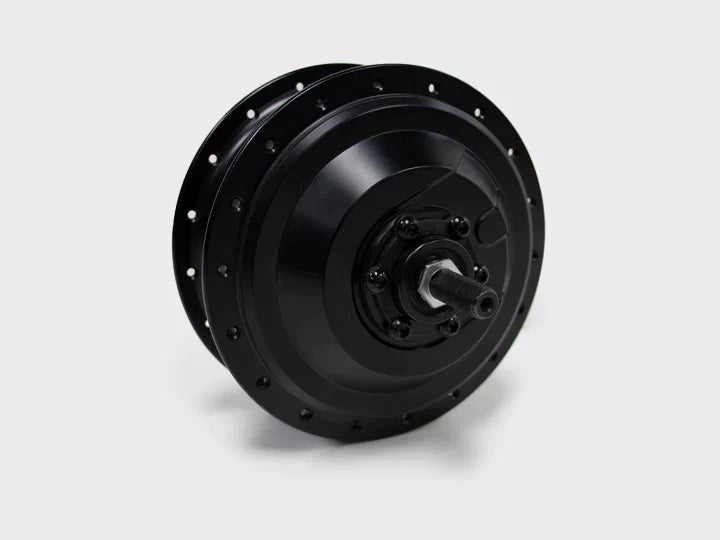

GEARED MOTOR HUB
ENVO ST is equipped with a sealed, powerful, upkeep free, geared hub motor that offers 500W power and 60Nm torque. The bike is a street-legal bike with legalized speed, torque and power all over Canada and most parts of the US. Our motors are 50% lighter than all the rest powered geared hub motors in Canada, yet they deliver 50% more torque and 25% more battery efficiency. These ENVO motors are developed for over 20,00Km maintenance-free ride.
TIRES
27.5″x1.95 tires, the best proven outer diameter for a commuter bike (i.e. 700C) but more cushiony which improves ride comfort, dynamic manoeuvrability, and handling in different terrains. Tires are fat and knobby enough for the best grip on wet cement, asphalt paved, dirt or gravel trails which creates minimum noise and drag for normal urban paved rides.

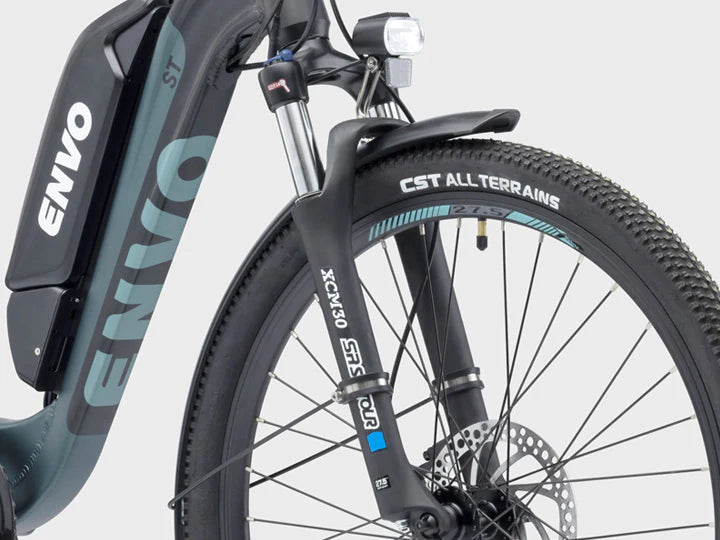

FORK
Adjustable, lockable fork with solid 30mm fork legs adds to high-speed stability and handling on trails and asphalt. It reduces the shocks to the frame and battery system and provides ultimate comfort.
AJUSTABLE STEM
The adjustable handlebar stem on the ST, lets the rider do the ergonomic fine-tuning whether you like an absolute upright or performance pedalling position.

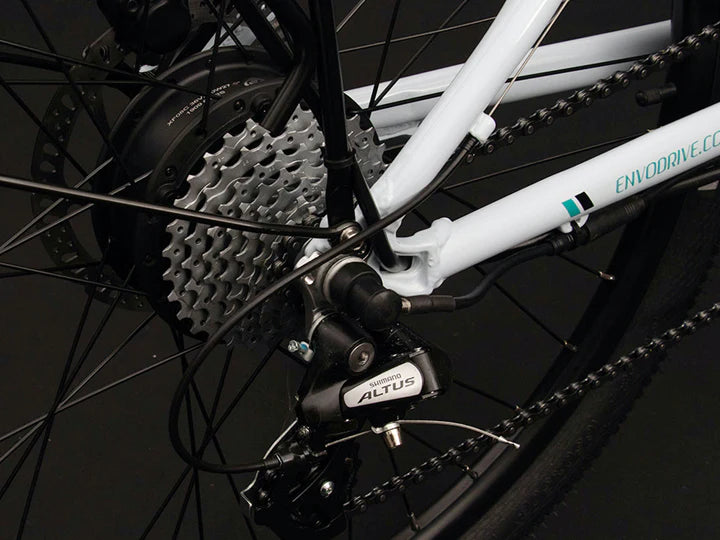

TRANSMISSION SYSTEM
Well-engineered 8 speed 48T chainring and 11-32 cassette Shimano Altus transmission help you overcome up to 25% grade when climbing a hill on gear 1 or 40km/h speed on gear 8 with gentle pedaling.

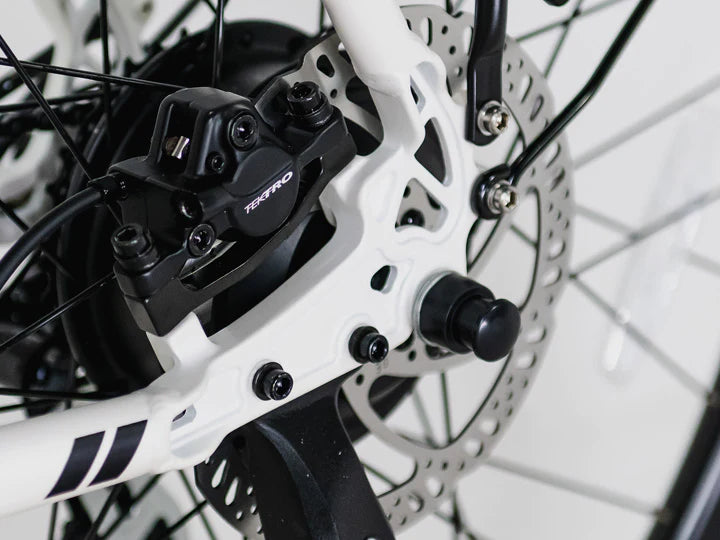

HYDRAULIC DISK BRAKE
Top of the line hydraulic disk brakes equipped with electric cut-off sensors provide more safety to the bike as well as the rider.
ENVO ST ELECTRIC BIKE
Gallery
Frame
27.5 X1.95, Hydro-formed Alloy 6061 TIG welded
Fork
Zoom 595S AMS /SR Suntour, 27.5 X1.95 Suspension fork, with load adjustment and lock,Travel 80mm
Headsets
thread less headsets, φ25.4×44×30mm，22mm,NECO
Handlebar
alloy handlebar, 31.8mm TP22.2x680mm, 65mm,30 degree
Stem
alloy thread-less stem, φ25.4*E110mm,adustable, sand black, MA-579, PROMAX
Brake Set
F/R alloy hydraulic disc brakes, black ,with alloy electric brake lever , Rotor 180,Zoom HB 875-E/Tektro HD-E350
-
SIZING CHART
Seat Tube
The seat tube height should be adjusted as such that while peddling your leg should not be fully extended at the bottom of the pedal, and your leg should not push against your body on the upswing.
Effective Top Tube
The effective top tube length impacts your reach, if the top tube length is too long your body will be stretched and that may cause back pain and if the length is too short you may find it difficult to handle the bicycle. Our products feature an adjustable handlebar stem which lets the rider do the ergonomic fine-tuning.
Stand over
For a comfortable experience, there must always be at least an inch or so space between you and the top tube on your bike when you are standing flat-footed. You can measure your inseam length and check that value against the table provided below.
ENVO D35 & ST ebike
Unboxing & Assembly Instructions
ENVO ST Electric Bike Review
See what former customers have to say about the ENVO ST ebike.
Customer Reviews
I can't begin to express my gratitude for the support and generosity shown by Mehta at EbikeBC and ENVO Drive Canada, in helping to re-outfit me with an ENVO ST after my beloved 'Jade' was stolen. My e-bike is my only transportation, and as a senior on a fixed income, I was devastated.
Their compassion for my situation and quick actions (to get me a new bike) says so much about these folks, on many levels. It is so refreshing and unexpected to receive such genuine and over-the-top service. And a shout out to Bruce and Heather at Island Cycle for getting the bike together and reoutfitted for me. It only reinforces to me that the cycling community is a passionate and supportive collective!
I love, love, love the new e-bike. Being that it is black and white, I have affectionately named it Skana (in homage to BC's iconic Orca). Here she is, all outfitted and ready to roll.
#ebikebc, #envobike, #islandcycle
Très satisfait de nos nouveaux vélos
Très confortable, silencieux et tout fonctionne très bien.
Un produit de qualité que nous recommandons sans retenu
I had decided on an e-bike once I sold 2 motorcycles, to get me from home to the Bowling Club, which is 9.5 km away. This would help me get some fitness back and save on gas.
I went to the local shop, went for a ride on an ST and I was hooked. I went for the 15" in white, as I am only 5'8" and have short legs. I hadn't been on a bike for years and the first night I went for a 23 km ride, which was easy and got it up to 44 kph easily. I like the ride height and with a white helmet am easily seen. I have been riding it to the Club at level 1 to the Club and level 2 for the return as it is a little uphill and I am tired after working on the green. I don't think though that I will get anywhere near 100 km per battery charge which I am disappointed with and am wondering if I made the right choice now. Any comments ?
Received my 15" ENVO ST ebike last week and I'm delighted with it. Such a smooth ride and I love all the features. Makan Namazi, thank you! You sure helped me with my decision to pick the right bike for me. I'm now the fourth member of my family to get an ENVO bike. Pretty excited about it

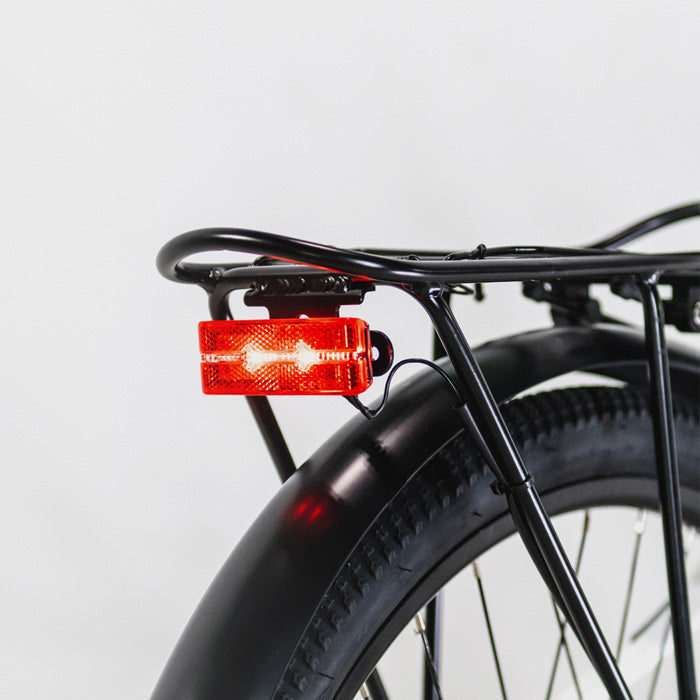

Dianne and I are loving our Canadian ENVO Bikes! We are riding every day. Dianne got an ENVO ST and mine is an ENVO D35. They ride like a dream and around Greensville\Dundas ON there are a lot of trails that we are just discovering. I only have 1 small complaint.... I love Dianne's brake light on her ST...I would have loved mine to light up but, its not a perfect world... LOL...Happy Canada Day and Happy Cycling!
