ENVO Lynx-20 Folding eBike

CAD $2,179.00

Clear

ENVO Lynx is the compact full featured pedal assist electric bike developed in an OEM partnership by ENVO drive systems. Capable of 130KG rider weight up to 6’ 4” Lynx-20 is the best choice for any application that transportability and compactness matters. It is well suited for combined transportation in conjunction with cars, bus, motor homes, boats, and light aircrafts or condo lifestyle.

To offer the 500W maximum legal power and up to 100Km range, ENVO Lynx design does not compromise weight, look or ergonomic features, to maintain a “bicycle” characteristic with added the extra boost. This is where ENVO electric bikes are differentiated with most of its competitors. Switch the power off and experience the ride quality of the best compact foldable bicycle.

Popular demand made us out of stock earlier than expectations.
Delivery starts August 2021

  • Weight: 21KG
  • Battery: 36V 12.8Ah LG/
  • Panasonic Motor: Geared hub motor, 500W, 60Nm torque
  • Controller: 5 levels of assist + Thumb throttle
  • Frame: Custom Drawn T6-Aluminum Foldable e-bike
  • Tires: City 20″ x2.35″
  • Cassette/Freewheel: 11-28, 7-Speed Freewheel
  • Seat post: 50mm Battery container telescopic adjustable
  • Stem: QR folding, with telescopic height adjustment Brake Levers: 3-Finger
  • Brakes: Mechanical Disk-Brake
  • Brake Levers: 3-Finger with cut-off switch
  • Color: Black
  • Unfolded dimensions: 168*59*112 CM (66″ x 23″ x 44″)
  • Folded dimensions: 93*48*70 CM (37″ x 19″ x 28″)
  • Charger: CC-CV 42V 2A

Features:

  • Folding electric bike 500W geared motor system with battery in the seat tube
  • 500W Max Power
  • Max Speed 32km/h
  • Range per single charge (average): 70km
  • Max Torque 60Nm

Suitable For:

  • Commutes and pleasure ride mostly paved road
  • People below 130kg weight, up to 190cm (6’4”ft) tall
  • Compact, light-weighted foldable frame to carry on boat, car, plane, transit, etc.
  • Continuous up-hills with 10-15% road grade

https://envodrive.com/wp-content/uploads/2021/06/ENVO_Lynx20_Sizing-Charts-scaled_web.jpg

The top tube of the bicycle and the ground plane: 22″ (55.84 cm)
Note: This is a non-traditional bike so minimum leg length does not necessarily guide the bike sizing. We suggest minimum height of the rider to be 5 feet and maximum height to be 6’2’’

There is no text review yet.

GEARED HUB MOTOR

ENVO Lynx is equipped with a sealed, powerful, geared hub motor which offers 500W power and 60Nm torque. The bike is a street legal bike with legalized speed, torque and power all over Canada and US. Our motors are 50% lighter than all the rest powered geared hub motors in Canada, yet they deliver 50% more torque and 25% more battery efficiency. These ENVO motors are developed for over 20,000Km maintenance free ride.

E-ASSIST SYSTEM

The Lynx is equipped with an advanced pedal assist sensor with an optimized torque emulation software. The advanced torque emulating Pedal Assist Sensor (PAS) signals the controller to run the motor between 5 levels of pedal assist, providing a boost to your pedalling depending on the level of assist you select while riding. The Lynx is equipped with an on-demand thumb throttle that gives you an extra boost which activates the motor proportionally to the twist regardless of pedalling to give you a fully electric ride in case you cannot pedal or need an instant acceleration or uphill push.

The LCD interface gives the rider access to all monitoring and setting features such as ODO, speed, battery charge level, as well as diagnostics in case of a failure through which you can fix issues yourself using the manuals or with the help of our technical customer service.

BATTERY PACK

The stylish, removable, high-performance and super reliable A-grade 36V 12.8Ah Li-Ion battery pack gives an average 50km round trip range on level 4-5 of assist or more than 100km on level 1-2. Although the battery is hidden in an structural part (seat post) making a clean and minimal design, it is simply accessible for replacement, transport and repairs.

DISK BRAKE

Top of the line 160mm disk brakes are equipped with electric cut-off sensors for more safety.

FRAME

The ENVO Lynx is built with a solid, super lightweight, stylish and unisex aluminium alloy frame. The frame is suitable for people in all form of heights. It is capable for a rider up to 300lbs and offering an ergonomic shape, which makes it easy for the rider to get on and off. The frame is specially designed to minimize all the vibrations and noise from the drive-system, the wheelbase optimized for most compact foldable size while providing a smooth and stable high speed, pleasurable ride on paved and unpaved roads.

TIRES

20″x2.35” tires, is cushiony enough to improve ride comfort, dynamic manoeuvrability, and handling in different terrains. Tires are fat and knobby enough for the best grip on wet cement, asphalt paved, dirt or gravel trails which creates minimum noise and drag for normal urban paved rides.

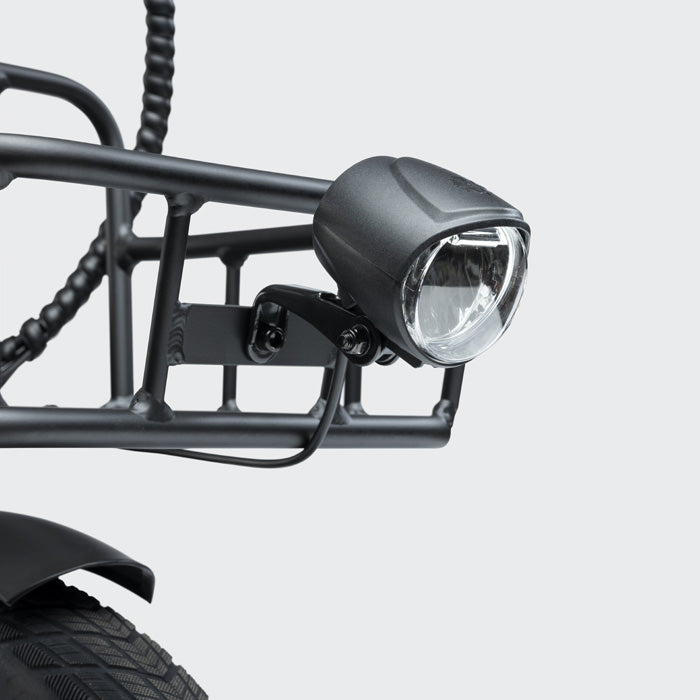

HEADLIGHT

The ENVO Lynx is fitted with high efficiency and bright LED 40 LUX headlight powered by the main battery and controlled by a keypad on the handlebar.

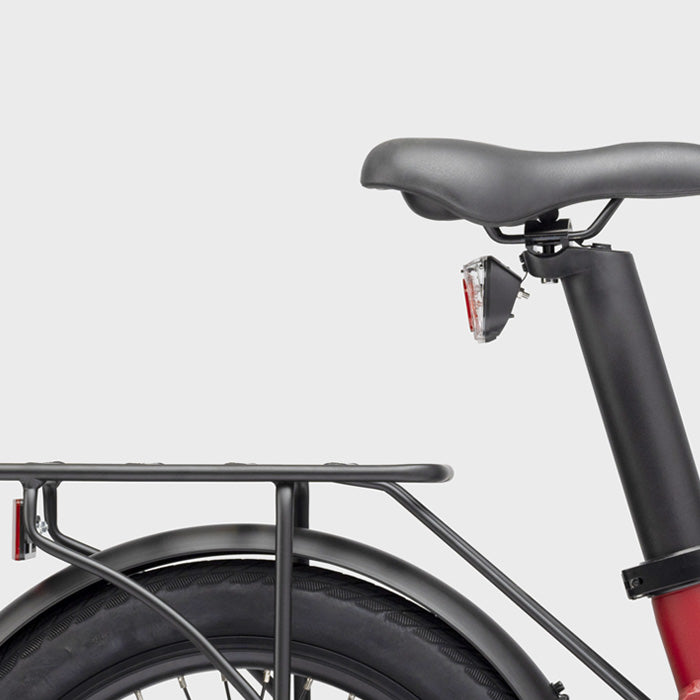

TAILLIGHT

Taillight and reflector provide more safety riding in the dark. It powers up once the headlight is switched on.

TRANSMISSION

Top of the line 7 speed derailleur and shifter with 52 to 11 gear ratio lets you accompany pedalling gently up to 35km/h. Well-engineered 7 speed 28T chain ring and 11-32 cassette Shimano transmission helps you overcome up to 25% grade when climbing a hill on gear 1 or 40km/h speed on last with gentle peddling.

HANDLEBAR STEM

Telescopic adjustable height and QR detachable handle bar brings the most compactness when folded without compromising the ergonomic riding posture.

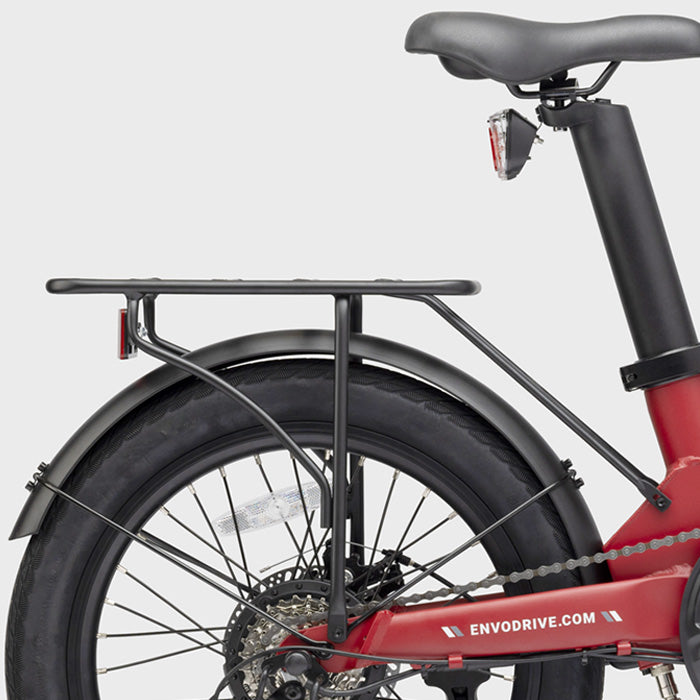

REAR CARRIER RACK

Attach a full-size pannier for errands and commutes.

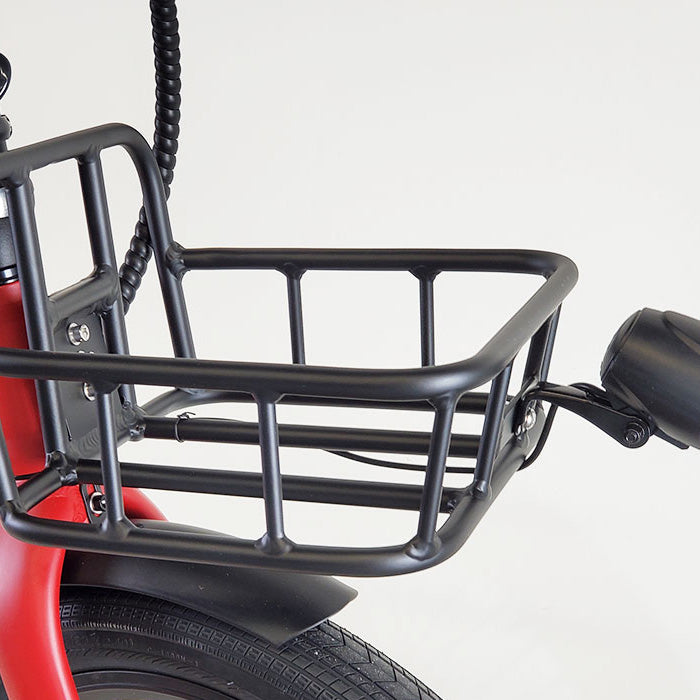

FRONT CARRIER RACK

Make it your utility ebike! You get it all when you buy a Lynx-20.
