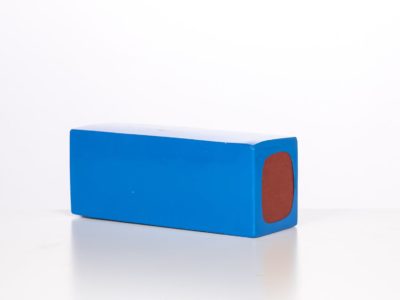

Bare battery 12.8Ah
$575.00
Li-Ion pack without casing
The bare battery is a versatile battery. Use this battery for your electric bike kit configuration if you have battery placement Idea other than what we provide. The bare batteries come in different capacities you need to select.
Li-Ion pack without casing
The bare battery is a versatile battery. Use this battery for your electric bike kit configuration if you have battery placement Idea other than what we provide. The bare batteries come in different capacities you need to select.
Battery Pack Specification:
LG MH1 or equivalent Specification:
The bare battery is a versatile battery. Use this battery for your electric bike kit configuration if you have battery placement Idea other than what we provide. The bare batteries come in different capacities you need to select.
- Li-Ion 36V 12.8Ah
- Energy : 450h
- Max Power: 900W
- Average Range for 350W class city use: 55Km
- Standard recharge time 6 hours
Li-Ion pack without casing
The bare battery is a versatile battery. Use this battery for your electric bike kit configuration if you have battery placement Idea other than what we provide. The bare batteries come in different capacities you need to select.
- Li-Ion 36V 12.8Ah
- Energy : 450Wh
- Max Power: 900W
- Average Range for 350W class city use: 55Km
- Standard recharge time 6 hours
- Approximate dimensions: 200x80x70 mm
Battery Pack Specification:
- PVC covered 18650Cells and BMS pack
- No. of cells 40/10S4P
- Internal Impedance ≤100mΩ
- Max. Charge Voltage 42V
- Normal Charge Current 2A
- Cut-Off Discharge Voltage 30V
- Charging Model CC/CV
- Charge Temperature 0-45°C
- Discharge Temperature -20-55°C
- Motor Range 36V250-500W
- BMS PCB 37V 10cell
- 2.5Kg
LG MH1 or equivalent Specification:
- Nominal Capacity 3200mAh (0.2C discharge)
- Charging Voltage 4.2V
- Nominal Voltage 3.6V
- Charging Method CC-CV (constant voltage with limited current)
- Charging Current Standard charge: 1600mA Rapid charge : 3200mA
- Max. Charge Current 3200mA
- Max. Discharge Current 10000mA
- Discharge Cut-off Voltage 2.75V
- Cycle Life Guaranteed (70% Original discharge capacity) > 500
- Cell Weight 48g max
- Cell Dimension Diameter(max.) : Φ 18.4 mm Height : 65mm max
- Operating Temperature Charge : 0 to 45℃ Discharge: -20 to 60℃
- Storage Temperature 1 year : -20~25℃, 3 months : -20~45℃, month : -20~60℃
