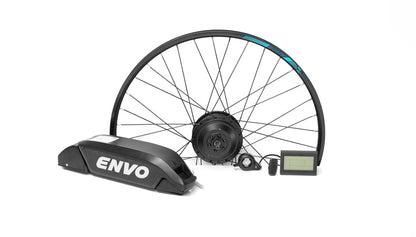

D35 Complete eBike Conversion Kit (500W Max)

[tab-title-1] Motor Specifications [tab-title-end-1] [tab-content-1]

500W Max Power, 32km/h, Hub Motor

Small size with simple structure, light weight and long life, super power, high efficiency, beautiful, high speed motor with gear, drive is very free and fluent, best choice for Li-ion battery on e-bike.

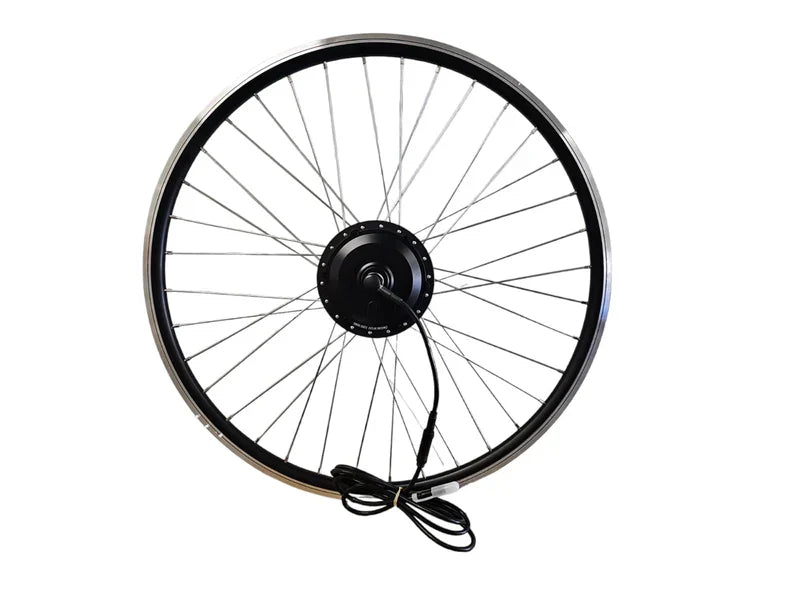

Front Hub Specs:

• Motor Type: DC Brushless Geared Hub Motor
• Motor Power: 550/350W Max/Nominal
• Voltage: 36V
• Max Torque: 60Nm @17A
• Efficiency ≥80%
• 36 Spokes
• Flange for disc brake
• Waterproof connector
• Axle=100mm, Diameter=128mm.
• Weight=2.7kg
• Phase angle 120 degree
• Manufacturer: MXUS
• CE, EN15194 certifications
• Wheel, A356 Aluminum
• Magnet, 38SH
• Wire(winding), QZ-3/155
• Iron core, DW470
• Bearing, C&U

Rear Hub Specs:

• Motor Type: DC Brushless Geared Hub Motor
• Motor Power: 550/350W Max/Nominal
• Cassette Type
• Voltage: 36V
• Max Torque: 60Nm @17A
• Efficiency ≥80%
• 36 Spokes
• Flange for disc brake
• Waterproof connector
• Axle=135mm, Diameter=138mm.
• Weight=2.9kg
• Phase angle 120 degree
• Manufacturer: MXUS
• CE, EN15194 certifications
• Wheel, A356 Aluminum
• Magnet, 38SH
• Wire(winding), QZ-3/155
• Iron core, DW470
• Bearing, C&U



[tab-content-end-1]

[tab-title-2] Battery Specifications [tab-title-end-2] [tab-content-2]

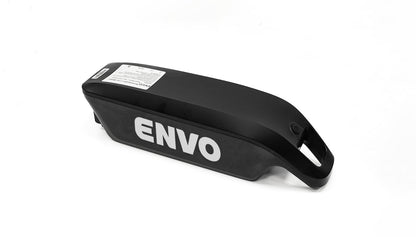

Lizard style ENVO Li-Ion battery pack in stylish thin ABS case with auto connect socket, with charge indicator, security lock and accessories.

 36V 12.8Ah ENVO battery for all electric bike conversion kits

• Li-Ion 36V  12.8Ah
• Energy : 460Wh
• Range: 35 Km on pedal assist level 5 or Throttle, 100 Km on pedal assist level 1

[tab-content-end-2]





[tab-title-3] Controller Specifications[tab-title-end-3] [tab-content-3]

LCD3 17A Controller System



LCD display and computer,

Motor Controller 36V 17A,

Thumb Throttle,

Pedal Assist Sensor,

Brake cut-off magnetic switches,

Rainproof Controller and tools bag,

Zip ties, cable shield, and installation accessories



LCD3 17A Controller System Interface:

LCD3 meter provide you with a variety of functions such as vehicle controls and vehicle status digitized displays to meet the trip demands.

Pedal Assist System (PAS) optimized to simulate the torque sensor. This computing system provides Speed limit PAS or Torque limit PAS levels from 0 to 5.

Trip time display (with displays of a single trip time (TM) and total trip time (TTM));

Trip speed display (with displays of real-time speed (Km/h or mph) and a single maximum speed (MXS) and a single average speed (AVS));

Trip distance display (with displays of a single trip distance (DST) and total trip distance (ODO));

Display of turned on the handlebar;

Display of power-assist startup;

Power assistant ratio (or handlebar) gear (ASSIST) switch;

6Km/H power assistant push function;

Cruise function (CRUISE);

Battery capacity indicator;

Real-time battery voltage (VOL) display;

Motor power and temperature (MOTOR) display; Brake display;

Turn on backlighting and lights ;

Environment temperature display;

Data clearing;

Fault code display;

User parameter setting

5' large screen

Rubber clamp spacer is provided for 3 handlebars bore sizes: 22.5mm, 25.4mm, 31.5mm

easy key button, easy control,

waterproof housing with a good appearance



LCD3 17A Motor Controller:


Brushless Motor Controller

Voltage: 36V

Min Voltage: 30+-0.5V

Max Current: 17+-1A

Speed Set: 1-4.2V

Angle: 120

Brake Input: Low-Level

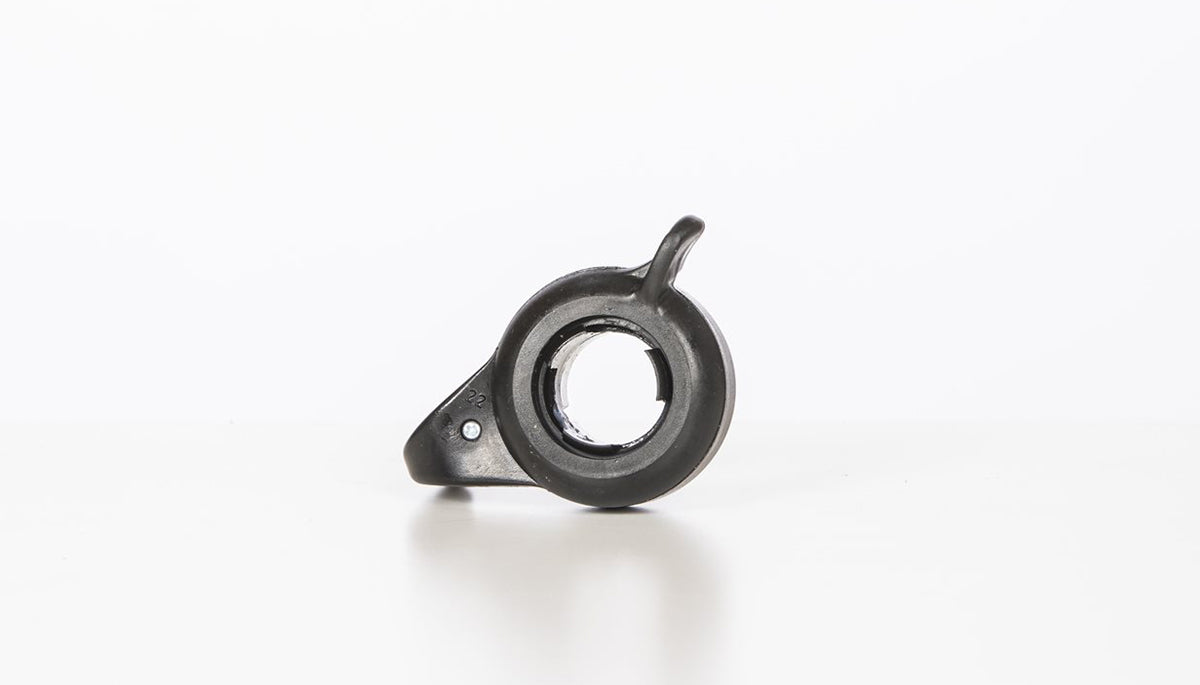

Thumb Throttle:

Haul effect sensor, Analogue linear increasing torque

Pedal Assist Sensor

2 pieces 12 Magnet easy assemble Pedal Assist Sensor,

Just stick the sensor, no need to disassemble the crank.

this sensor is compatible with optimized PAS controlling systems and provide the best pedal assist performance, rapid response and torque sensor simulation.

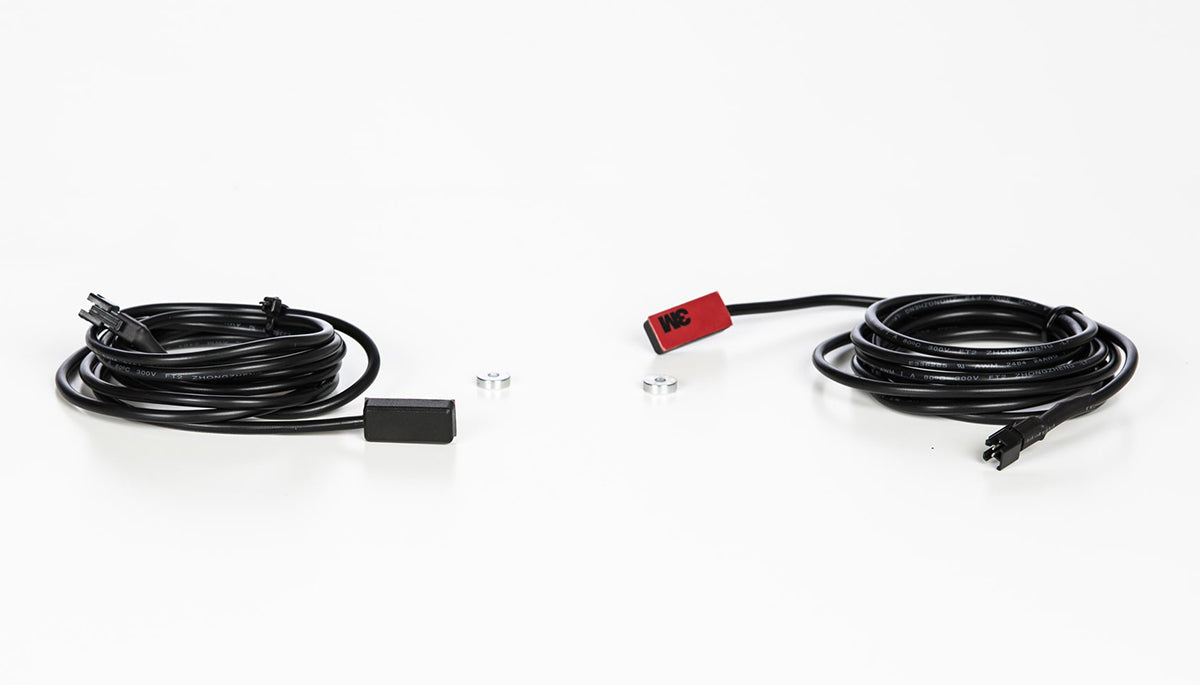

Brake cut-off magnetic switches

Just stick the magnet sensors, no need to disassemble the brake levers.

it cuts-off the motor when you brake

Rain proof Controller and tools bag



[tab-content-end-3]

[tab-title-4]Assembly Instructions and User Manual[tab-title-end-4] [tab-content-4]

English

• Manual (EN)
• Manual (FR)



[tab-content-end-4]
