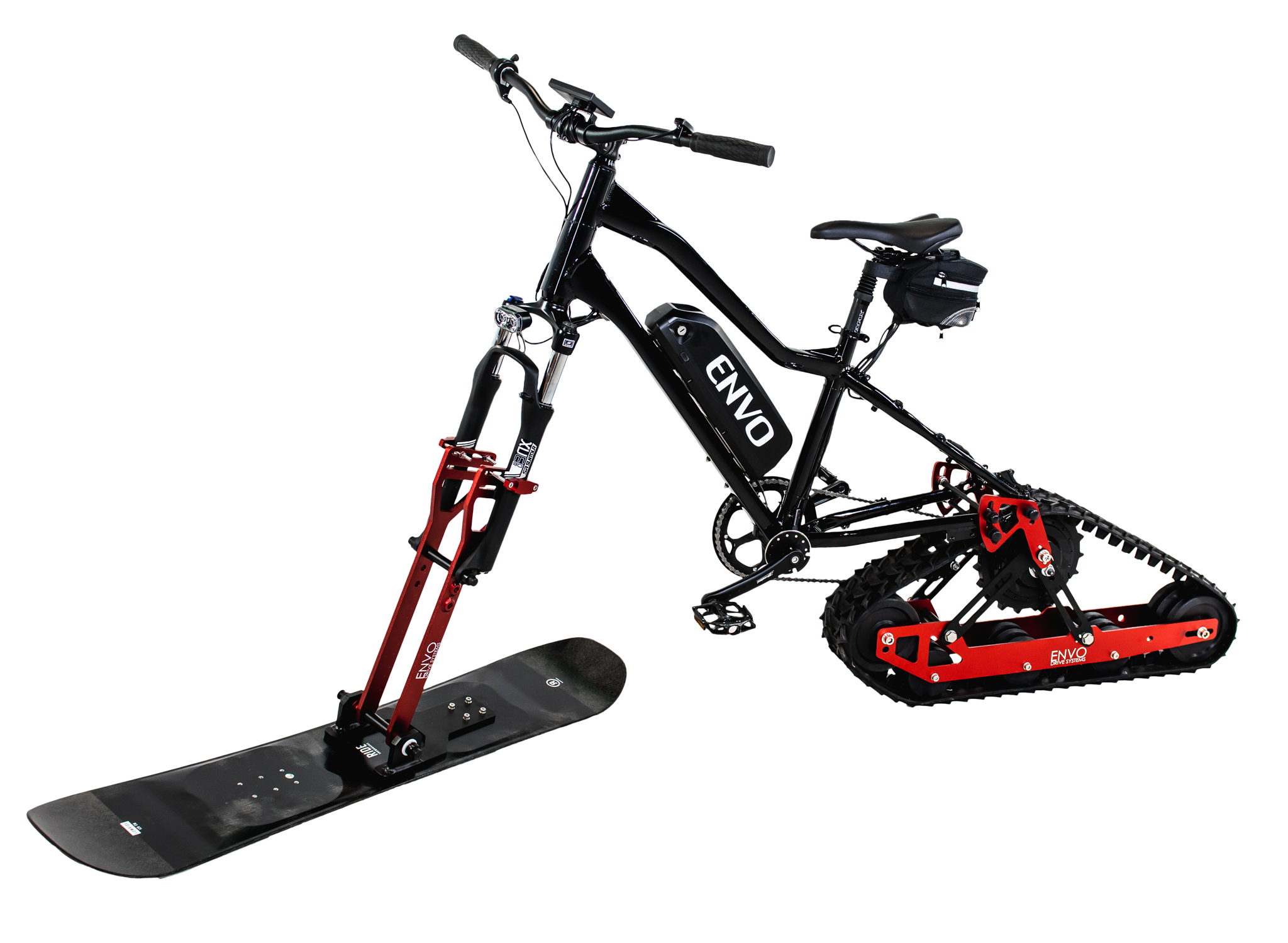

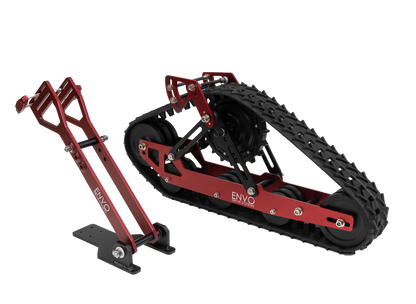

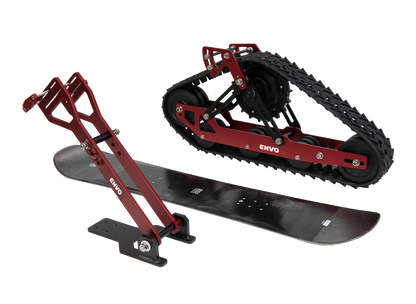

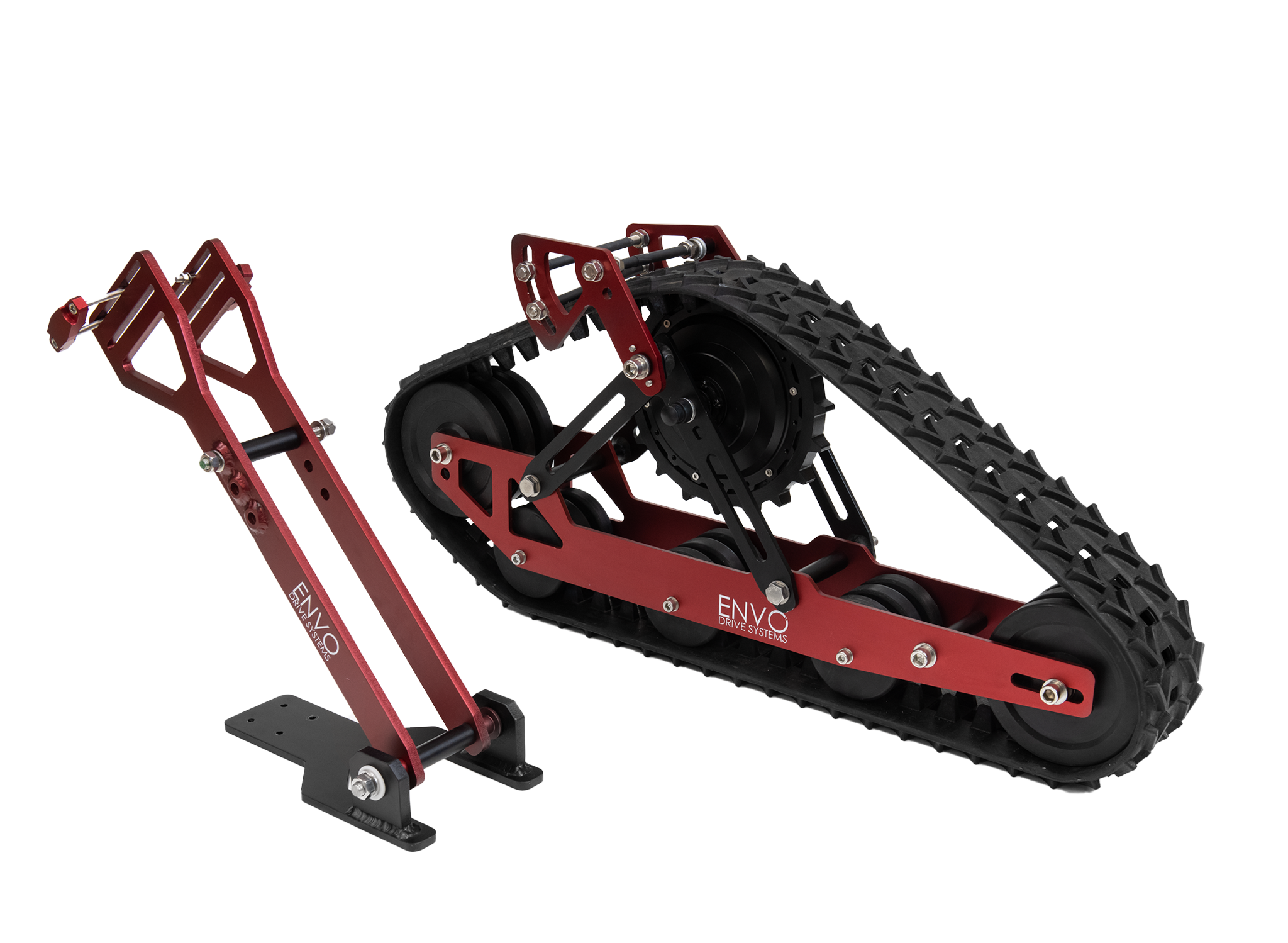

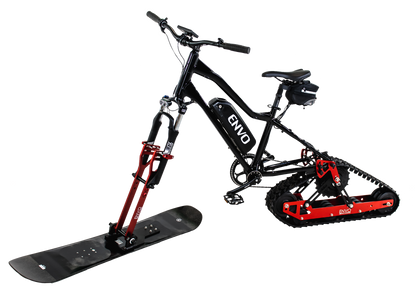

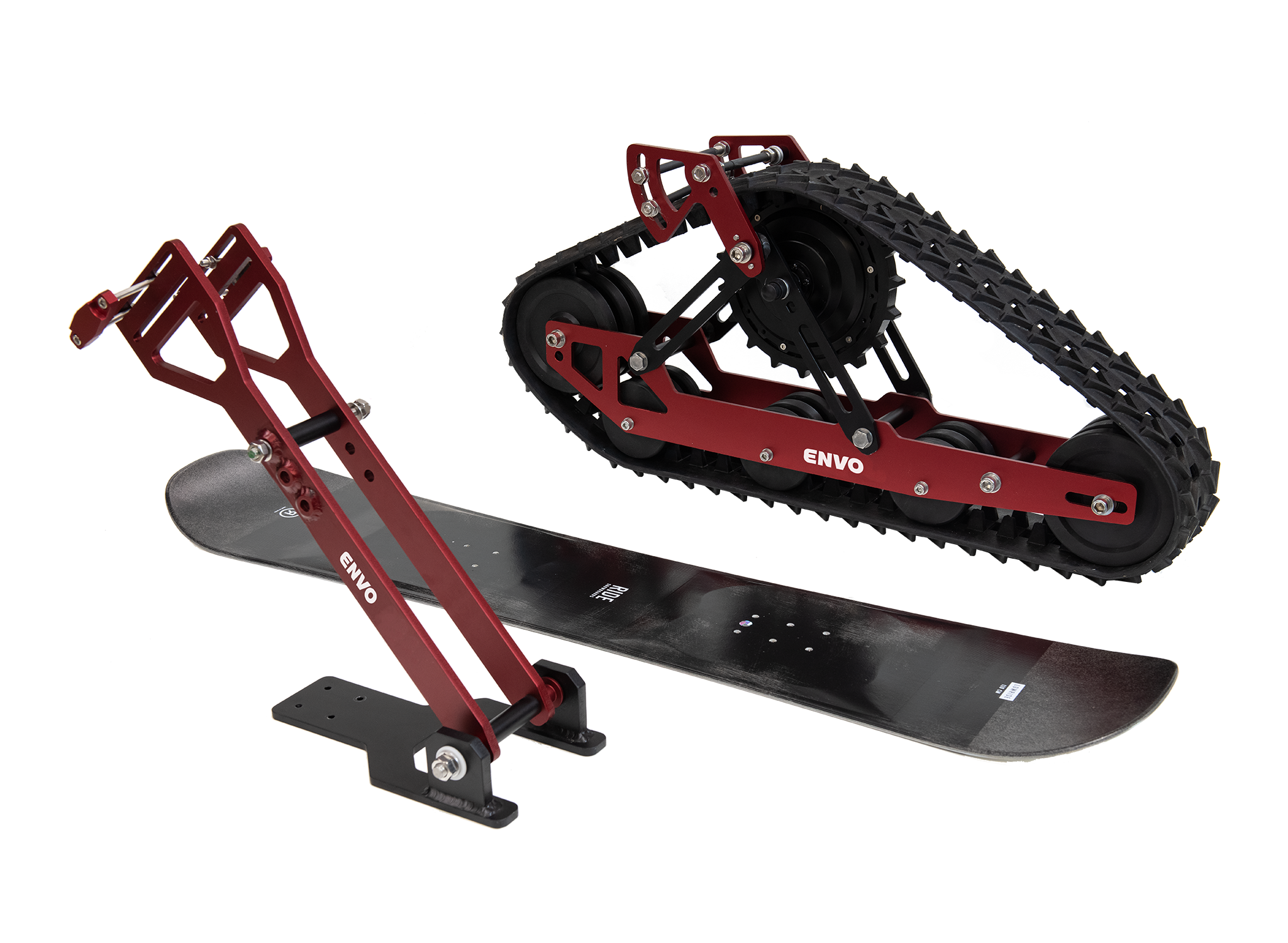

SnowBike Conversion Kit

Motor:

750W Rated (1200W Max.) Geared Motor

1200W using 48V 25A controller, hub motor, small size with simple structure, lightweight and long life, superpower, high efficiency, the beautiful, high-speed motor with gear, the drive is very free and fluent, the best choice for Li-ion battery on an e-bike for the rough road, higher weights, and higher grade-ability.
Motor Type: DC Brushless Geared Hub Motor
Motor Power: 750W /1200W
Motor Voltage: 48V
Motor Max Torque: 120Nm @25A
Motor Efficiency: ≥80%
Sun-planetary reduction gears with regenerative braking option
36 Spokes, Flange for disc brake, Waterproof connector
Axle=135 mm, Diameter=177 mm
Weight= 4 kg
The phase angle of 120 degree

Motor Manufacturer:

MXUS
Waterproof and protection grade: IP54
Noise level 55 dB
CE, EN15194 certifications

Motor Controller:

Brushless Motor Controller

Display Computer:

LCD3 meter provides you with a variety of functions such as vehicle controls and vehicle status digitized displays to meet the trip demands. Trip time display (with displays of a single trip time (TM) and total trip time (TTM)); Trip speed display (with displays of real-time speed (Km/H or MPH) and a single maximum speed (MXS) and a single average speed (AVS)); Trip distance display (with displays of a single trip distance (DST) and total trip distance (ODO)); Display of turned on the handlebar; Display of power-assist startup;
6Km/H power assistant push function;
Cruise function (CRUISE);
Battery capacity indicator;
Real-time battery voltage (VOL) display;
Motor power and temperature (MOTOR) display;
Brake display;
Turn on backlighting and lights;
Environment temperature display;
Data clearing;
Fault code display;
User parameter setting
5′ large screen
Rubber clamp spacer is provided for 3 handlebars bore sizes: 22.5mm, 25.4mm, 31.5mm
Easy key button, easy control,
Waterproof housing with good appearance

Thumb Throttle:
Haul effect sensor, Analogue linear increasing torque

Battery:

The Lizard battery is a battery you can mount on a frame tube using special clamp nuts. The battery can be locked to its support or un-lock and slide out to remove.
Li-Ion 48V  17.5Ah
Battery energy: 840Wh
Battery max power: 1700W
Standard recharge time 8 hours

Battery Pack Specification:
PVC covered 18650Cells and BMS pack
SANYO GA 3500
Charging Model CC/CV
Charge Temperature 0-45 °C
Discharge Temperature -20-55 °C

Battery Charger Voltage:
54.6V
4.5 kg

Battery dimensions:
370 x 110 x 90 mm

Material:
Wheel A356 Aluminum, Magnet 38SH, Wire(winding) QZ-3/155, Iron core DW470, Bearing C&U
Black glove box not included

Motor Voltage:

48V
Min Voltage: 42+-0.5V
Max Current: 25+-1A
Speed Set: 1-4.2V
Angle: 120
Brake Input: Low-Level

Pedal Assist Sensor:

2 pieces 12 Magnet easy assemble Pedal Assist Sensor, Just stick the sensor, no need to disassemble the crank. This sensor is compatible with optimized PAS controlling systems and provides the best pedal assist performance, rapid response and torque sensor simulation.

Brake cut-off magnetic switches:
Just stick the magnet sensors, no need to disassemble the brake levers. It cuts-off the motor when you brake. Electric regenerative braking

Other:
Rainproof Controller and tools bag
