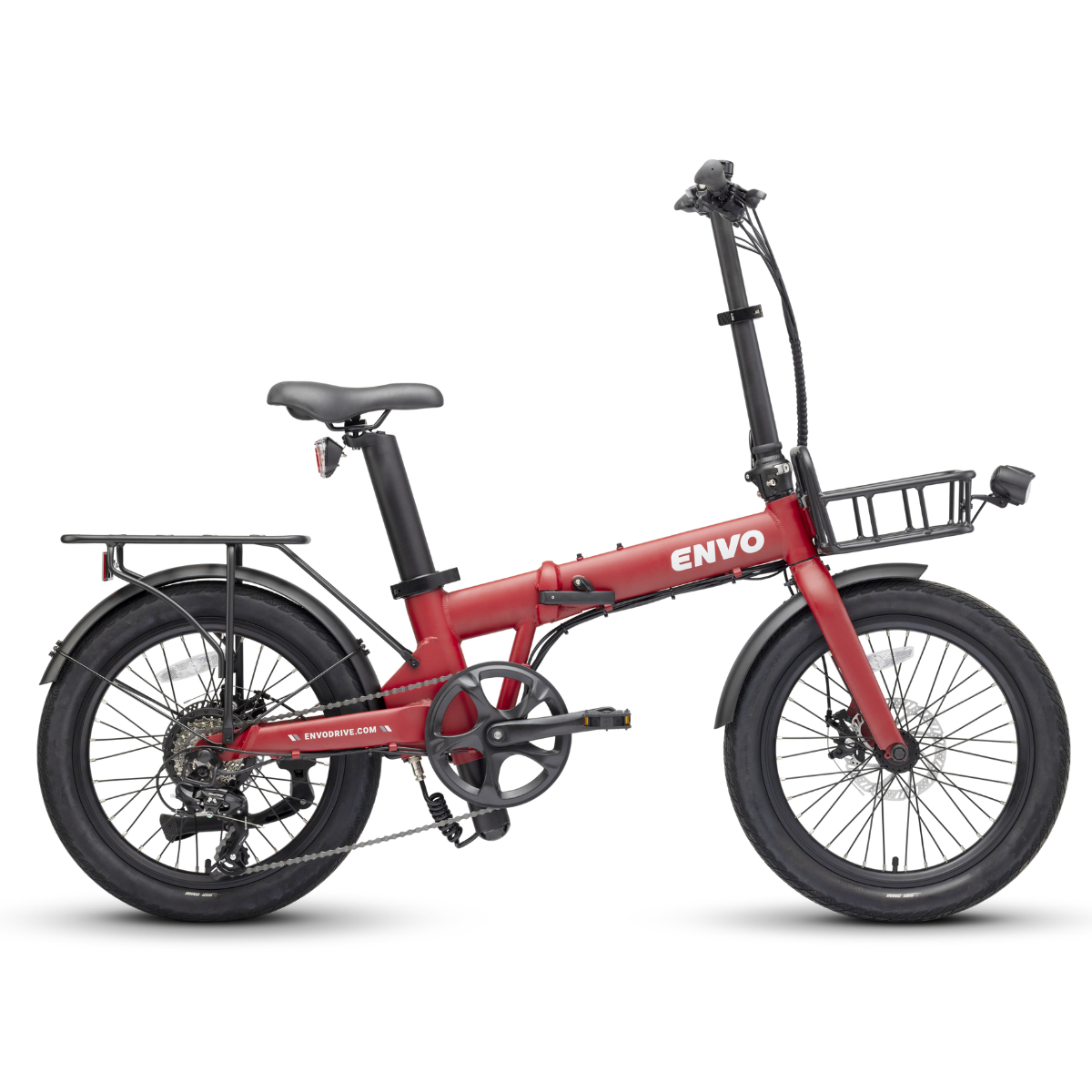

ENVO Lynx 20" Electric Bike
Pairs well with
In stock! Ships within 1-2 business days.
1-Year Warranty
ENVO Lynx 20" Electric Bike
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Speed
32 KM/H
20 MP/H
Max Power
500 W
Rated Range
100 Km
62 Mi
Max Torque
80 Nm
Weight
22.5 kg
49.6 lbs
Foldable commuter

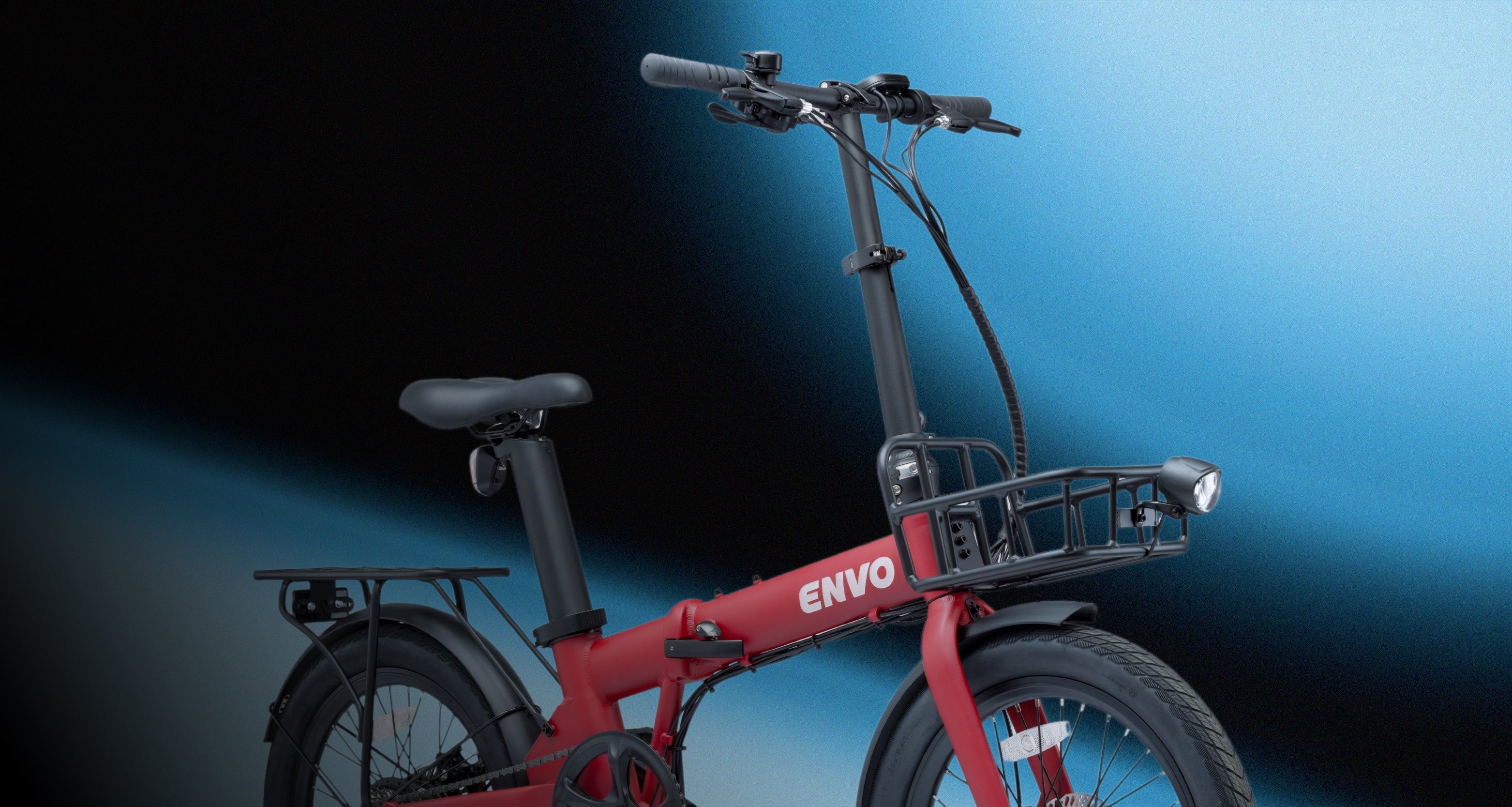

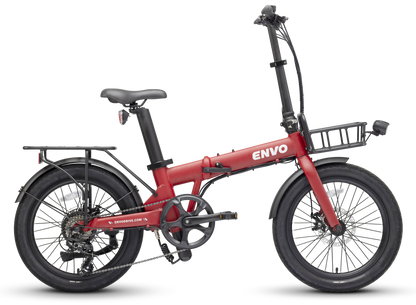

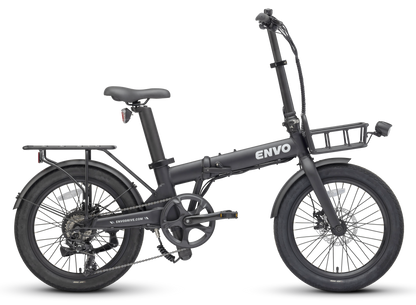

ENVO Lynx 20"
The ergonomic commuter
The Envo Lynx 20" is the ultimate compact electric bike with a sturdy and lightweight aluminum alloy frame designed for riders of 5' to 6'4" heights. With a powerful high-torque motor, and a high-capacity battery, this bike can support riders weighting up to 300 pounds and the range of up to 100Km. The ergonomic design makes it easy to get on and off, while the advanced engineering reduces vibrations and noise. Plus, its compact size makes it easy to transport on any bus, train, or car trunk for a delightful ride on any terrain.
ENVO Lynx is equipped with a sealed, powerful, geared hub motor which offers 500W power and 60Nm torque. The bike is a street legal bike with legalized speed, torque and power all over Canada and US. Our motors are 50% lighter than all the rest powered geared hub motors in Canada, yet they deliver 50% more torque and 25% more battery efficiency. These ENVO motors are developed for over 20,000Km / 12,500miles maintenance free ride.
E-ASSIST SYSTEM
The Lynx has an advanced pedal assist sensor and torque emulation software. It offers 5 levels of pedal assist, on-demand thumb throttle, and LCD interface for monitoring and settings.

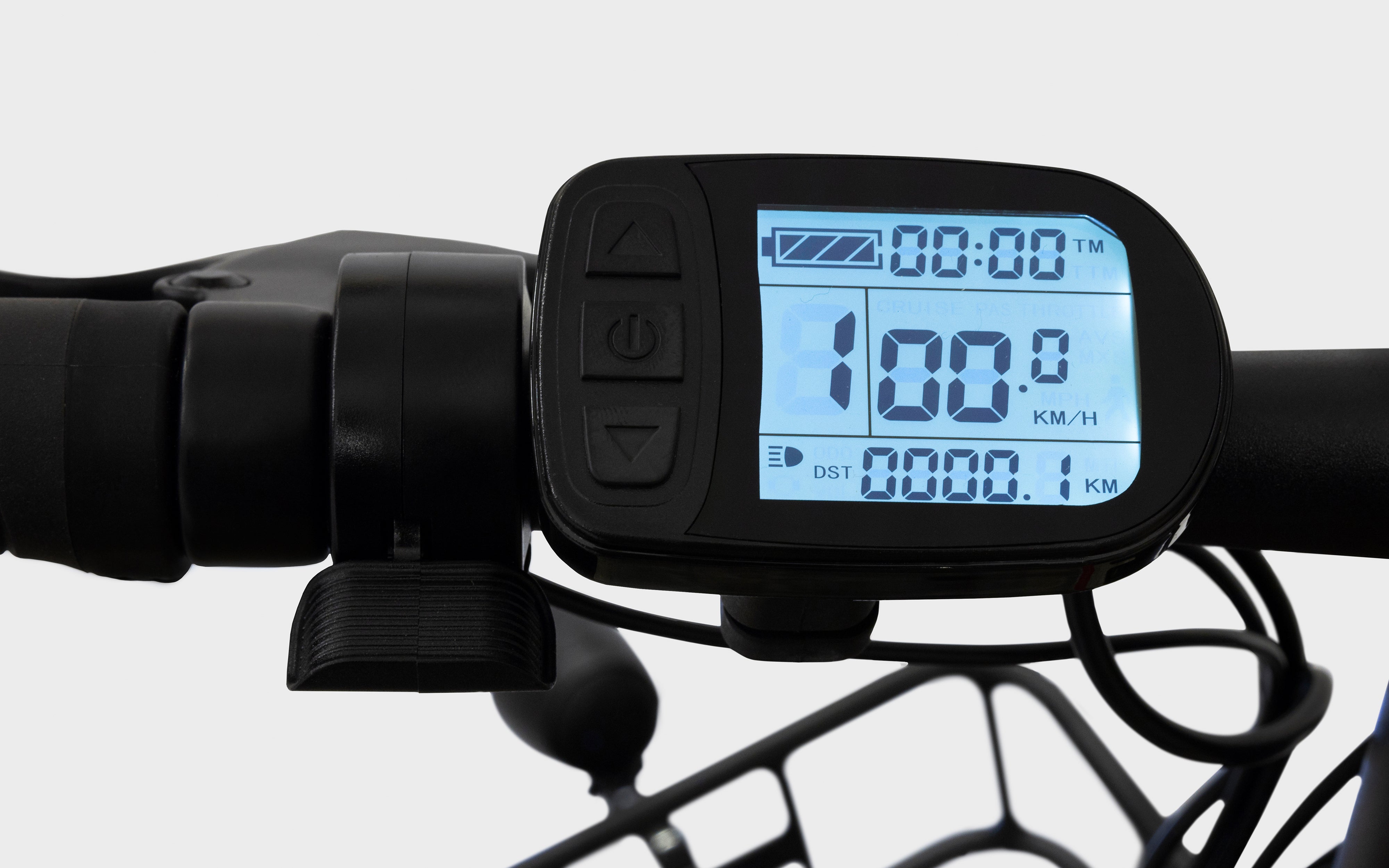

The LCD interface gives the rider access to all monitoring and setting features such as ODO, speed, battery charge level, as well as diagnostics in case of a failure through which you can fix issues yourself using the manuals or with the help of our technical customer service.
Foldable Frame
The ENVO Lynx is built with a solid, super lightweight, stylish and unisex aluminium alloy frame. The frame is suitable for people in all form of heights. It is capable for a rider up to 300lbs and offering an ergonomic shape, which makes it easy for the rider to get on and off. The frame is specially designed to minimize all the vibrations and noise from the drive-system, the wheelbase optimized for most compact foldable size while providing a smooth and stable high speed, pleasurable ride on paved and unpaved roads.
ENVO Lynx 20" Features

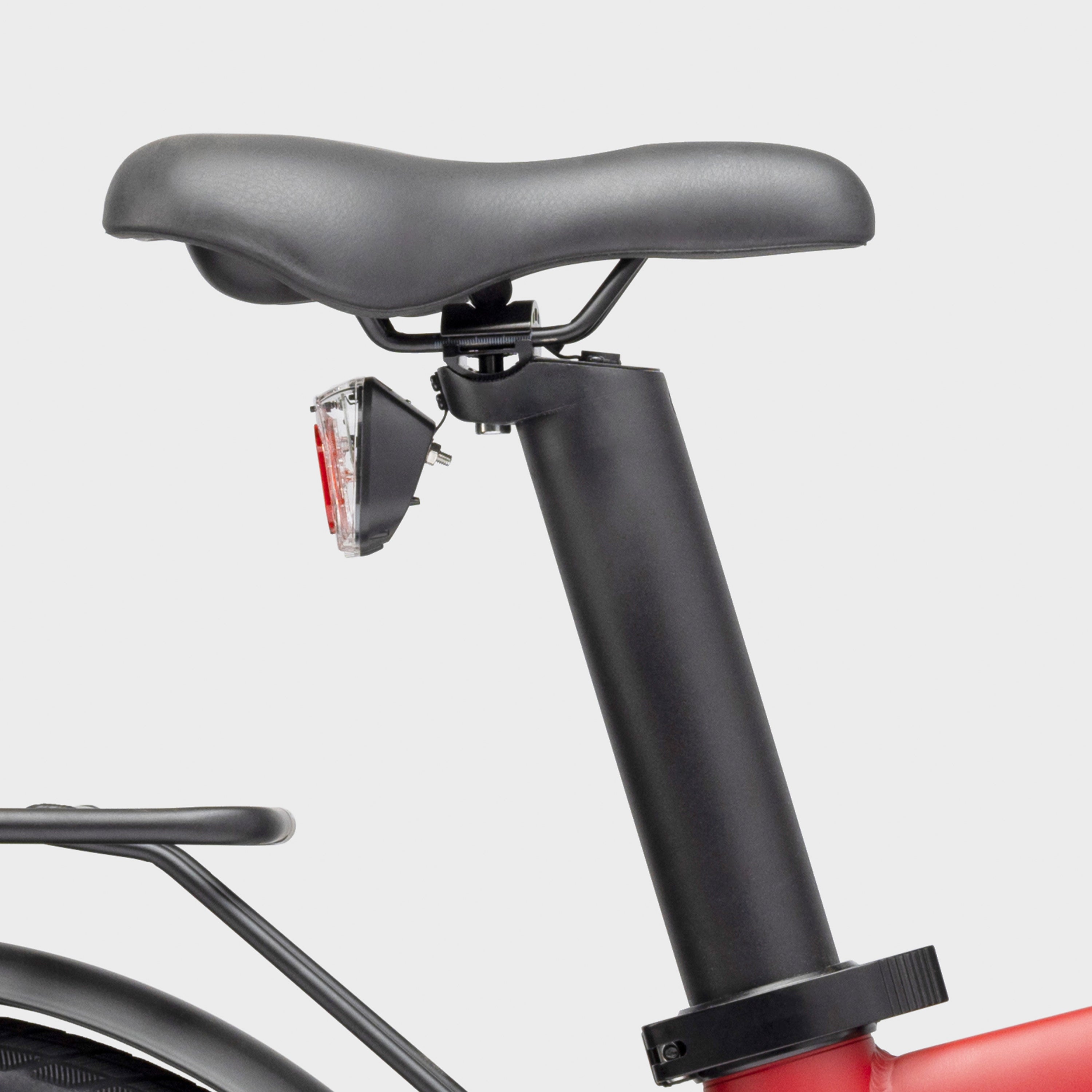

BATTERY PACK
The stylish, removable, high-performance and super reliable A-grade 36V 12.8Ah Li-Ion battery pack gives an average 50Km / 30miles round trip range on level 4-5 of assist or more than 100km / 60miles on level 1-2. Although the battery is hidden in an structural part (seat post) making a clean and minimal design, it is simply accessible for replacement, transport and repairs.

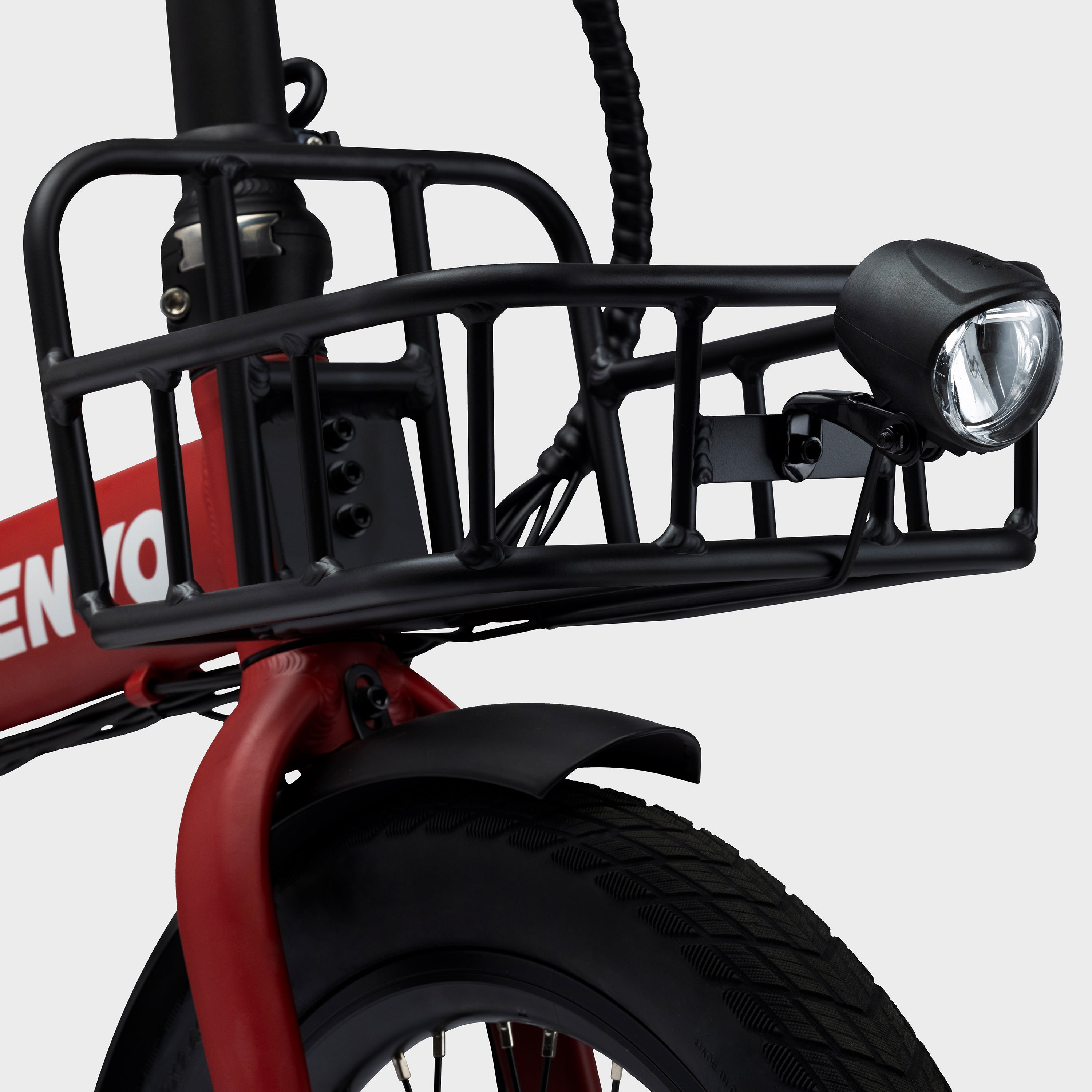

FRONT CARRIER RACK
Make it your utility ebike! You get it all when you buy a ENVO Lynx 20" Experience the ultimate in utility with the ENVO Lynx 20

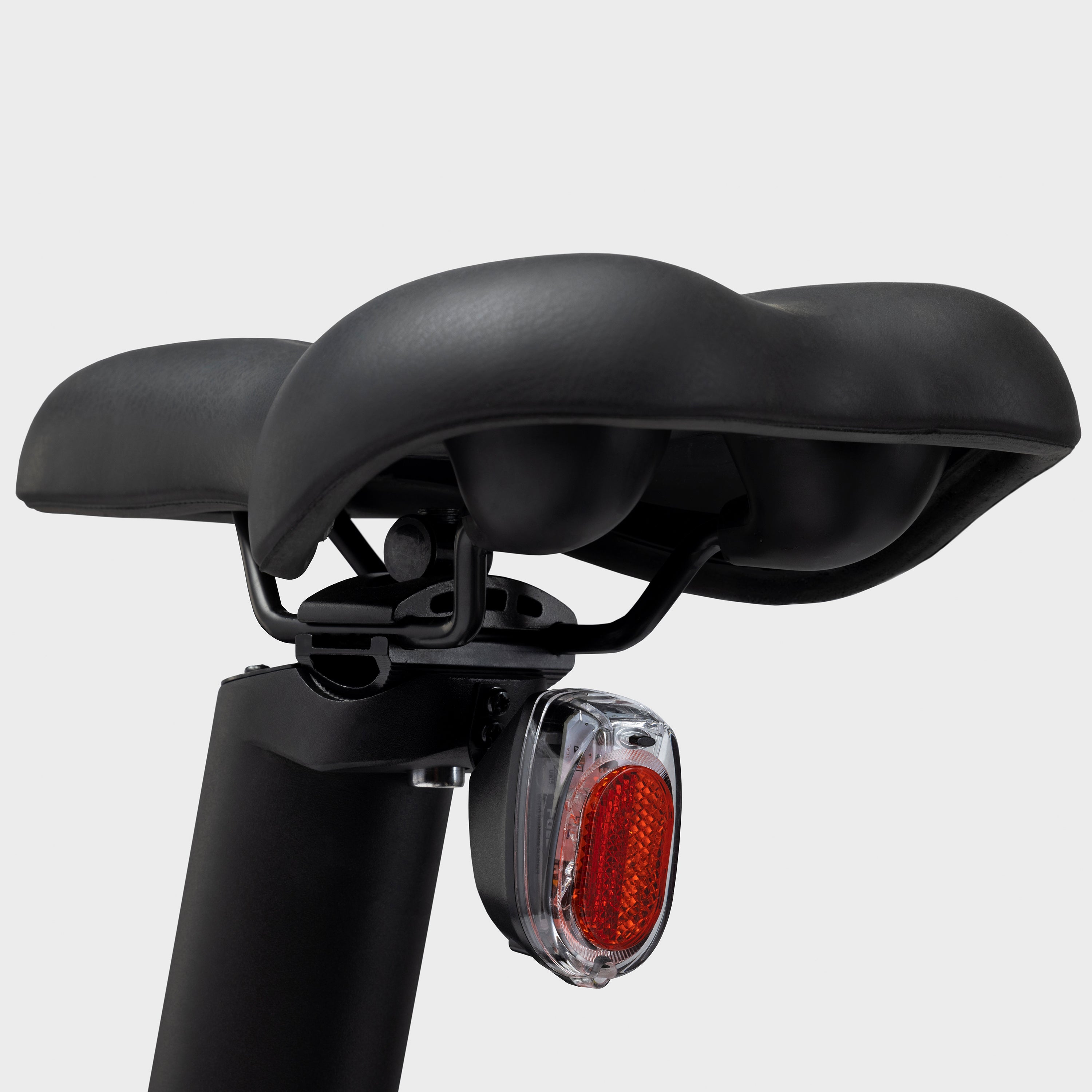

TAILLIGHT
Taillight and reflector provide more safety riding in the dark. It powers up once the headlight is switched on.

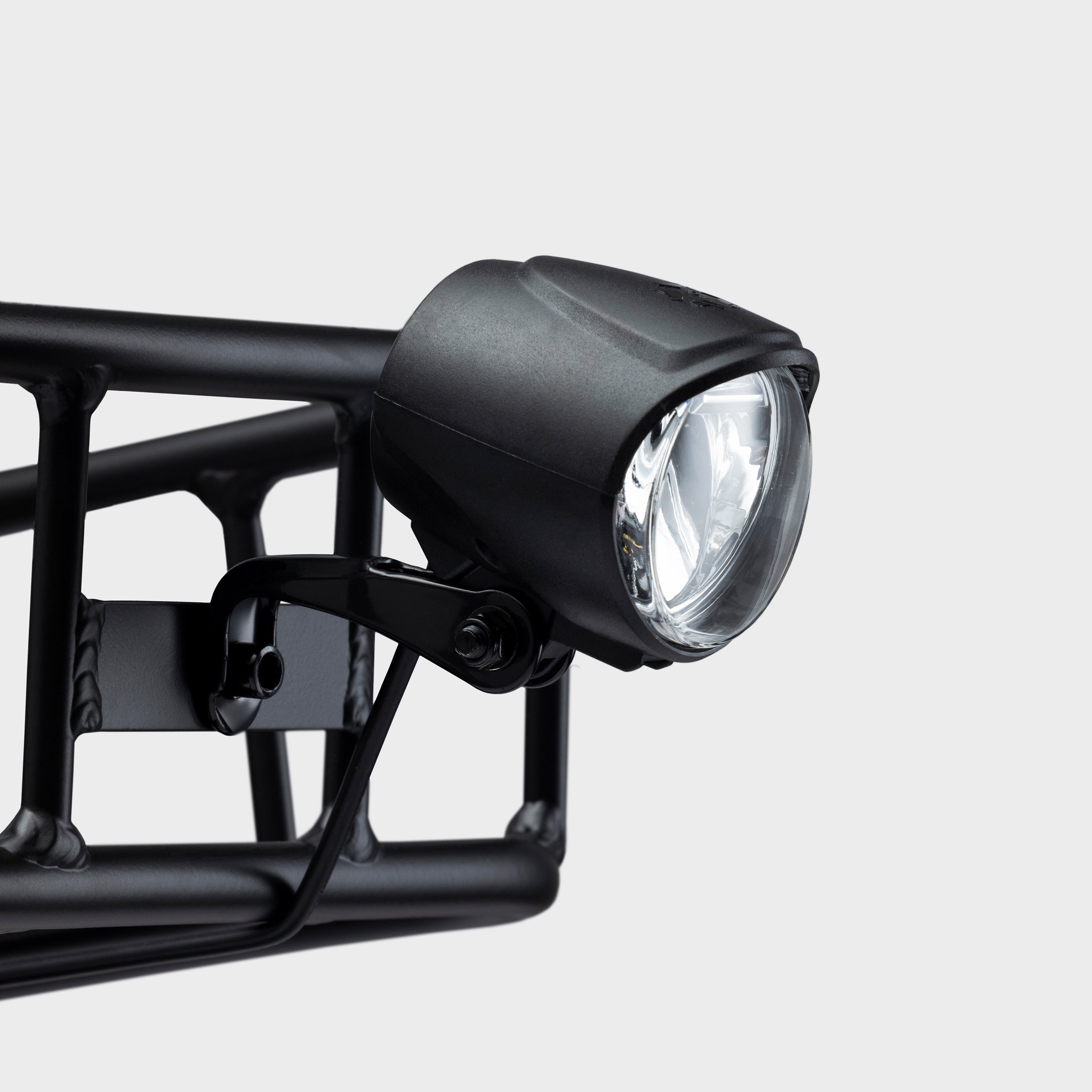

HEADLIGHT
The ENVO Lynx is fitted with high efficiency and bright LED 40 LUX headlight powered by the main battery and controlled by a keypad on the handlebar.

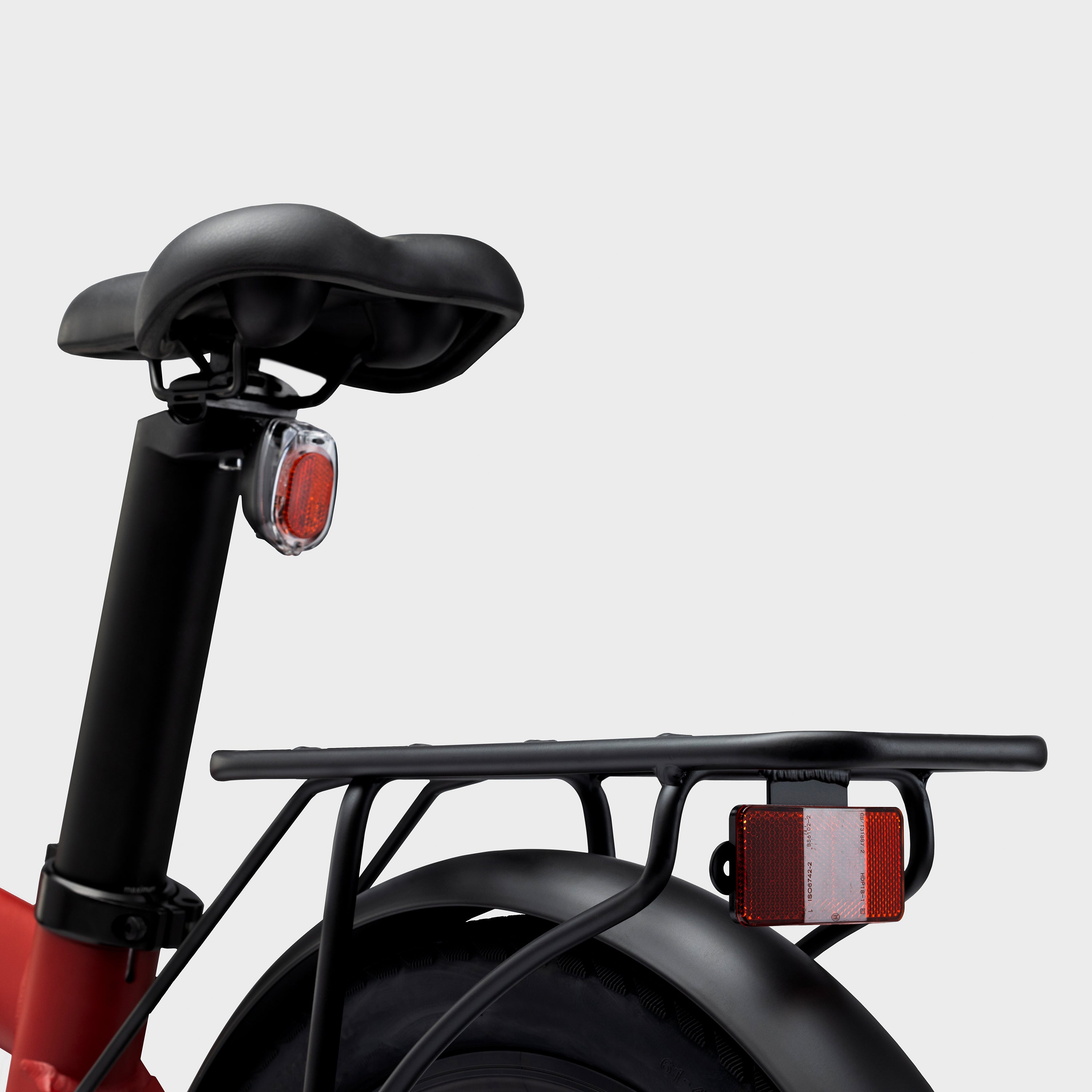

REAR CARRIER RACK
Attach a full-size pannier for errands and commutes.

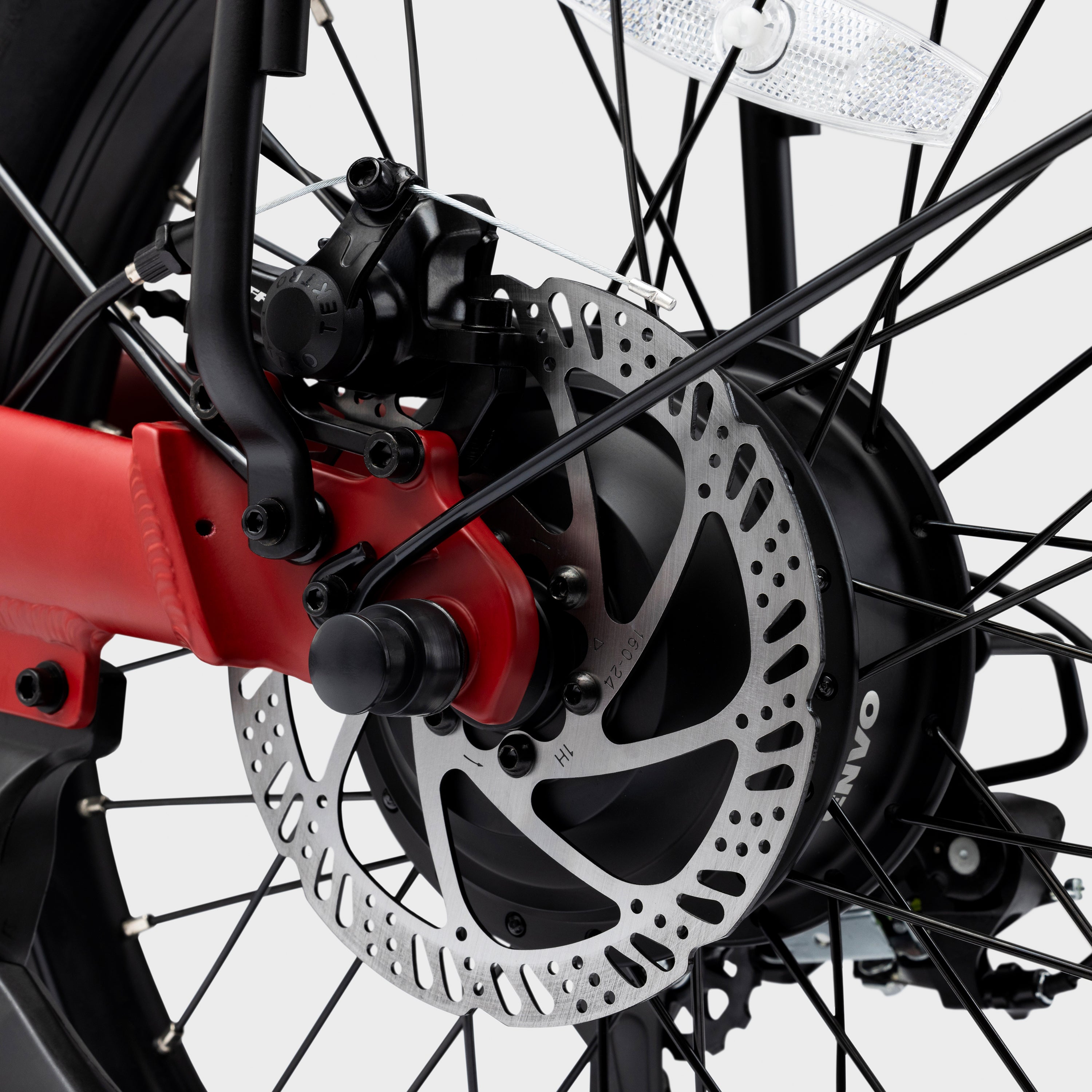

DISK BRAKE
Top of the line 160mm disk brakes are equipped with electric cut-off sensors for more safety.

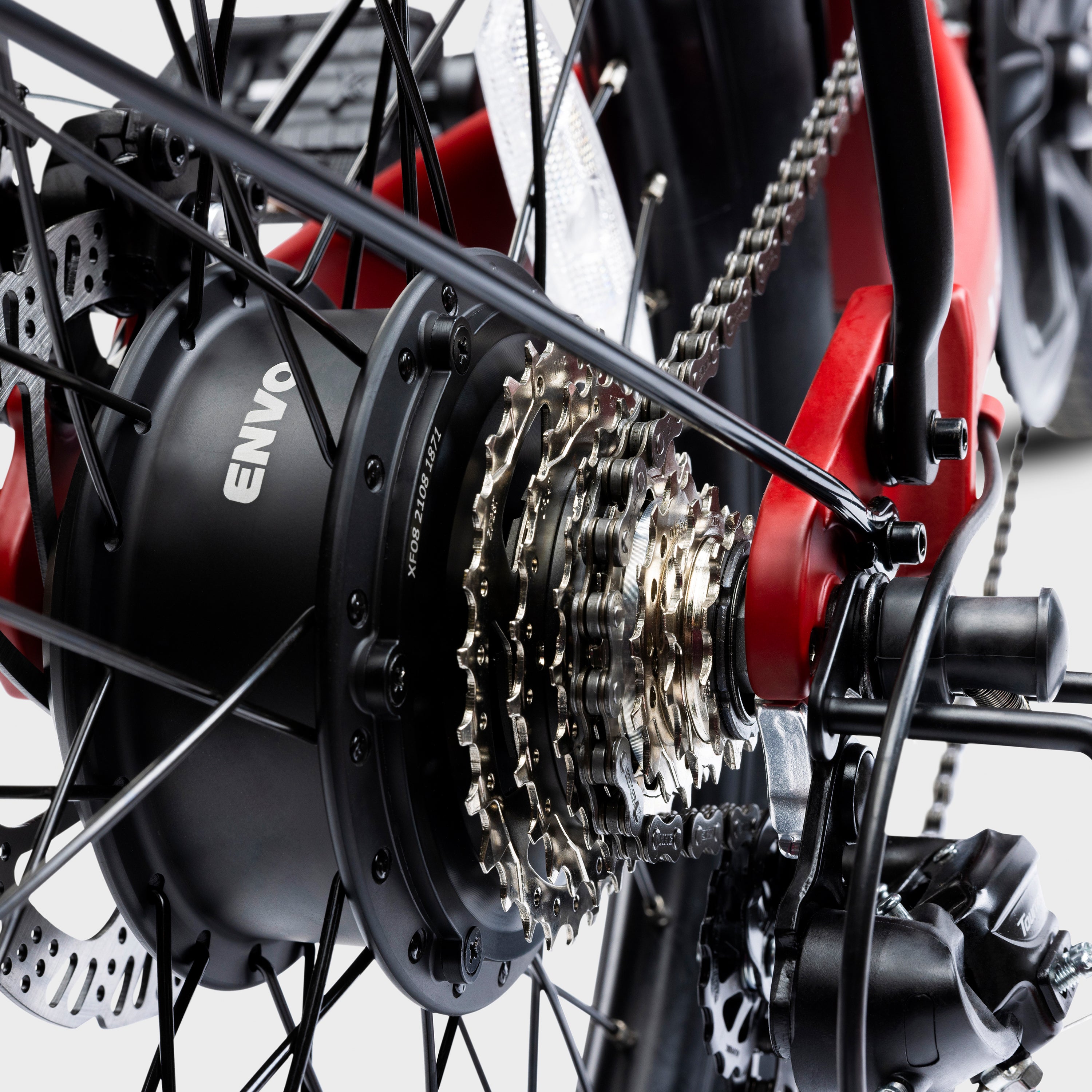

TRANSMISSION
Top of the line 7 speed derailleur and shifter with 52 to 11 gear ratio lets you accompany pedalling gently up to 35km/h / 22mph. Well-engineered 7 speed 28T chain ring and 11-32 cassette Shimano transmission helps you overcome up to 25% grade when climbing a hill on gear 1 or 40km/h / 25mph speed on last with gentle peddling.

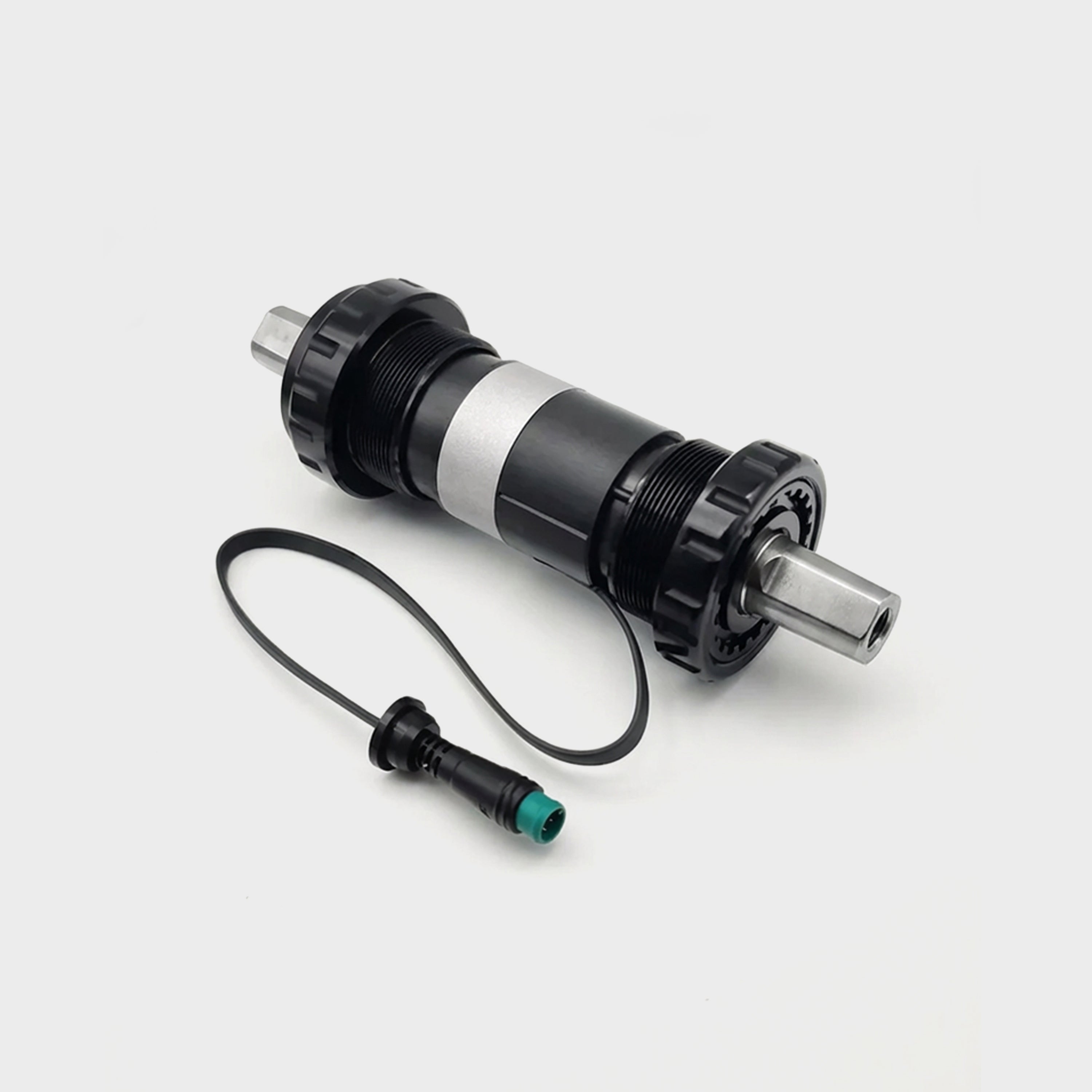

TORQUE SENSOR
Enjoy next-level ride performance with advanced Torque Sensor technology, providing natural, intuitive power delivery.

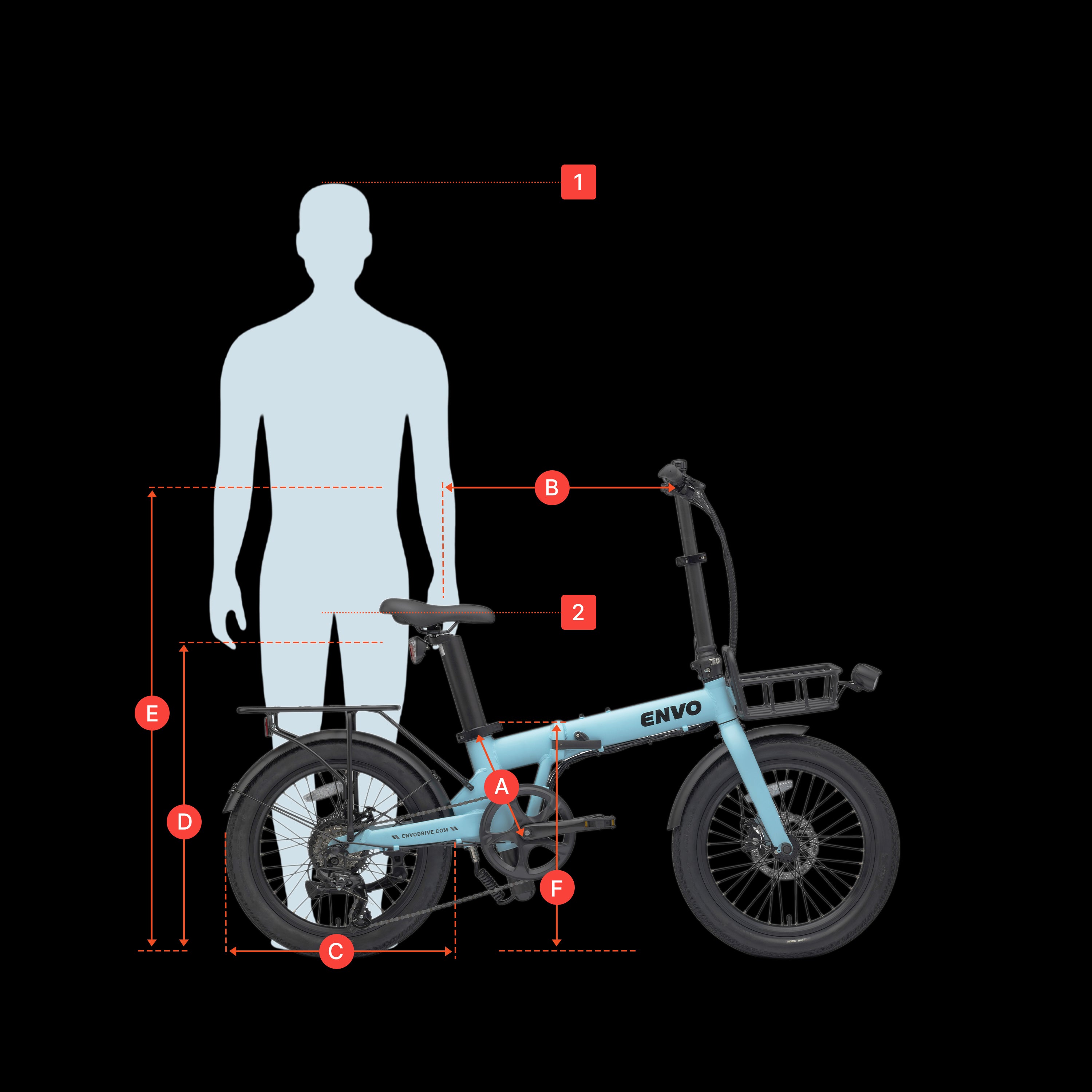

ENVO Lynx 20" Sizing Chart
Measurements
| A | Effective Seat Tube Length | 18.1" | 46.0cm |
| B | Effective Top Tube Length | 23.0" | 58.3cm |
| C | Tire Diameter | 27.5" | 69.9cm |
| D | Minimum Seat Height | 34.2" | 87.0cm |
| E | Maximum Seat Height | 40.1" | 102.0cm |
| F | Stepover Height | 27.1" | 69.0cm |
Sizing Chart
| 1. | Height | 5'5"–6'5" | 1.65–1.95m |
| 2. | Inseam | 30"–37" | 76–93.8cm |
Suitable For People below 130kg weight, up to 190cm (6’4”ft) tall
Review and instructions
ENVO Lynx
Portable Cargo Monster | Electric Bike Review
ENVO LYNX (2020-2022)
Unboxing & Assembly Instructions
Best Foldable E-Bike
Proudly Canadian
Product details
Full Specs
- Frame: Custom Drawn T6-Aluminum Foldable e-bike
- Stem: QR folding, with telescopic height adjustment Brake Levers: 3-Finger
- Cassette / Freewheel: 11-28, 7-Speed Freewheel
- Brake Levers: 3-Finger with cut-off switch
- Seat Post: 50mm Battery container telescopic adjustable
- Chain: TEC,C70
- Sensor: PAS/thumb throttle, speed sensor
- Tire: City 20″ x2.35″
- Motor: Geared hub motor, 500W, 60Nm torque
- Battery: 36V 12.8Ah LG
- Charger: CC-CV 42V 2A
- Controller: 5 levels of assist + Thumb throttle
- Unfolded Dimensions: 168*59*112 CM (66″ x 23″ x 44″)
- Folded Dimensions: 93*48*70 CM (37″ x 19″ x 28″)
